Toyota Lexus lc500/500h(cp) URZ100 STEERING WHEEL

URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999

Engine 2URGSE

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1712- )

Click highlighted areas on diagram

W(STEERING WHEEL HEATER CONTROL)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-11030E2	GWZ100,URZ100 3-SPOKE,LEATHER,OCHRE,TRIM4#	03/2017 - 04/2020	1
45100-11030C2	GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3#	03/2017 - 04/2020	1
45100-11040E1	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45100-11030J1	GWZ100,URZ100 3-SPOKE,LEATHER,BLUE,TRIM8#	03/2017 - 04/2020	1
45100-11060C0	GWZ100,URZ100..GCC 3-SPOKE,LEATHER,"AVIATION"*(D),BLACK & BROWN,TRIM2#	01/2021 - 10/2021	1
45100-11030E4	GWZ100,URZ100 3-SPOKE,LEATHER,ORANGE & BLACK & ORANGE,TRIM42	04/2020 - 12/2999	1
45100-11030E5	GWZ100,URZ100 3-SPOKE,LEATHER,OCHER,TRIM40	04/2020 - 12/2999	1
45100-11030C4	GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3#	04/2020 - 12/2999	1
45102 - WHEEL SUB-ASSY, STEERING
45102-11010E1	GWZ100,URZ100 OCHRE,TRIM4#	03/2017 - 04/2020	1
45102-11010J0	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45102-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#	03/2017 - 12/2999	1
45102-11040E1	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45102-11010E3	GWZ100,URZ100 ORANGE & ORANGE,TRIM42	04/2020 - 12/2999	1
45102-11010E1	GWZ100,URZ100 OCHRE,TRIM40	04/2020 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-11010E5	GWZ100,URZ100 KUROKOHAKU,TRIM41	06/2019 - 04/2020	1
45130-11010C2	GWZ100,URZ100 BLACK,TRIM20,3#	09/2018 - 06/2019	1
45130-11010C2	GWZ100,URZ100 BLACK,TRIM2#,3#	03/2017 - 09/2018	1
45130-11010E2	GWZ100,URZ100 OCHRE,TRIM4#	03/2017 - 06/2019	1
45130-11010C3	GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21	09/2018 - 06/2019	1
45130-11010C5	GWZ100,URZ100 BLACK & BROWN,TRIM21,22	01/2021 - 01/2022	1
45130-11010E6	GWZ100,URZ100 ORANGE & ORANGE,TRIM42	04/2020 - 12/2999	1
45130-11010C2	GWZ100,URZ100 BLACK,TRIM2#,3#	06/2019 - 01/2021	1
45130-11010J1	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45130-11010E2	GWZ100,URZ100 OCHRE,TRIM40	06/2019 - 12/2999	1
45130-11010C2	GWZ100,URZ100..ARL,CHI,GCC BLACK,TRIM20,3#	01/2021 - 12/2999	1
Common parts
90109-18006
90168-40113
Linked diagrams
8401

(1703- )

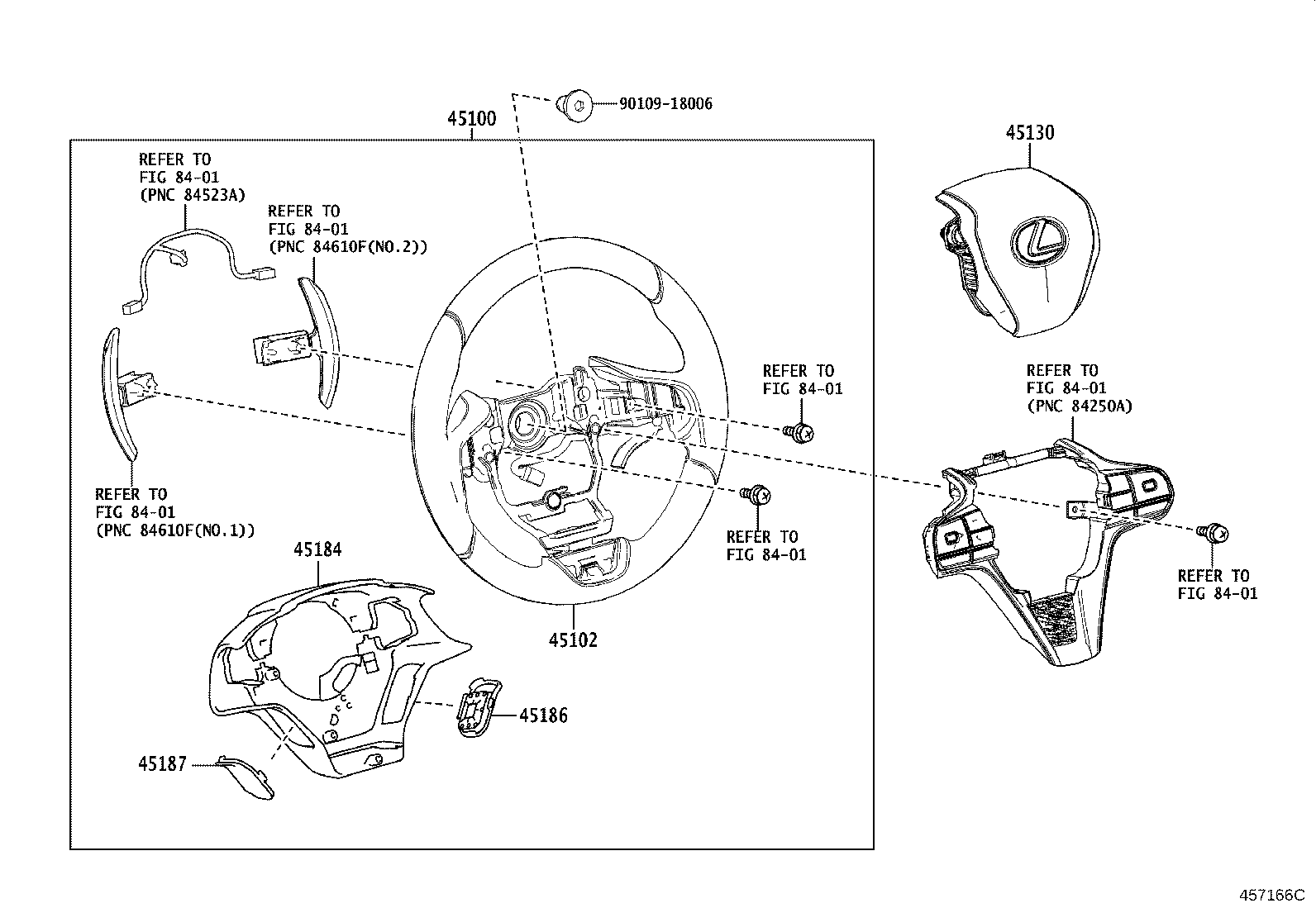

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-11030E2	GWZ100,URZ100 3-SPOKE,LEATHER,OCHRE,TRIM4#	03/2017 - 04/2020	1
45100-11030C2	GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3#	03/2017 - 04/2020	1
45100-11040E1	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45100-11030J1	GWZ100,URZ100 3-SPOKE,LEATHER,BLUE,TRIM8#	03/2017 - 04/2020	1
45100-11060C0	GWZ100,URZ100..GCC 3-SPOKE,LEATHER,"AVIATION"*(D),BLACK & BROWN,TRIM2#	01/2021 - 10/2021	1
45100-11030E4	GWZ100,URZ100 3-SPOKE,LEATHER,ORANGE & BLACK & ORANGE,TRIM42	04/2020 - 12/2999	1
45100-11030E5	GWZ100,URZ100 3-SPOKE,LEATHER,OCHER,TRIM40	04/2020 - 12/2999	1
45100-11030C4	GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3#	04/2020 - 12/2999	1
45102 - WHEEL SUB-ASSY, STEERING
45102-11010E1	GWZ100,URZ100 OCHRE,TRIM4#	03/2017 - 04/2020	1
45102-11010J0	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45102-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#	03/2017 - 12/2999	1
45102-11040E1	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45102-11010E3	GWZ100,URZ100 ORANGE & ORANGE,TRIM42	04/2020 - 12/2999	1
45102-11010E1	GWZ100,URZ100 OCHRE,TRIM40	04/2020 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-11010E5	GWZ100,URZ100 KUROKOHAKU,TRIM41	06/2019 - 04/2020	1
45130-11010C2	GWZ100,URZ100 BLACK,TRIM20,3#	09/2018 - 06/2019	1
45130-11010C2	GWZ100,URZ100 BLACK,TRIM2#,3#	03/2017 - 09/2018	1
45130-11010E2	GWZ100,URZ100 OCHRE,TRIM4#	03/2017 - 06/2019	1
45130-11010C3	GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21	09/2018 - 06/2019	1
45130-11010C5	GWZ100,URZ100 BLACK & BROWN,TRIM21,22	01/2021 - 01/2022	1
45130-11010E6	GWZ100,URZ100 ORANGE & ORANGE,TRIM42	04/2020 - 12/2999	1
45130-11010C2	GWZ100,URZ100 BLACK,TRIM2#,3#	06/2019 - 01/2021	1
45130-11010J1	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45130-11010E2	GWZ100,URZ100 OCHRE,TRIM40	06/2019 - 12/2999	1
45130-11010C2	GWZ100,URZ100..ARL,CHI,GCC BLACK,TRIM20,3#	01/2021 - 12/2999	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-11010J0	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45184-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#,42	03/2017 - 12/2999	1
45184-11010E1	GWZ100,URZ100 OCHRE,TRIM40	03/2017 - 12/2999	1
45184-11010E3	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-11010J0	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45186-11010E3	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45186-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#,42	03/2017 - 12/2999	1
45186-11010E1	GWZ100,URZ100 OCHRE,TRIM40	03/2017 - 12/2999	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-11010J0	GWZ100,URZ100 BLUE,TRIM8#	03/2017 - 04/2020	1
45187-11010E3	URZ100..GCC STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 05/2020	1
45187-11010E1	GWZ100,URZ100 OCHRE,TRIM40	03/2017 - 12/2999	1
45187-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#,42	03/2017 - 12/2999	1
Common parts
90109-18006
Linked diagrams
8401
