URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Mar 2017
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1703- )URZ100

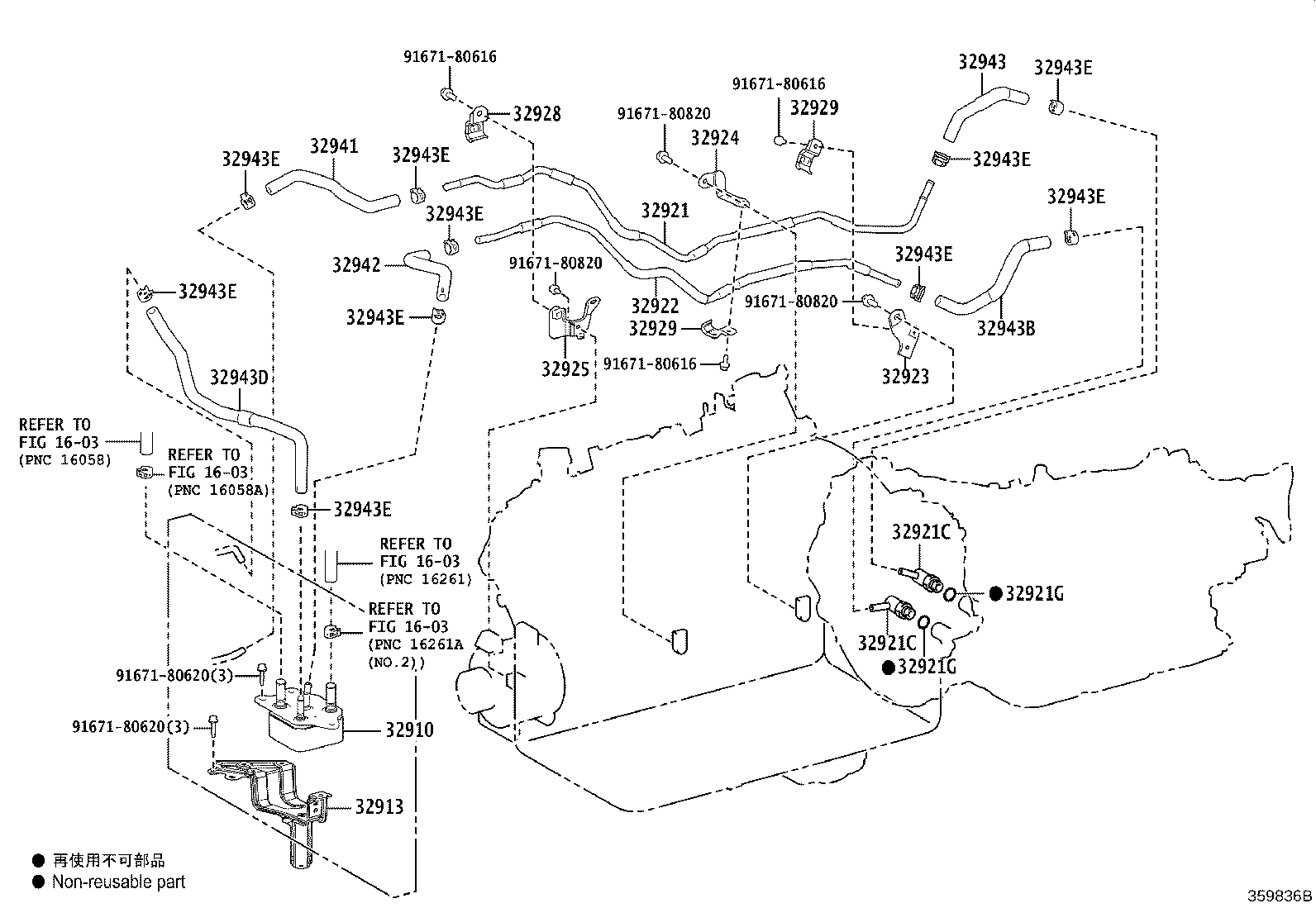

Click highlighted areas on diagram
AGA0E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32910 - COOLER ASSY, OIL | ||||
| 32910-11010 |
URZ100 |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-11020 |
URZ100 |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-11010 |
URZ100 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14034 |
URZ100 |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14034 |
URZ100 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
URZ100 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
URZ100 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-11010 |
URZ100 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-11010 |
URZ100 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-11010 |
URZ100 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-11010 |
URZ100 |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-11020 |
URZ100 |
1 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-30180 |
URZ100 |
2 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-30180 |
URZ100 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-11040 |
URZ100 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-11040 |
URZ100 |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-11020 |
URZ100 |
1 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-11030 |
URZ100 |
1 | ||
| 32943D - HOSE, TRANSMISSION OIL COOLER, NO.4 | ||||
| 32943-11040 |
URZ100 |
1 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URZ100 |
10 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
