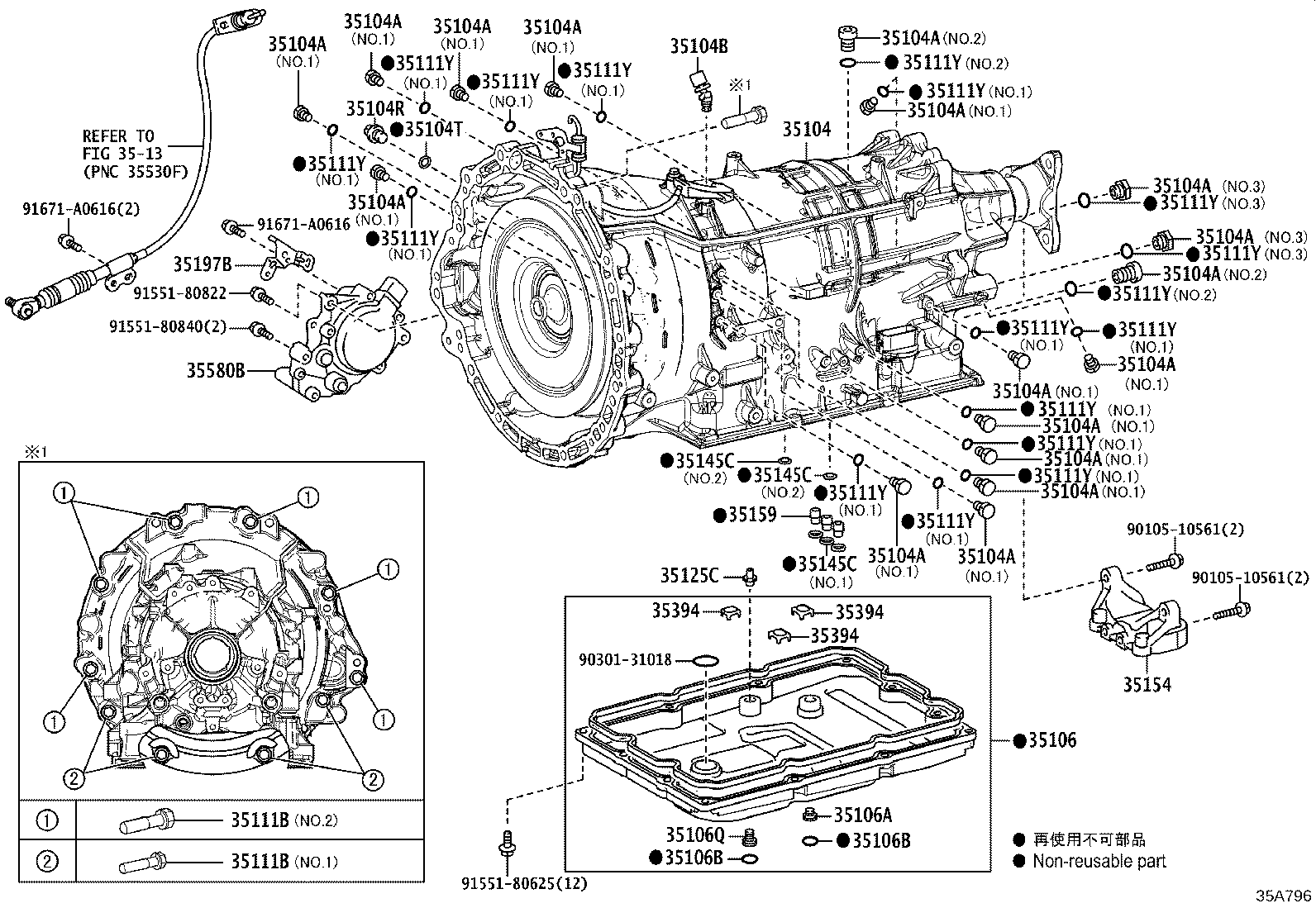

URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)
(1703- )URZ100
AGA0E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-11010 |
URZ100 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-14011 |
URZ100 NO.2 |
2 | ||
| 90341-08001 |
URZ100 NO.1 |
13 | ||
| 90341-18059 |
URZ100 NO.3 |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03238 |
URZ100 |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-18060 |
URZ100 |
1 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-18008 |
URZ100 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-11020 |
URZ100 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-12039 |
URZ100 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90301-17022 |
URZ100 |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90301-17022 |
URZ100 |
2 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-12039 |
URZ100 |
1 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 90119-10260 |
URZ100 *10-1.25PX43-30,NO.1 |
4 | ||
| 91619-61250 |
URZ100 *12-1.25PX50-30,NO.2 |
6 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 90119-10260 |
URZ100 *10-1.25PX43-30,NO.1 |
4 | ||
| 91619-61250 |
URZ100 *12-1.25PX50-30,NO.2 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
URZ100 NO.1 |
13 | ||
| 90301-11030 |
URZ100 NO.2 |
2 | ||
| 90301-15004 |
URZ100 NO.3 |
2 | ||
| 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 | ||||
| 35125-11020 |
URZ100 |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-11020 |
URZ100 NO.1 |
3 | ||
| 35145-60020 |
URZ100 NO.2 |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-11020 |
URZ100 NO.1 |
3 | ||
| 35145-60020 |
URZ100 NO.2 |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-11020 |
URZ100 NO.1 |
3 | ||
| 35145-60020 |
URZ100 NO.2 |
2 | ||
| 35154 - ADAPTER, TRANSMISSION CASE | ||||
| 35154-11010 |
URZ100 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-11010 |
URZ100 |
3 | ||
| 35197B - BRACKET, HEAT INSULATOR, NO.2 | ||||
| 35197-11010 |
URZ100 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-11010 |
URZ100 |
3 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-11010 |
URZ100 |
3 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-11010 |
URZ100 |
3 | ||
| 35580B - ACTUATOR ASSY, SHIFT CONTROL | ||||
| 35580-11010 |
URZ100..GCC |
1 | ||
| 35580-10010 |
URZ100..GCC |
1 | ||
| Common parts | ||||
| 90105-10561 | ||||
| 90301-31018 | ||||
| 91551-80625 | ||||
| 91551-80822 | ||||
| 91551-80840 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 3513 | ||||
