URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)

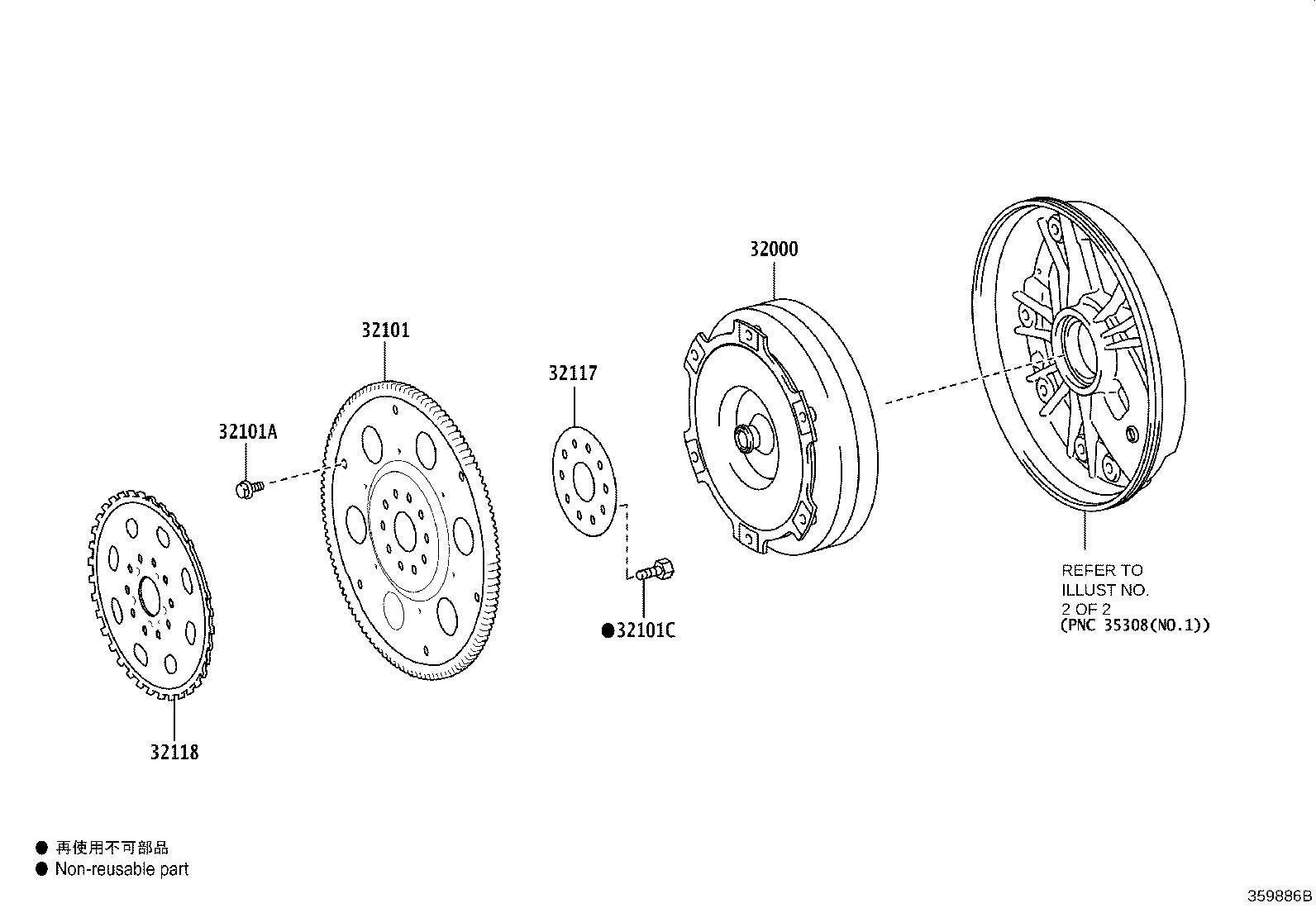

ILLUST NO. 1 OF 2(1703- )URZ100
AGA0E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-11010 |
URZ100 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-24020 |
URZ100 |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-10547 |
URZ100 *10-1.5PX12.8-9.7,BLACK |
1 | ||
| 90105-10340 |
URZ100 *10-1.5PX12.8-9.8,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90910-A2002 |
URZ100 *10-1.25PX23-16,(L) |
1 | ||
| 90910-02129 |
URZ100 *10-1.25PX23-16,(J) |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-34010 |
URZ100 |
1 | ||
| 32118 - ROTOR, CRANKSHAFT ANGLE SENSOR | ||||
| 32118-24010 |
URZ100 |
1 | ||

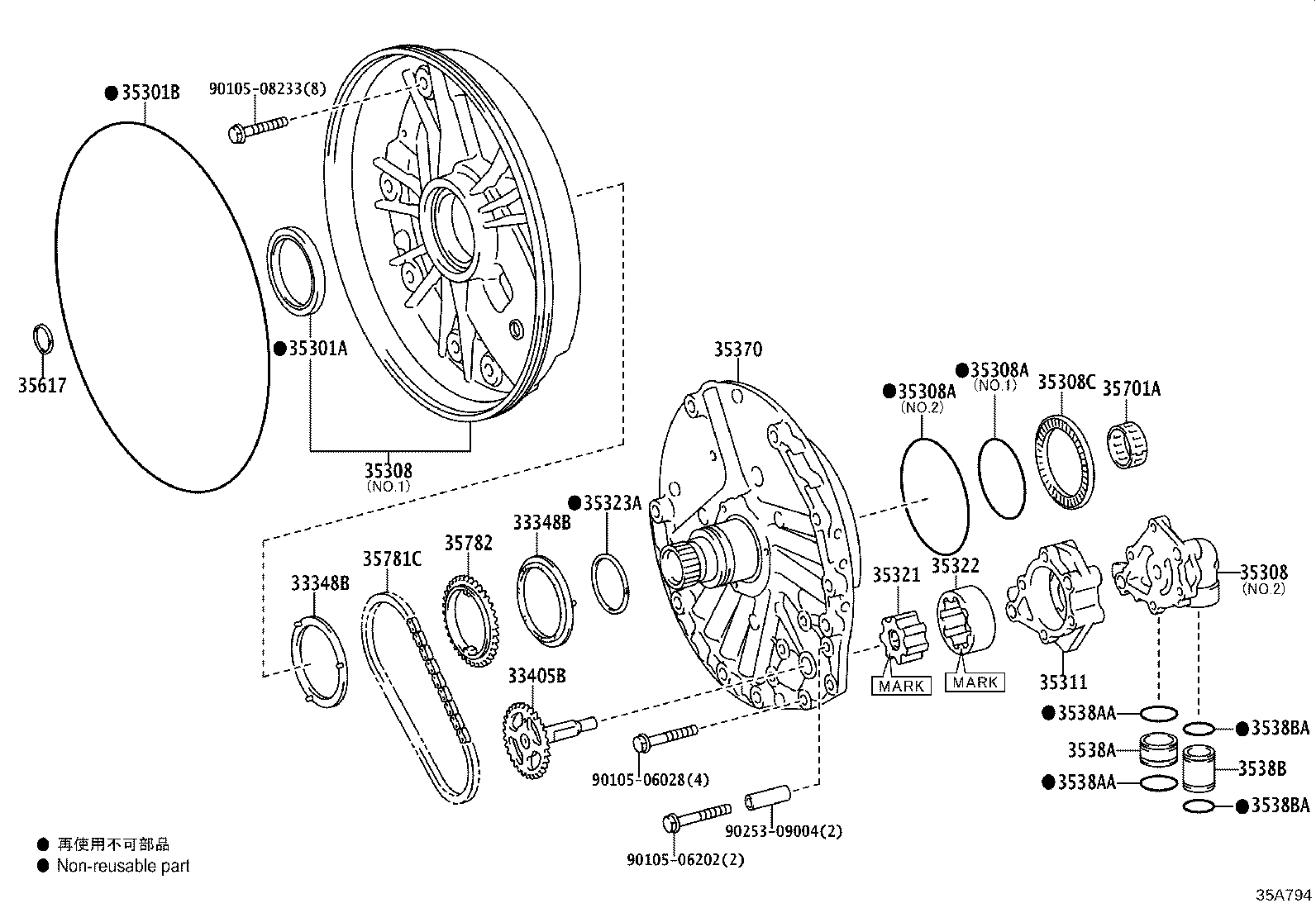

ILLUST NO. 2 OF 2(1703- )URZ100
AGA0E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33348B - WASHER, GEAR THRUST | ||||
| 33348-11020 |
URZ100 |
2 | ||
| 33348B - WASHER, GEAR THRUST | ||||
| 33348-11020 |
URZ100 |
2 | ||
| 33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE | ||||
| 33405-11020 |
URZ100 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-54007 |
URZ100 |
1 | ||
| 90311-54007 |
URZ100..GCC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99228 |
URZ100 |
1 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-11020 |
URZ100 NO.2 |
1 | ||
| 35308-11030 |
URZ100 NO.1 |
1 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-11020 |
URZ100 NO.2 |
1 | ||
| 35308-11030 |
URZ100 NO.1 |
1 | ||
| 35308A - SEAL, OIL (FOR FRONT OIL PUMP COVER) | ||||
| 90301-60005 |
URZ100 NO.1 |
1 | ||
| 90301-87004 |
URZ100 NO.2 |
1 | ||
| 35308A - SEAL, OIL (FOR FRONT OIL PUMP COVER) | ||||
| 90301-60005 |
URZ100 NO.1 |
1 | ||
| 90301-87004 |
URZ100 NO.2 |
1 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 90374-57008 |
URZ100 OD=75.0 |
1 | ||
| 35311 - BODY, FRONT OIL PUMP | ||||
| 35311-11020 |
URZ100 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-11100 |
URZ100 T=19.478-19.483,MARK C |
1 | ||
| 35321-11040 |
URZ100 T=19.475-19.480,MARK A |
1 | ||
| 35321-11100 |
URZ100..GCC T=19.478-19.483,MARK C |
1 | ||
| 35321-11050 |
URZ100 T=19.481-19.486,MARK B |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-11100 |
URZ100..GCC T=19.478-19.483,MARK C |
1 | ||
| 35322-11040 |
URZ100 T=19.475-19.480,MARK A |
1 | ||
| 35322-11050 |
URZ100 T=19.481-19.486,MARK B |
1 | ||
| 35322-11100 |
URZ100 T=19.478-19.483,MARK C |
1 | ||
| 35323A - RING(FOR OIL SEAL) | ||||
| 35323-11010 |
URZ100 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-11050 |
URZ100 |
1 | ||
| 35370-11030 |
URZ100 MARK=BLUE |
1 | ||
| 3538A - PIPE, OIL PUMP SUCTION | ||||
| 3538A-11010 |
URZ100 |
1 | ||
| 3538AA - RING, O(FOR OIL PUMP SUCTION PIPE) | ||||
| 90301-25010 |
URZ100 |
2 | ||
| 90301-25022 |
URZ100 |
2 | ||
| 3538AA - RING, O(FOR OIL PUMP SUCTION PIPE) | ||||
| 90301-25010 |
URZ100 |
2 | ||
| 90301-25022 |
URZ100 |
2 | ||
| 3538B - PIPE, OIL PUMP DELIVERY | ||||
| 3538B-11010 |
URZ100 |
1 | ||
| 3538BA - RING, O(FOR OIL PUMP DELIVERY PIPE) | ||||
| 90301-18016 |
URZ100 |
2 | ||
| 3538BA - RING, O(FOR OIL PUMP DELIVERY PIPE) | ||||
| 90301-18016 |
URZ100 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-11030 |
URZ100 |
1 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90364-30016 |
URZ100 |
1 | ||
| 35781C - CHAIN, TRANSMISSION DRIVE | ||||
| 35781-11010 |
URZ100 |
1 | ||
| 35782 - SPROCKET, DRIVE | ||||
| 35782-11020 |
URZ100 |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-06202 | ||||
| 90105-08233 | ||||
| 90253-09004 | ||||
