URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2URGSE

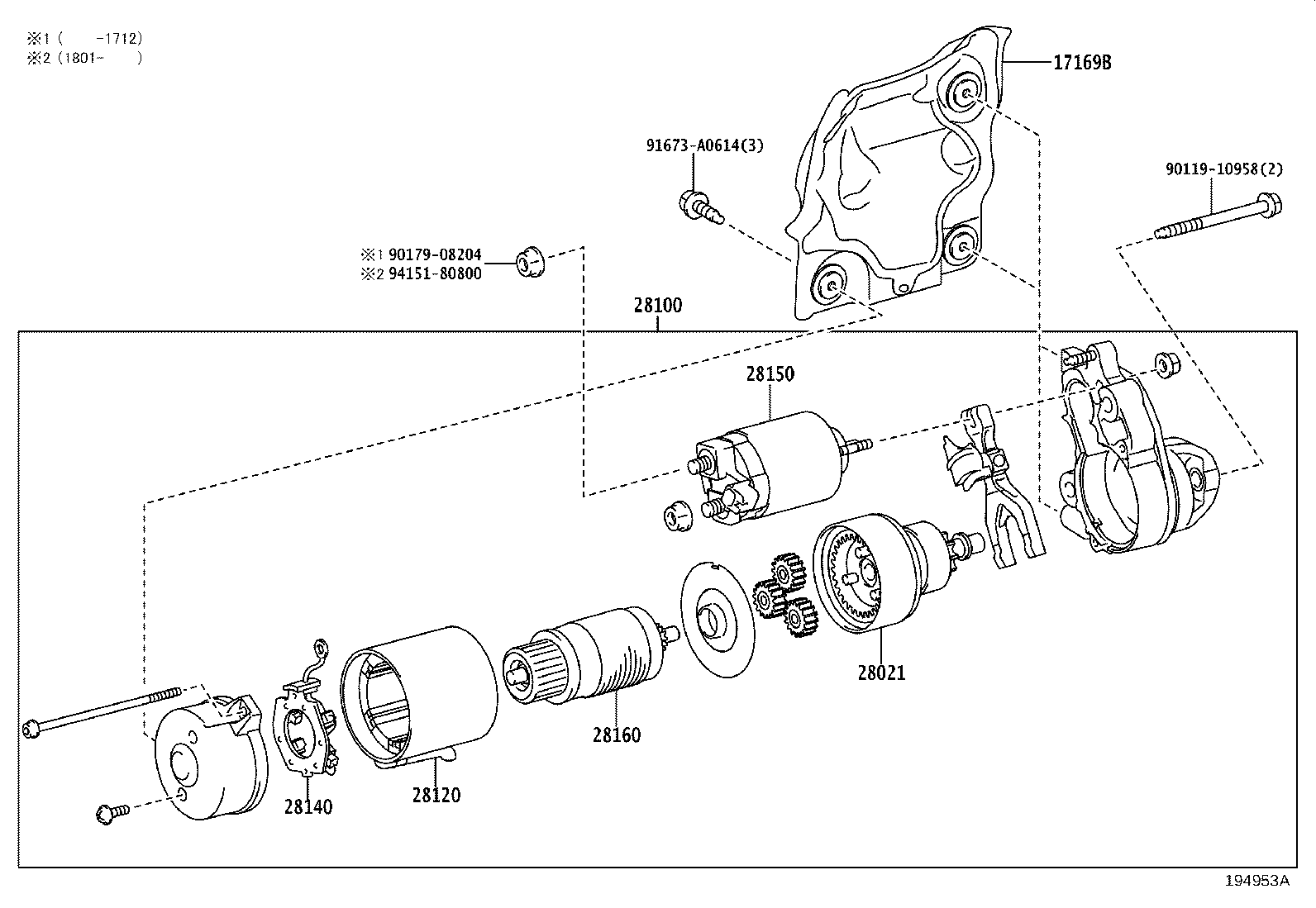

Click highlighted areas on diagram

12V 2.0KW

diagram 17169B 28021 28100 28120 28140 28150 28160 9011910958 9017908204 91673A0614 9415180800
Part # Description Qty Price
17169B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-38030

2URGSE..URZ100

 1
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-75210

2URGSE..URZ100

 1
28100 - STARTER ASSY
28100-38091

2URGSE..URZ100

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-38090

2URGSE..URZ100

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-38070

2URGSE..URZ100

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-38061

2URGSE..URZ100

 1
28160 - ARMATURE ASSY, STARTER
28160-38080

2URGSE..URZ100

 1
28160-36110

2URGSE..URZ100

 1
28160-38070

2URGSE..URZ100

 1
Common parts
90119-10958
90179-08204
91673-A0614
94151-80800
