URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2URGSE

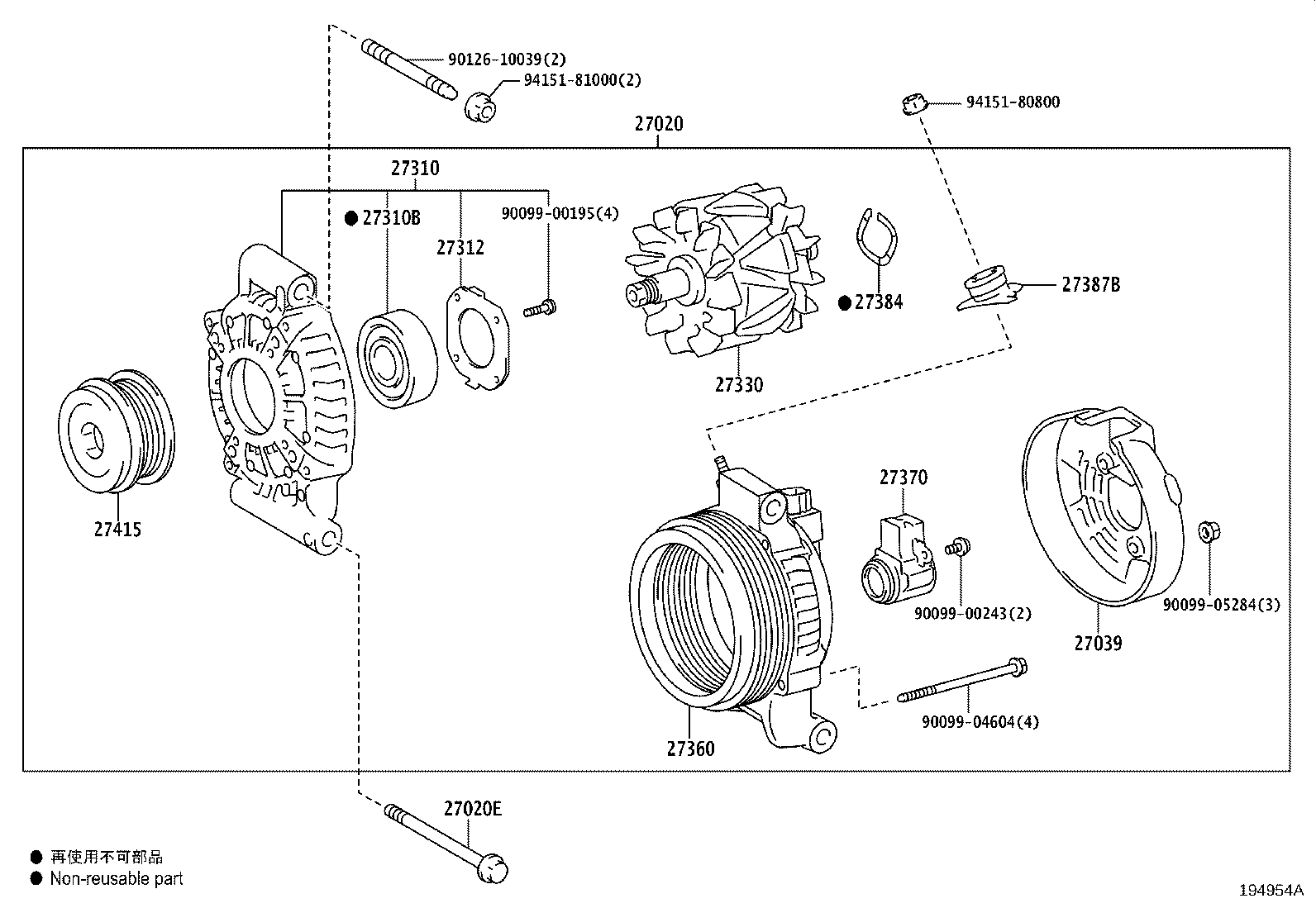

Click highlighted areas on diagram

12V 180A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387B 27415 9009900195 9009900243 9009904604 9009905284 9012610039 9415180800 9415181000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-38170

2URGSE..URZ100

12V 180A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10557

2URGSE..URZ100

 2
27039 - COVER, ALTERNATOR REAR END
27039-38150

2URGSE..URZ100

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38250

2URGSE..URZ100

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10226

2URGSE..URZ100

 1
27312 - PLATE, RETAINER
27312-42010

2URGSE..URZ100

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-38140

2URGSE..URZ100

 1
27360 - COIL ASSY, ALTERNATOR
27360-38250

2URGSE..URZ100

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

2URGSE..URZ100

 1
27384 - WASHER
27384-38130

2URGSE..URZ100

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-38130

2URGSE..URZ100

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-38010

2URGSE..URZ100

 1
Common parts
90099-00195
90099-00243
90099-04604
90099-05284
90126-10039
94151-80800
94151-81000
