URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1703- )2URGSE

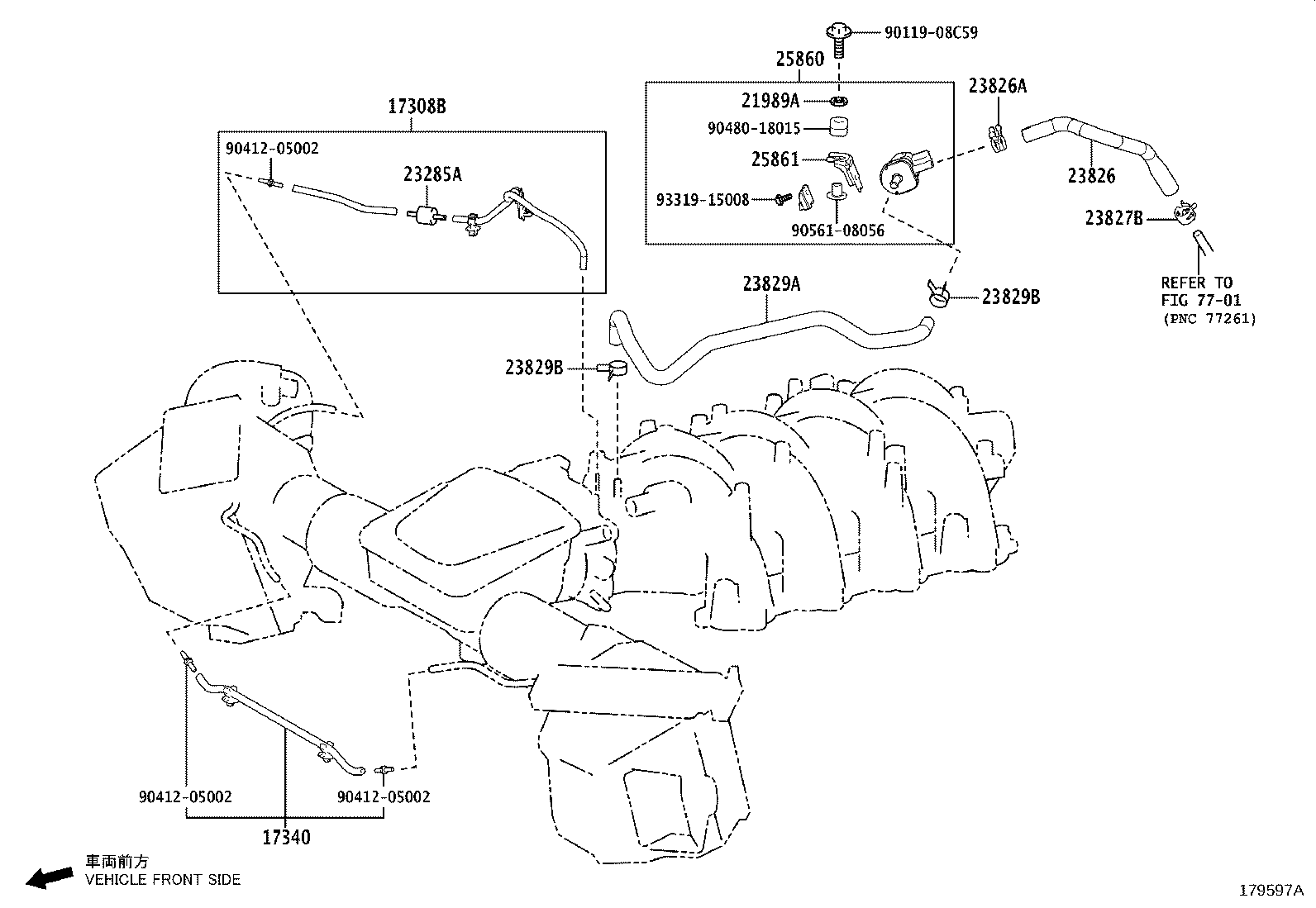

Click highlighted areas on diagram

INTAKE AIR SURGE TANK SIDE

diagram 17308B 17340 21989A 23285A 23826 23826A 23827B 23829A 23829B 23829B 25860 25861 7701 9011908C59 9041205002 9041205002 9041205002 9048018015 9056108056 9331915008
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
17308-38020

2URGSE..URZ100

 1
17340 - HOSE ASSY, VACUUM SWITCHING VALVE
17340-38040

2URGSE..URZ100

 1
21989A - INSULATOR, PLATE
21989-38010

2URGSE..URZ100

 1
23285A - VALVE, CHECK, NO.1
90917-10065

2URGSE..URZ100

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-38040

2URGSE..URZ100

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

2URGSE..URZ100

 1
96133-41301

2URGSE..URZ100

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96136-41801

2URGSE..URZ100

 1
23829A - HOSE, FUEL VAPOR FEED
23829-38070

2URGSE..URZ100

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2URGSE..URZ100

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2URGSE..URZ100

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-38030

2URGSE..URZ100

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-38010

2URGSE..URZ100

 1
Common parts
90119-08C59
90412-05002
90480-18015
90561-08056
93319-15008
Linked diagrams
7701
