URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2URGSE

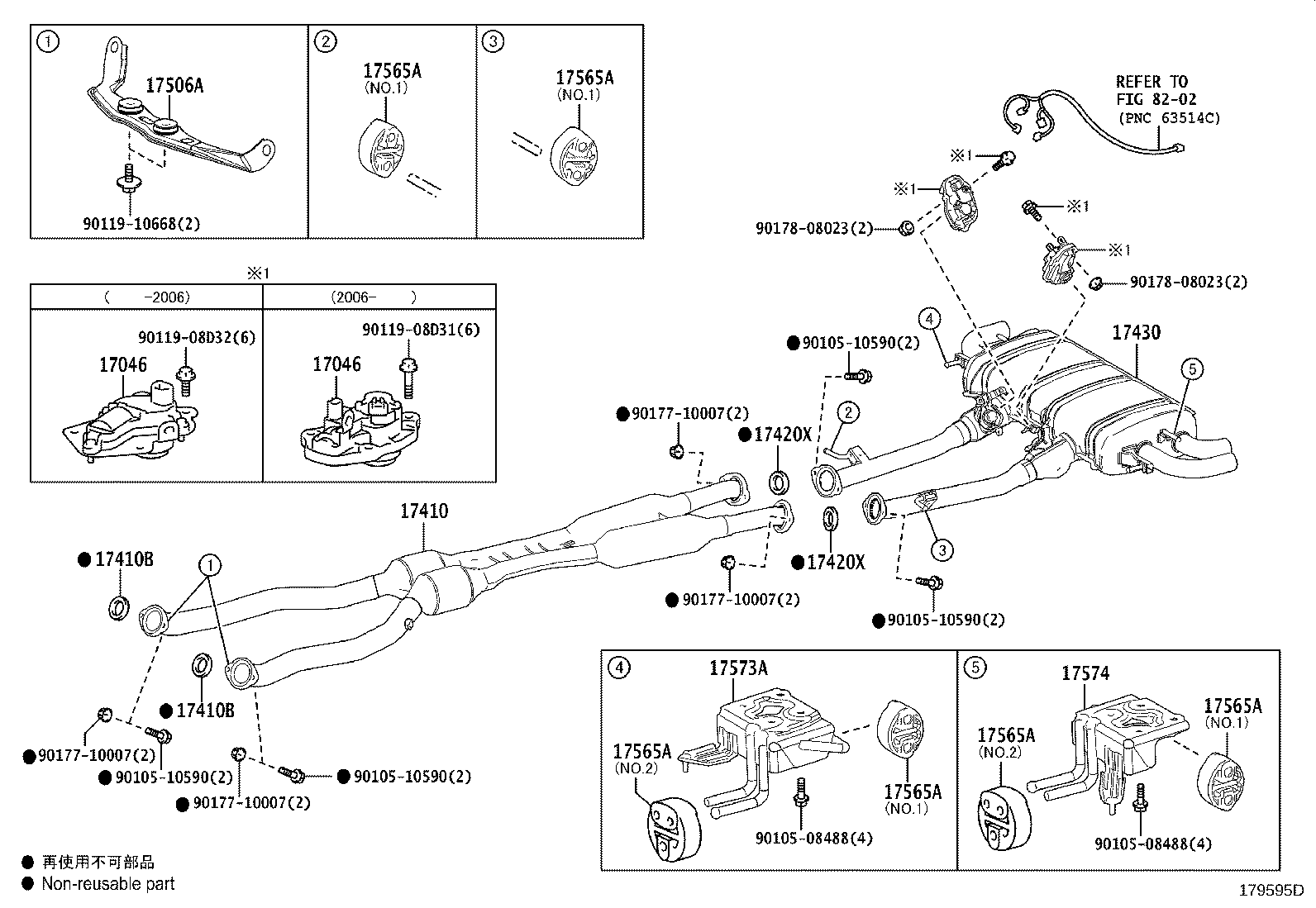

Click highlighted areas on diagram

diagram 17046 17046 17410 17410B 17410B 17420X 17420X 17430 17506A 17565A 17565A 17565A 17565A 17565A 17565A 17573A 17574 8202 9010508488 9010508488 9010510590 9010510590 9010510590 9010510590 9011908D31 9011908D32 9011910668 9017710007 9017710007 9017710007 9017710007 9017808023 9017808023
Part # Description Qty Price
17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17046-38020

2URGSE..URZ100

 2
17046-38010

2URGSE..URZ100

 2
17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17046-38020

2URGSE..URZ100

 2
17046-38010

2URGSE..URZ100

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-38570

2URGSE..URZ100..ARL,GCC

*114=TOYOTA/PA6/Y

 1
17410B - GASKET, EXHAUST PIPE
90917-06070

2URGSE..URZ100

 2
17410B - GASKET, EXHAUST PIPE
90917-06070

2URGSE..URZ100

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

2URGSE..URZ100

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

2URGSE..URZ100

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-38050

2URGSE..URZ100

 1
17405-38041

2URGSE..URZ100

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-38150

2URGSE..URZ100

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-38072

8GRFXS,2URGSE..GWZ100,URZ100

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-38092

8GRFXS,2URGSE..GWZ100,URZ100

 1
Common parts
90105-08488
90105-10590
90119-08D31
90119-08D32
90119-10668
90177-10007
90178-08023
Linked diagrams
8202
