URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)

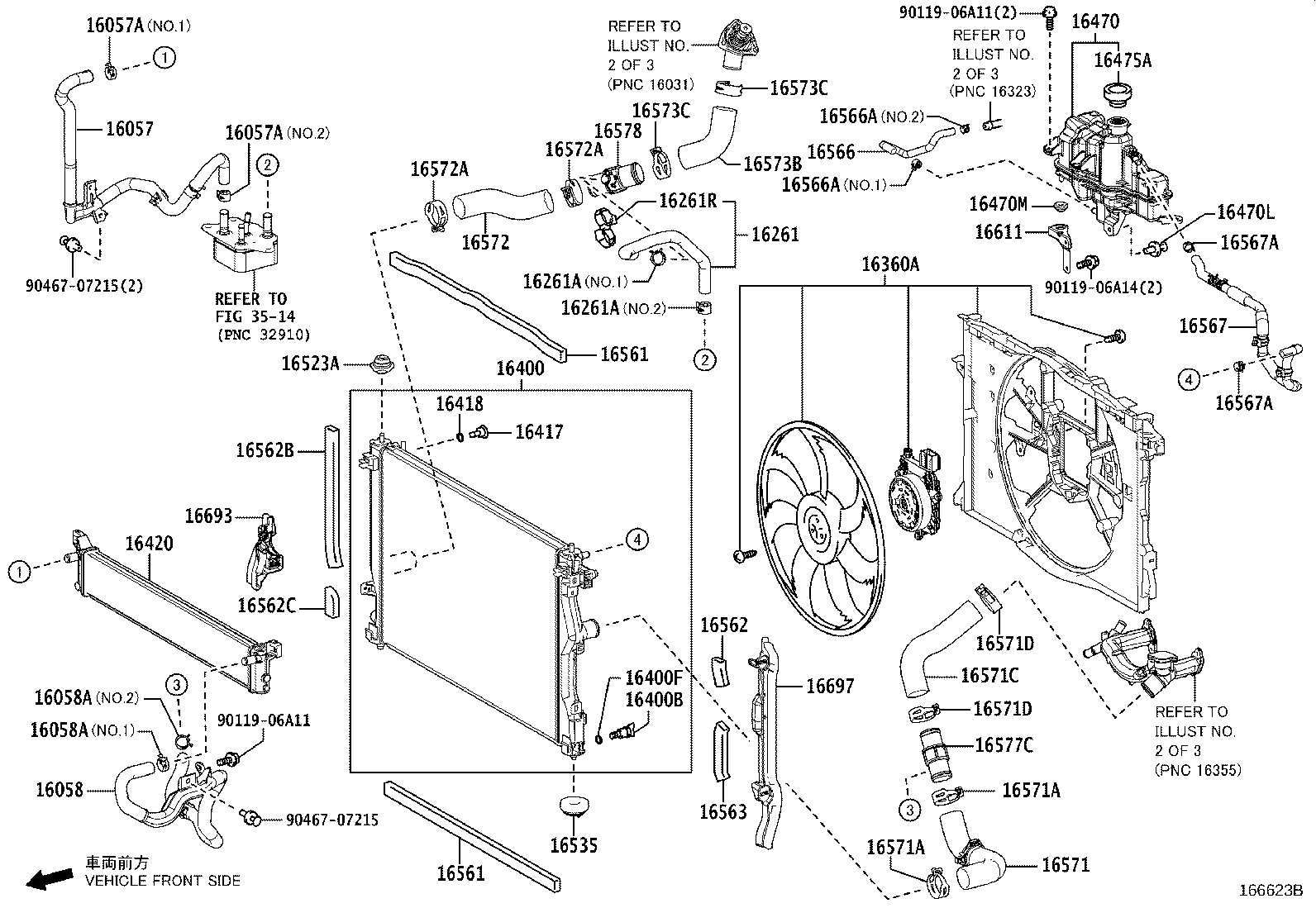

ILLUST NO. 1 OF 3(1703- )2URGSE
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16058-31060 |
2URGSE..URZ100 |
1 | ||
| 16057A - CLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY) | ||||
| 96138-52501 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 96136-42101 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 16057A - CLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY) | ||||
| 96138-52501 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 96136-42101 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 16058 - HOSE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16058-31050 |
2URGSE..URZ100 |
1 | ||
| 16058A - CLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY) | ||||
| 96138-52501 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 16058A - CLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY) | ||||
| 96138-52501 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31180 |
2URGSE..URZ100 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 32923-50110 |
2URGSE..URZ100 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-31520 |
2URGSE..URZ100 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31700 |
2URGSE..URZ100 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2URGSE..URZ100 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2URGSE..URZ100 |
1 | ||
| 16417 - COCK | ||||
| 16417-28530 |
2URGSE..URZ100 |
1 | ||
| 16418 - PACKING | ||||
| 16418-20291 |
2URGSE..URZ100 |
1 | ||
| 16420 - RADIATOR ASSY, SUB | ||||
| G9010-11010 |
2URGSE..URZ100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-38060 |
2URGSE..URZ100 |
1 | ||
| 16470L - CLIP(FOR RADIATOR RESERVE TANK) | ||||
| 90467-07215 |
2URGSE..URZ100 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2URGSE..URZ100 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
2URGSE..URZ100 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
2URGSE..URZ100 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40022 |
2URGSE..URZ100 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
2URGSE..URZ100 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
2URGSE..URZ100 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31180 |
2URGSE..URZ100 |
1 | ||
| 16562B - SEAL, RADIATOR TO SUPPORT, NO.4 | ||||
| 16561-31200 |
2URGSE..URZ100 |
1 | ||
| 16562C - SEAL, RADIATOR TO SUPPORT, NO.5 | ||||
| 16561-31210 |
2URGSE..URZ100 |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16561-31190 |
2URGSE..URZ100 |
1 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-31050 |
2URGSE..URZ100 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 96137-41501 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 96137-41501 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-31060 |
2URGSE..URZ100 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-31440 |
2URGSE..URZ100 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31410 |
2URGSE..URZ100 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-31480 |
2URGSE..URZ100 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-31120 |
2URGSE..URZ100 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2URGSE..URZ100 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-31060 |
2URGSE..URZ100 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16577-31060 |
2URGSE..URZ100 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-38020 |
2URGSE..URZ100 |
1 | ||
| 16693 - PLATE, RADIATOR SIDE AIR GUIDE, RR RH | ||||
| 16693-31030 |
2URGSE..URZ100 |
1 | ||
| 16697 - PLATE, RADIATOR SIDE AIR GUIDE, RR LH | ||||
| 16697-31030 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-06A14 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 3514 | ||||

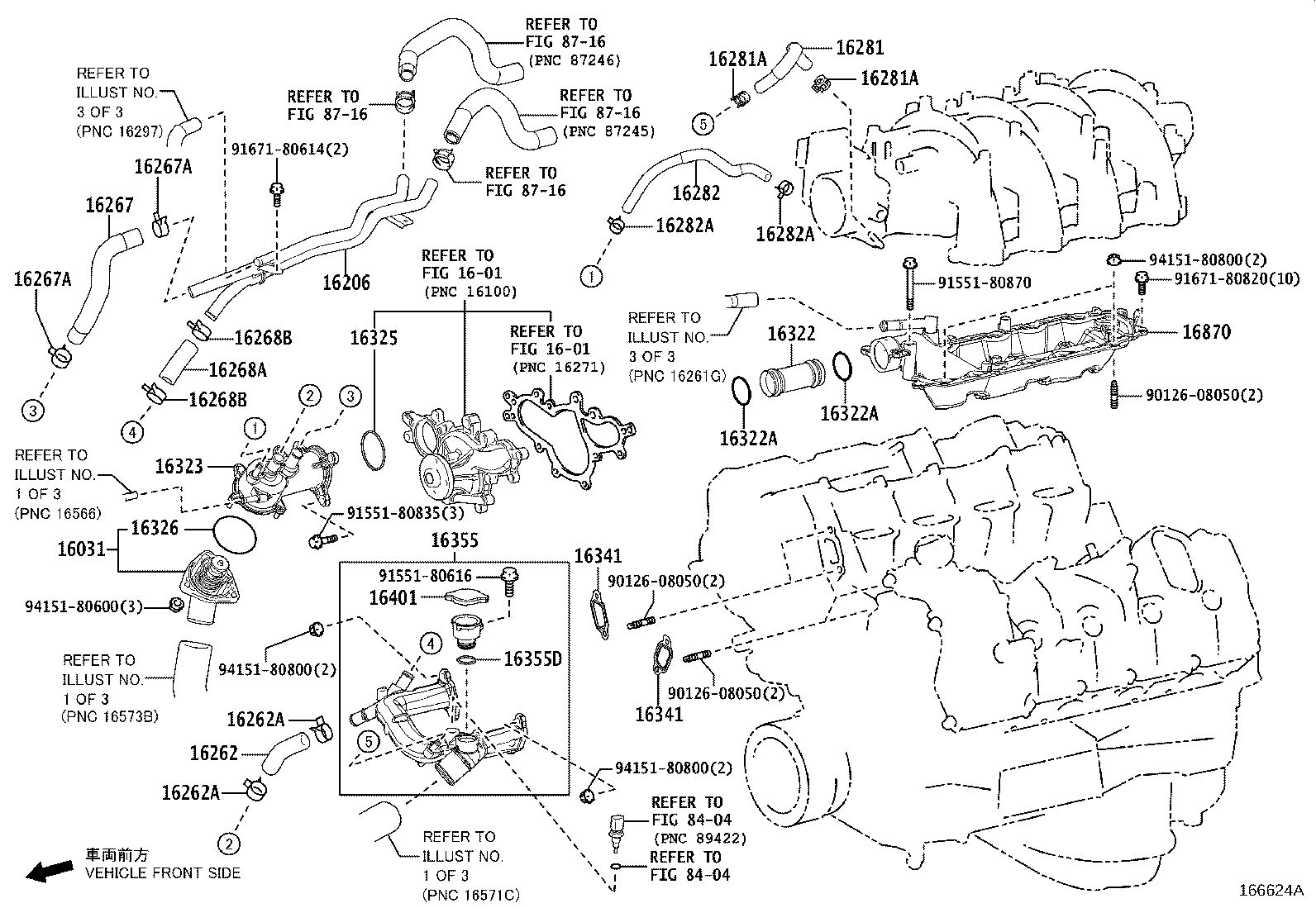

ILLUST NO. 2 OF 3(1703- )2URGSE
ENGINE SIDE PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-38010 |
2URGSE..URZ100 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-38030 |
2URGSE..URZ100 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 99556-30100 |
2URGSE..URZ100 *H,L=90 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2URGSE..URZ100 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2URGSE..URZ100 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-38030 |
2URGSE..URZ100 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2URGSE..URZ100 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2URGSE..URZ100 |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-30100 |
2URGSE..URZ100 *H,L=80 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96136-42501 |
2URGSE..URZ100 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96136-42501 |
2URGSE..URZ100 |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-38090 |
2URGSE..URZ100 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
2URGSE..URZ100 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
2URGSE..URZ100 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-38060 |
2URGSE..URZ100 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41501 |
2URGSE..URZ100 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41501 |
2URGSE..URZ100 |
2 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-38010 |
2URGSE..URZ100 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35035 |
2URGSE..URZ100 |
2 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35035 |
2URGSE..URZ100 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-38030 |
2URGSE..URZ100 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-38020 |
2URGSE..URZ100 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-38010 |
2URGSE..URZ100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38030 |
2URGSE..URZ100 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38030 |
2URGSE..URZ100 |
2 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-38080 |
2URGSE..URZ100 |
1 | ||
| 16355D - RING, O(FOR WATER BY-PASS JOINT FRONT) | ||||
| 96761-24021 |
2URGSE..URZ100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31822 |
2URGSE..URZ100 |
1 | ||
| 16870 - EXCHANGER ASSY, HEAT | ||||
| 16870-38030 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90126-08050 | ||||
| 91551-80616 | ||||
| 91551-80835 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 8404 | ||||
| 8716 | ||||

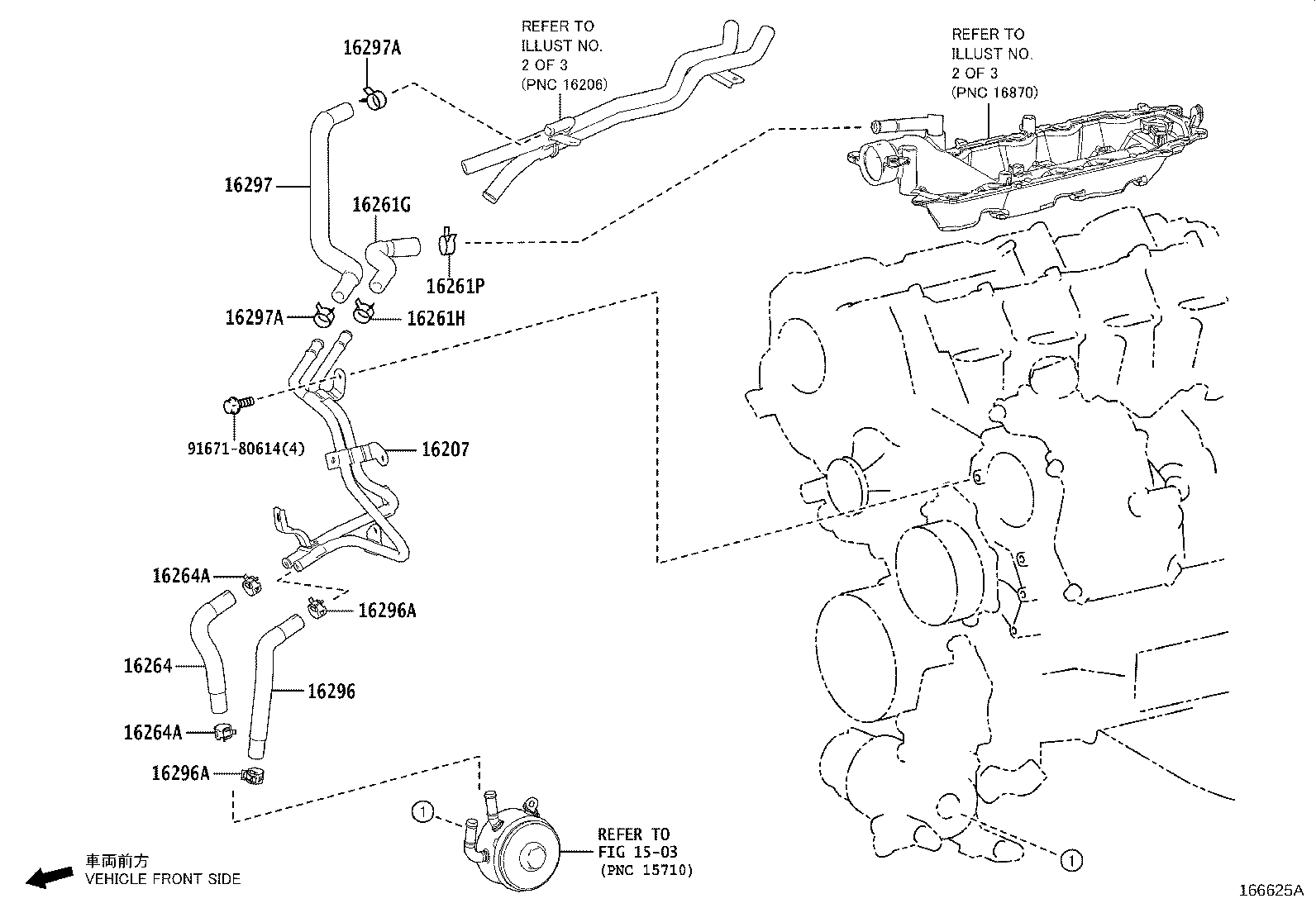

ILLUST NO. 3 OF 3(1703- )2URGSE
OIL COOLER SIDE PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-38040 |
2URGSE..URZ100 |
1 | ||
| 16207-38041 |
2URGSE..URZ100 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-38040 |
2URGSE..URZ100 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41901 |
2URGSE..URZ100 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
2URGSE..URZ100 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38120 |
2URGSE..URZ100 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-38060 |
2URGSE..URZ100 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-38060 |
2URGSE..URZ100 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41901 |
2URGSE..URZ100 |
2 | ||
| Common parts | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1503 | ||||
