URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Mar 2017
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1703- )2URGSE

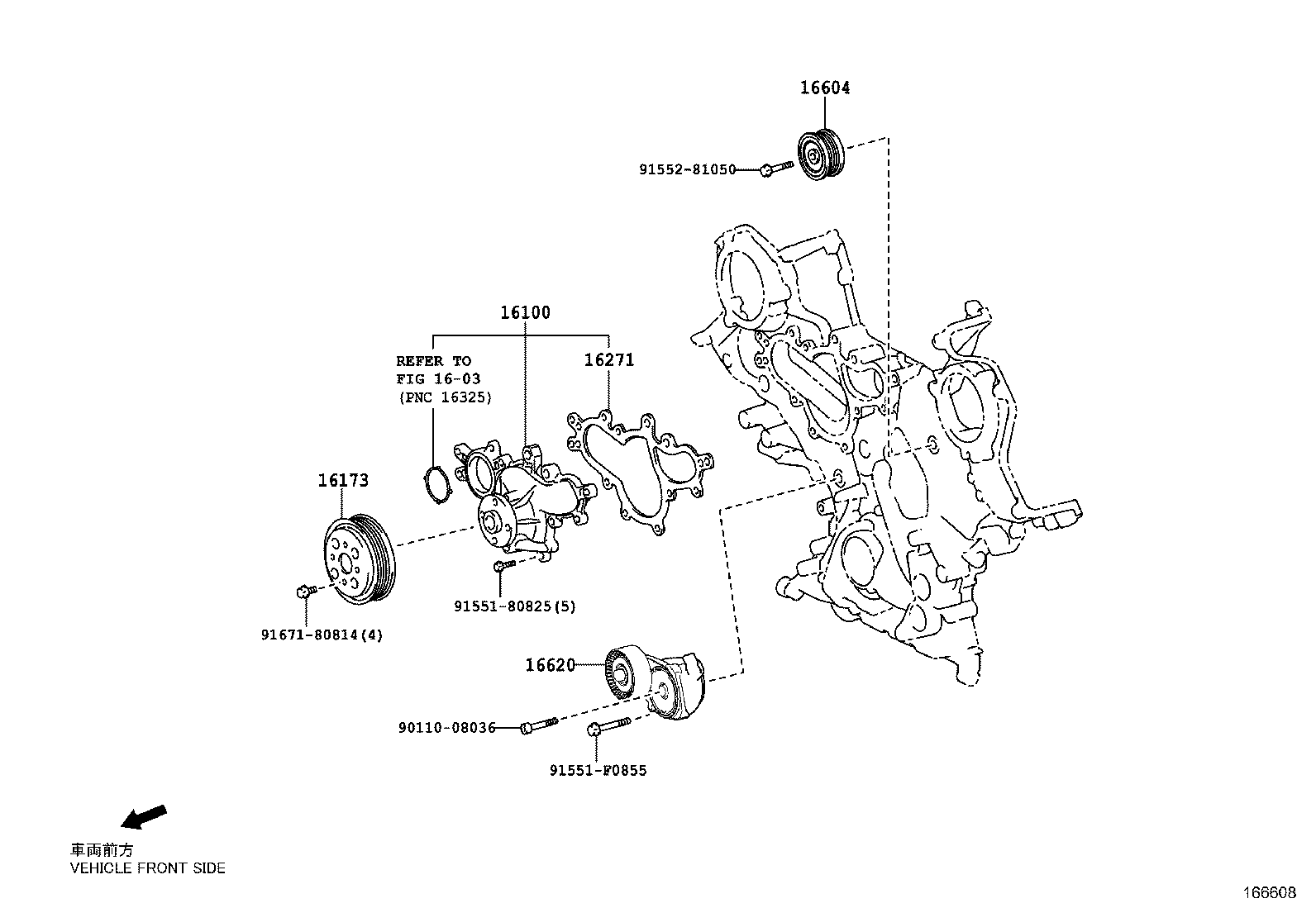

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39506 |
2URGSE..URZ100 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-38041 |
2URGSE..URZ100 |
1 | ||
| 16173-38040 |
2URGSE..URZ100 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-38010 |
2URGSE..URZ100 |
1 | ||
| 16604 - PULLEY SUB-ASSY, IDLER, NO.2 | ||||
| 16604-38020 |
2URGSE..URZ100 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0W131 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90110-08036 | ||||
| 91551-80825 | ||||
| 91551-F0855 | ||||
| 91552-81050 | ||||
| 91671-80814 | ||||
| Linked diagrams | ||||
| 1603 | ||||
