URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2URGSE

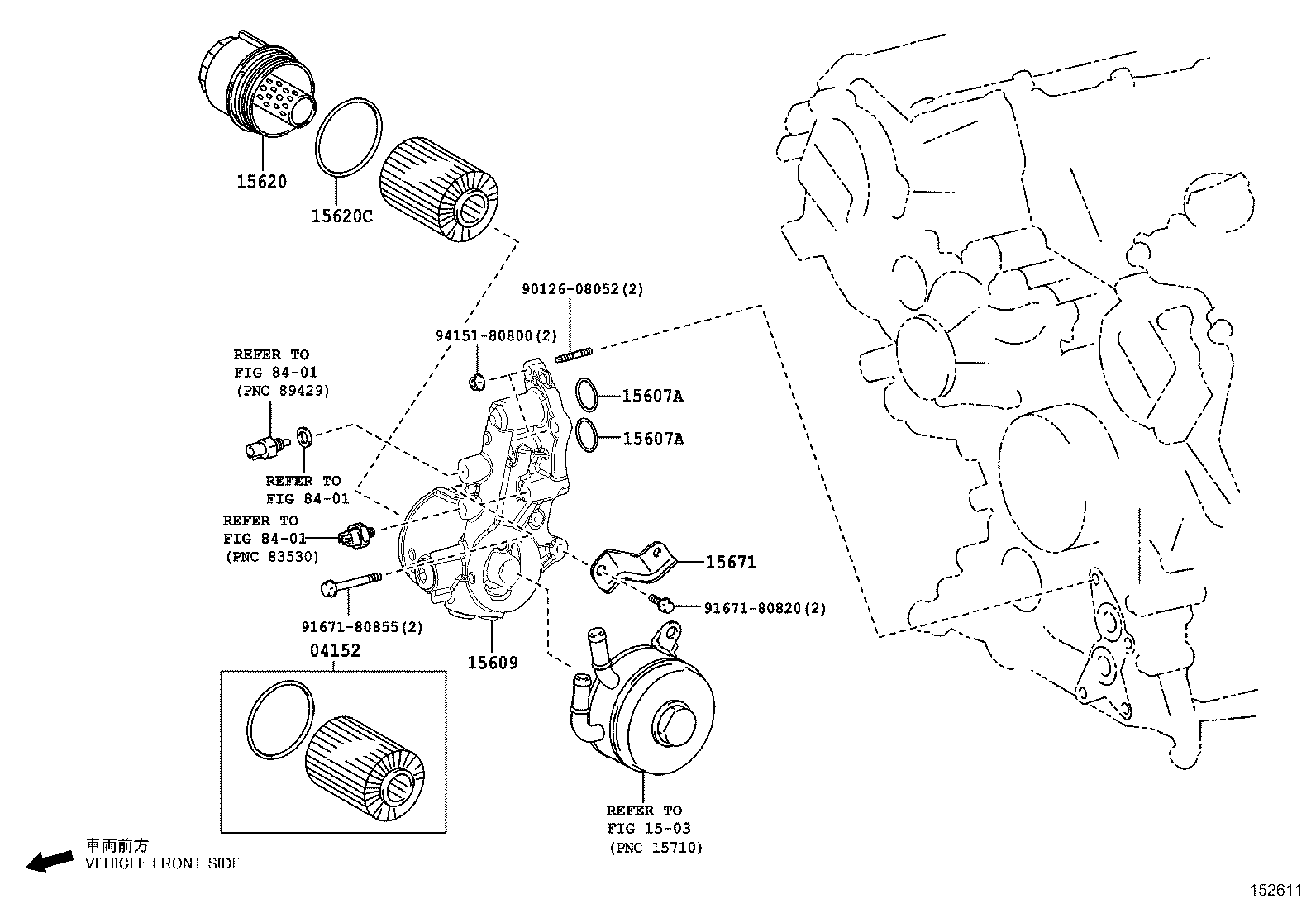

Click highlighted areas on diagram

diagram 04152 1503 15607A 15607A 15609 15620 15620C 15671 8401 8401 8401 9012608052 9167180820 9167180855 9415180800
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-51010

2URGSE..URZ100

 1
15607A - RING, O(FOR OIL FILTER BODY)
96722-24030

2URGSE..URZ100

 2
15607A - RING, O(FOR OIL FILTER BODY)
96722-24030

2URGSE..URZ100

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-38021

2URGSE..URZ100

 1
15620 - CAP ASSY, OIL FILTER
15620-38030

2URGSE..URZ100

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

2URGSE..URZ100

 1
15671 - BRACKET, OIL FILTER
15671-38030

2URGSE..URZ100

 1
Common parts
90126-08052
91671-80820
91671-80855
94151-80800
Linked diagrams
1503
8401
