URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2URGSE

Click highlighted areas on diagram

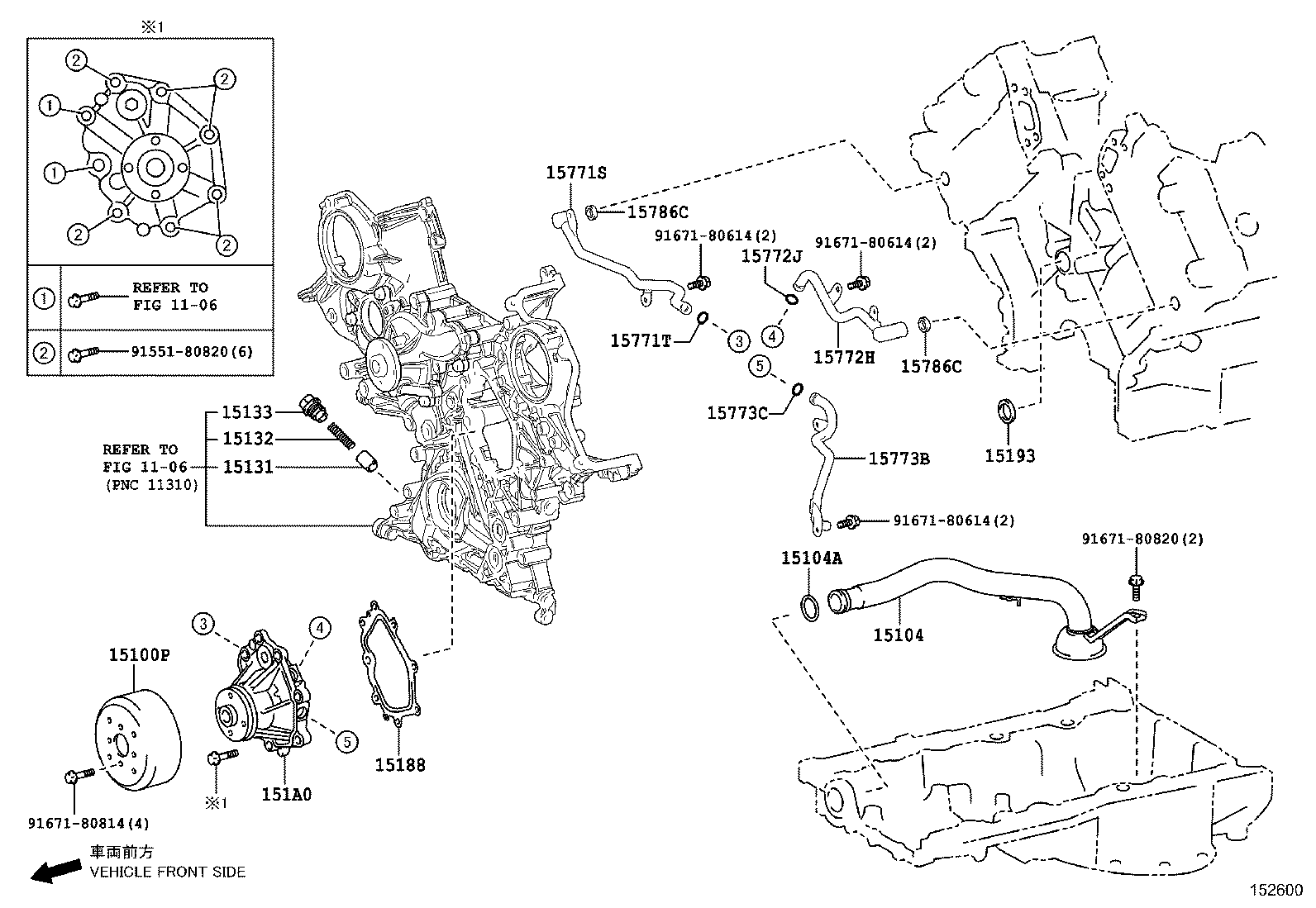

diagram 1106 1106 15100P 15104 15104A 15131 15132 15133 15188 15193 151A0 15771S 15771T 15772H 15772J 15773B 15773C 15786C 15786C 9155180820 9167180614 9167180614 9167180614 9167180814 9167180820
Part # Description Qty Price
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-38020

2URGSE..URZ100

 1
15104 - STRAINER SUB-ASSY, OIL
15104-38060

2URGSE..URZ100

 1
15104A - RING, O(FOR OIL STRAINER)
96721-24028

2URGSE..URZ100

 1
15131 - VALVE, OIL PUMP RELIEF
15131-38070

2URGSE..URZ100

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-38070

2URGSE..URZ100

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-38070

2URGSE..URZ100

 1
15188 - GASKET, OIL PUMP
15193-38030

2URGSE..URZ100

 1
15193 - GASKET, OIL PUMP
15193-38010

2URGSE..URZ100

 1
151A0 - PUMP ASSY, SCAVENGING
151A0-38010

2URGSE..URZ100

 1
15771S - PIPE, OIL, NO.1
15771-38010

2URGSE..URZ100

 1
15771T - RING, O(FOR OIL PIPE NO.1)
90301-11019

2URGSE..URZ100

 1
15772H - PIPE, OIL, NO.2
15772-38010

2URGSE..URZ100

 1
15772J - RING, O(FOR OIL PIPE NO.2)
90301-11019

2URGSE..URZ100

 1
15773B - PIPE, OIL, NO.3
15773-38020

2URGSE..URZ100

 1
15773C - RING, O(FOR OIL PIPE NO.3)
90301-11019

2URGSE..URZ100

 1
15786C - SEAL, OIL PIPE
15786-38010

2URGSE..URZ100

 2
15786C - SEAL, OIL PIPE
15786-38010

2URGSE..URZ100

 2
Common parts
91551-80820
91671-80614
91671-80814
91671-80820
Linked diagrams
1106
