URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2URGSE

Click highlighted areas on diagram

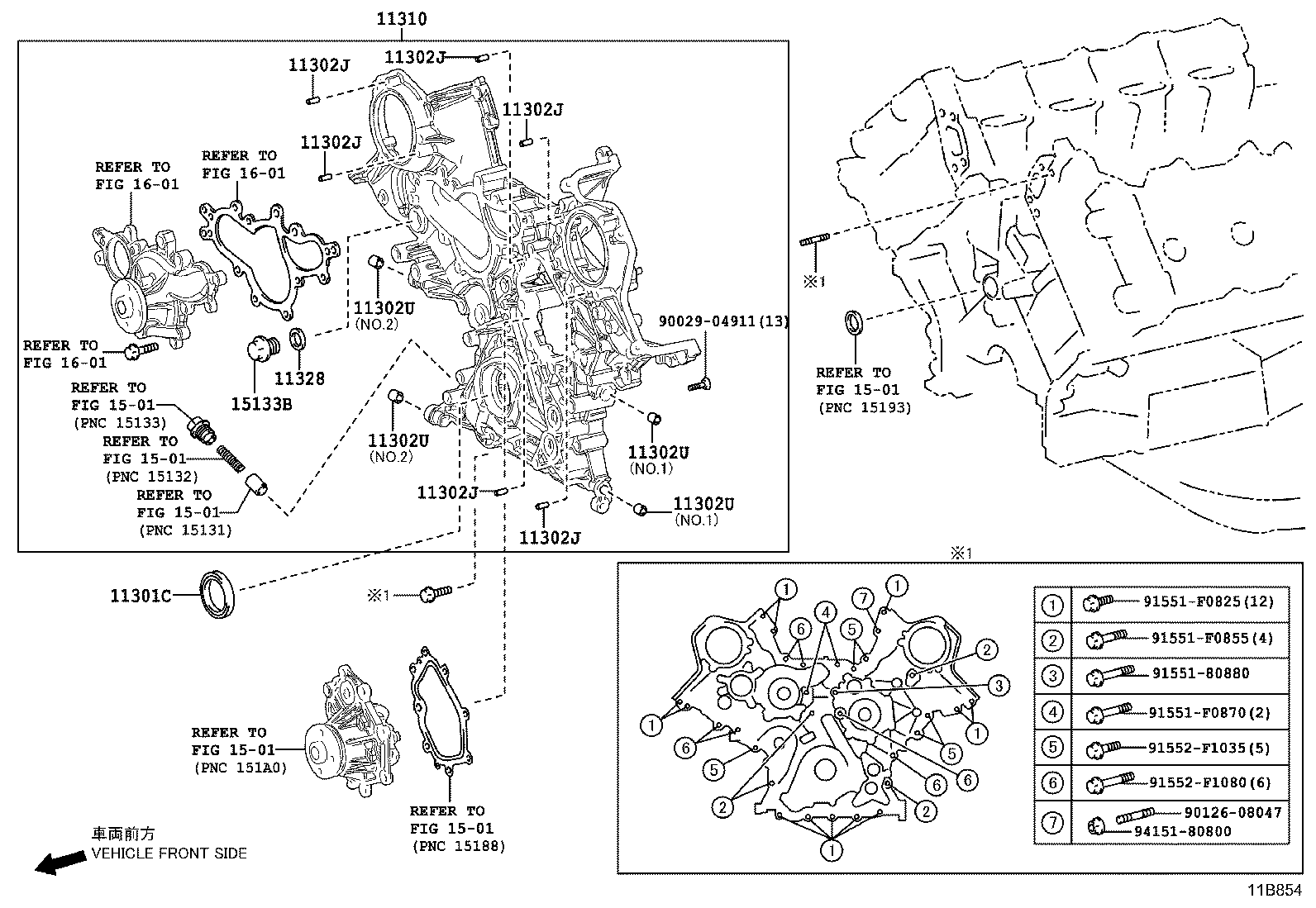

diagram 11301C 11302J 11302J 11302J 11302J 11302J 11302J 11302U 11302U 11302U 11302U 11310 11328 1501 1501 1501 1501 1501 1501 15133B 1601 1601 1601 9002904911 9012608047 9155180880 91551F0825 91551F0855 91551F0870 91552F1035 91552F1080 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42036

2URGSE..URZ100

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URGSE..URZ100

 6
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URGSE..URZ100

 6
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URGSE..URZ100

 6
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URGSE..URZ100

 6
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URGSE..URZ100

 6
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URGSE..URZ100

 6
11302U - PIN, RING
90253-11021

2URGSE..URZ100

NO.1:REFER ILLUST.

 2
90253-13017

2URGSE..URZ100

NO.2:REFER ILLUST.

 2
11302U - PIN, RING
90253-11021

2URGSE..URZ100

NO.1:REFER ILLUST.

 2
90253-13017

2URGSE..URZ100

NO.2:REFER ILLUST.

 2
11302U - PIN, RING
90253-11021

2URGSE..URZ100

NO.1:REFER ILLUST.

 2
90253-13017

2URGSE..URZ100

NO.2:REFER ILLUST.

 2
11302U - PIN, RING
90253-11021

2URGSE..URZ100

NO.1:REFER ILLUST.

 2
90253-13017

2URGSE..URZ100

NO.2:REFER ILLUST.

 2
11310 - COVER ASSY, TIMING CHAIN
11310-38100

2URGSE..URZ100

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

2URGSE..URZ100

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

2URGSE..URZ100

 1
Common parts
90029-04911
90126-08047
91551-80880
91551-F0825
91551-F0855
91551-F0870
91552-F1035
91552-F1080
94151-80800
Linked diagrams
1501
1601
