URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)

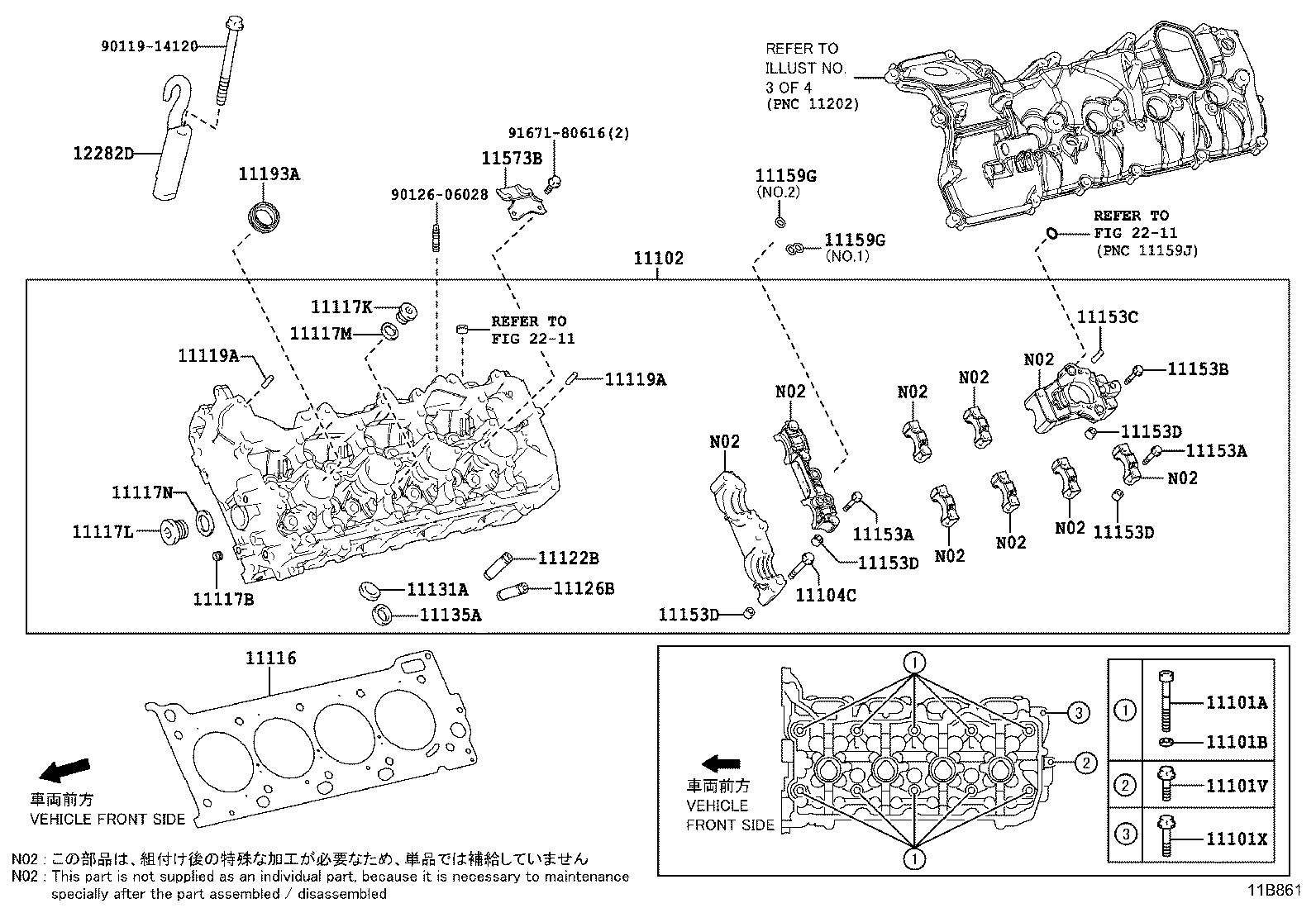

ILLUST NO. 1 OF 4(1703- )2URGSE
CYLINDER HEAD(LH BANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2URGSE..URZ100 |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2URGSE..URZ100 |
20 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-80825 |
2URGSE..URZ100 |
2 | ||
| 11101X - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-F0855 |
2URGSE..URZ100 |
2 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39276 |
2URGSE..URZ100 |
1 | ||
| 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) | ||||
| 91671-G0860 |
2URGSE..URZ100 |
3 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-38020 |
2URGSE..URZ100 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-51005 |
2URGSE..URZ100 |
8 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-20012 |
2URGSE..URZ100 |
3 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27006 |
2URGSE..URZ100 |
1 | ||
| 11117M - GASKET(FOR WATER HOLE NO.2) | ||||
| 90430-20004 |
2URGSE..URZ100 |
3 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
2URGSE..URZ100 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-05021 |
2URGSE..URZ100 L=13.8,OD=5.0 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-05021 |
2URGSE..URZ100 L=13.8,OD=5.0 |
2 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11123-31050 |
2URGSE..URZ100 O/S 0.05 |
8 | ||
| 11122-31050 |
2URGSE..URZ100 STD |
8 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11126-31030 |
2URGSE..URZ100 STD |
8 | ||
| 11127-31030 |
2URGSE..URZ100 O/S 0.05 |
8 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-31040 |
2URGSE..URZ100 STD |
8 | ||
| 11132-31040 |
2URGSE..URZ100 O/S 0.03 |
8 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-38060 |
2URGSE..URZ100 STD |
8 | ||
| 11136-38060 |
2URGSE..URZ100 O/S 0.03 |
8 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07013 |
2URGSE..URZ100 |
16 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07013 |
2URGSE..URZ100 |
16 | ||
| 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 90119-08A58 |
2URGSE..URZ100 |
4 | ||
| 11153C - PIN, STRAIGHT(FOR CAMSHAFT HOUSING LH) | ||||
| 90250-04097 |
2URGSE..URZ100 |
2 | ||
| 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) | ||||
| 90253-11021 |
2URGSE..URZ100 |
18 | ||
| 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) | ||||
| 90253-11021 |
2URGSE..URZ100 |
18 | ||
| 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) | ||||
| 90253-11021 |
2URGSE..URZ100 |
18 | ||
| 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) | ||||
| 90253-11021 |
2URGSE..URZ100 |
18 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-38010 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 11159-31010 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-38010 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 11159-31010 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-38030 |
2URGSE..URZ100 |
4 | ||
| 11573B - PLATE, OIL REFLECTOR, LH | ||||
| 11573-38030 |
2URGSE..URZ100 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12081-38040 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90119-14120 | ||||
| 90126-06028 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 2211 | ||||

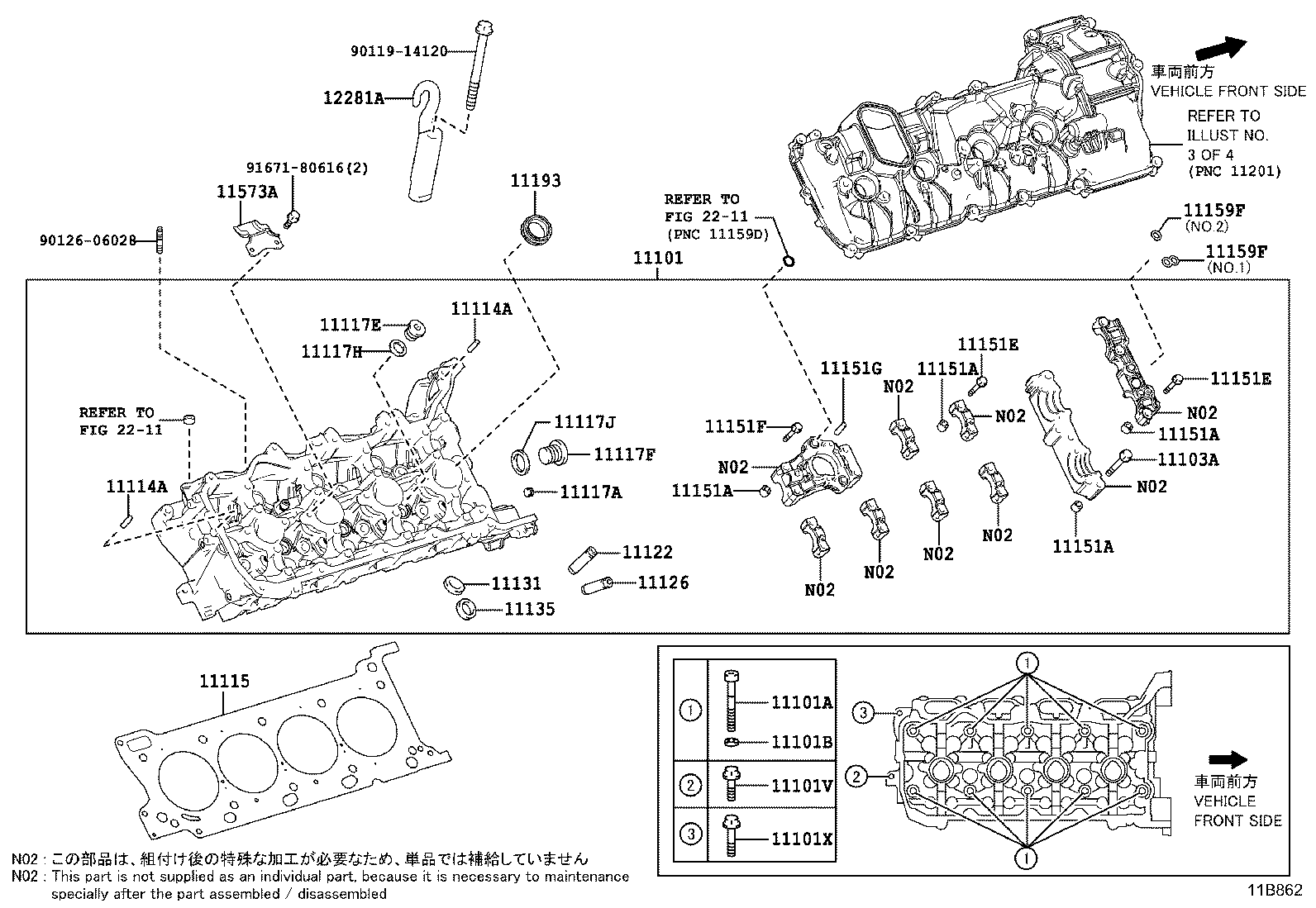

ILLUST NO. 2 OF 4(1703- )2URGSE
CYLINDER HEAD(RH BANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39836 |
2URGSE..URZ100 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2URGSE..URZ100 |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2URGSE..URZ100 |
20 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-80825 |
2URGSE..URZ100 |
2 | ||
| 11101X - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-F0855 |
2URGSE..URZ100 |
2 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91671-G0860 |
2URGSE..URZ100 |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-05021 |
2URGSE..URZ100 L=13.8,OD=5.0 |
2 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-05021 |
2URGSE..URZ100 L=13.8,OD=5.0 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-38030 |
2URGSE..URZ100 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-51005 |
2URGSE..URZ100 |
7 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
2URGSE..URZ100 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27006 |
2URGSE..URZ100 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2URGSE..URZ100 |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2URGSE..URZ100 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31050 |
2URGSE..URZ100 O/S 0.05 |
8 | ||
| 11122-31050 |
2URGSE..URZ100 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-31030 |
2URGSE..URZ100 O/S 0.05 |
8 | ||
| 11126-31030 |
2URGSE..URZ100 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-31040 |
2URGSE..URZ100 STD |
8 | ||
| 11132-31040 |
2URGSE..URZ100 O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-38060 |
2URGSE..URZ100 STD |
8 | ||
| 11136-38060 |
2URGSE..URZ100 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2URGSE..URZ100 L=8,OD=11 |
18 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2URGSE..URZ100 L=8,OD=11 |
18 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2URGSE..URZ100 L=8,OD=11 |
18 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2URGSE..URZ100 L=8,OD=11 |
18 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07013 |
2URGSE..URZ100 |
16 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07013 |
2URGSE..URZ100 |
16 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90119-08A58 |
2URGSE..URZ100 |
4 | ||
| 11151G - PIN, STRAIGHT(FOR CAMSHAFT HOUSING RH) | ||||
| 90250-04097 |
2URGSE..URZ100 |
2 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-31010 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 11159-38010 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-31010 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 11159-38010 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-38030 |
2URGSE..URZ100 |
4 | ||
| 11573A - PLATE, OIL REFLECTOR, RH | ||||
| 11573-38030 |
2URGSE..URZ100 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12081-38040 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90119-14120 | ||||
| 90126-06028 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 2211 | ||||

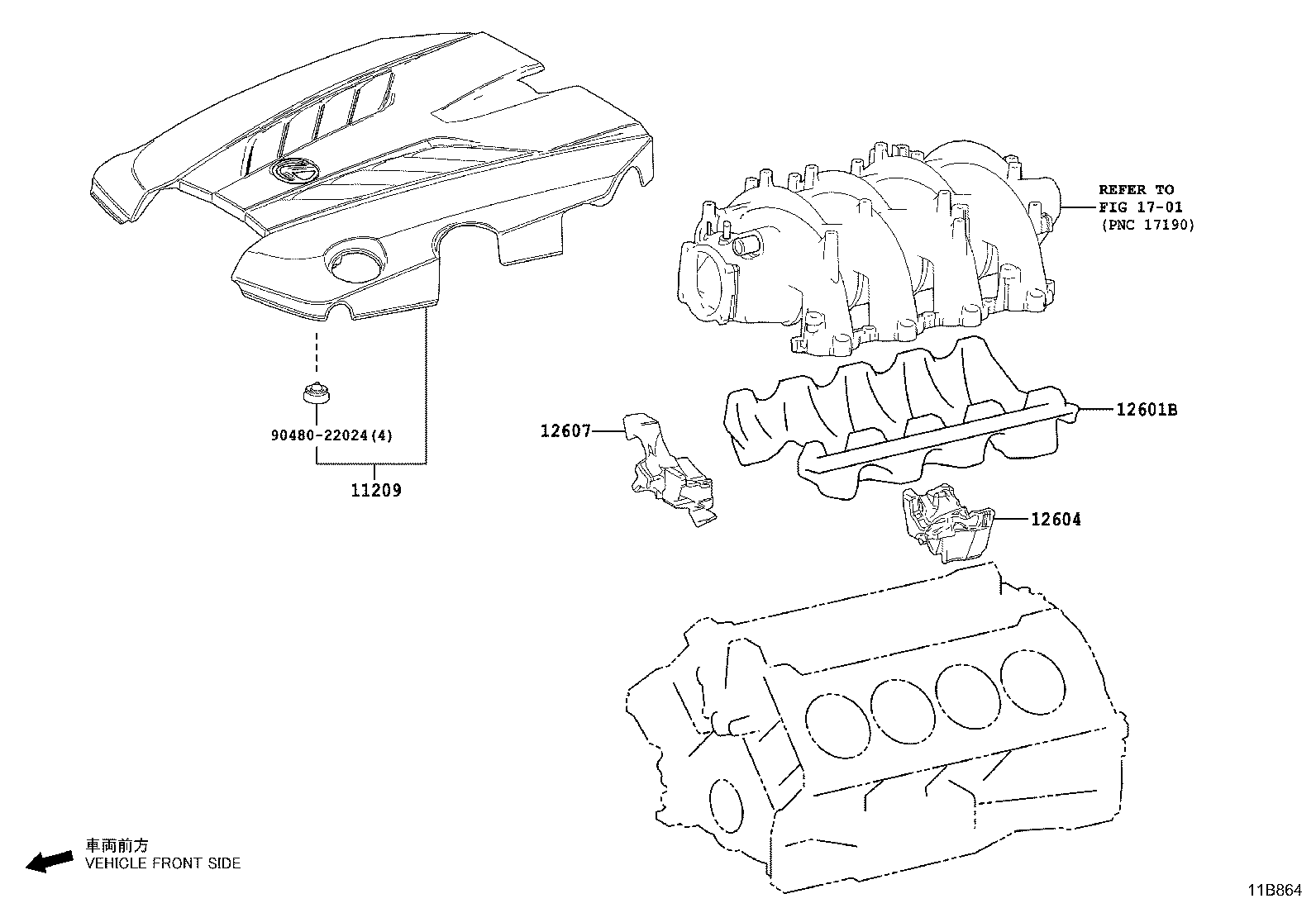

ILLUST NO. 4 OF 4(1703- )2URGSE
ENGINE COVER & BANK COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-38171 |
2URGSE..URZ100 |
1 | ||
| 11209-38170 |
2URGSE..URZ100 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-38040 |
2URGSE..URZ100 |
1 | ||
| 12604 - COVER SUB-ASSY, ENGINE, NO.4 | ||||
| 12604-38010 |
2URGSE..URZ100 |
1 | ||
| 12607 - COVER SUB-ASSY, ENGINE, LH NO.2 | ||||
| 12607-38020 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90480-22024 | ||||
| Linked diagrams | ||||
| 1701 | ||||

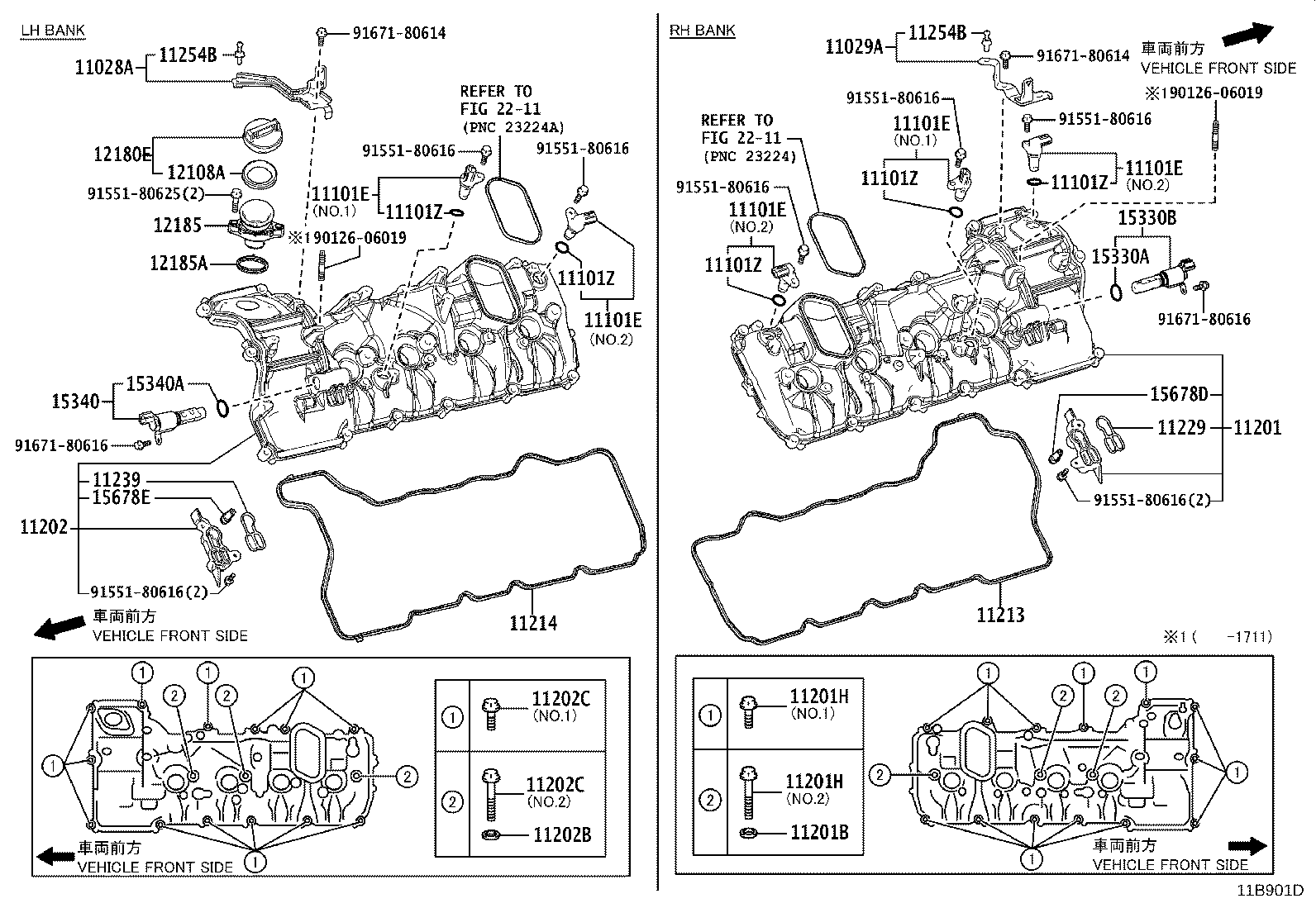

ILLUST NO. 3 OF 4(1703- )2URGSE
CYLINDER HEAD COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11028A - BRACKET SUB-ASSY, V-BANK COVER, NO.4 | ||||
| 1102B-38020 |
2URGSE..URZ100 |
1 | ||
| 11029A - BRACKET SUB-ASSY, V-BANK COVER, NO.3 | ||||
| 1102A-38040 |
2URGSE..URZ100 |
1 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 90919-05060 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 90919-05060 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 90919-05060 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 90919-05060 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 90919-05060 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
2 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
2URGSE..URZ100 |
5 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
2URGSE..URZ100 |
5 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
2URGSE..URZ100 |
5 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
2URGSE..URZ100 |
5 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
2URGSE..URZ100 |
5 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-38092 |
2URGSE..URZ100 |
1 | ||
| 11201-38091 |
2URGSE..URZ100 |
1 | ||
| 11201-38090 |
2URGSE..URZ100 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08045 |
2URGSE..URZ100 |
3 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80870 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 91551-A0625 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
13 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80870 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 91551-A0625 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
13 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-38060 |
2URGSE..URZ100 |
1 | ||
| 11202-38061 |
2URGSE..URZ100 |
1 | ||
| 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-08045 |
2URGSE..URZ100 |
3 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 91551-80870 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 91551-A0625 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
13 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 91551-80870 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
3 | ||
| 91551-A0625 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
13 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-38040 |
2URGSE..URZ100 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-38030 |
2URGSE..URZ100 |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 11229-38030 |
2URGSE..URZ100 |
1 | ||
| 11239 - GASKET, CLINDER HEAD CONER, NO.4 | ||||
| 11229-38030 |
2URGSE..URZ100 |
1 | ||
| 11254B - BOLT, V-BANK COVER | ||||
| 11254-31020 |
2URGSE..URZ100 |
2 | ||
| 11254B - BOLT, V-BANK COVER | ||||
| 11254-31020 |
2URGSE..URZ100 |
2 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2URGSE..URZ100 |
1 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-38010 |
2URGSE..URZ100 |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12185-38020 |
2URGSE..URZ100 |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-38010 |
2URGSE..URZ100 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2URGSE..URZ100 |
1 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-38010 |
2URGSE..URZ100 |
1 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-38010 |
2URGSE..URZ100 |
1 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2URGSE..URZ100 |
1 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-46020 |
2URGSE..URZ100 |
1 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-46020 |
2URGSE..URZ100 |
1 | ||
| Common parts | ||||
| 90126-06019 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
