URZ100L-ACUBH (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Mar 2017
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1703- )

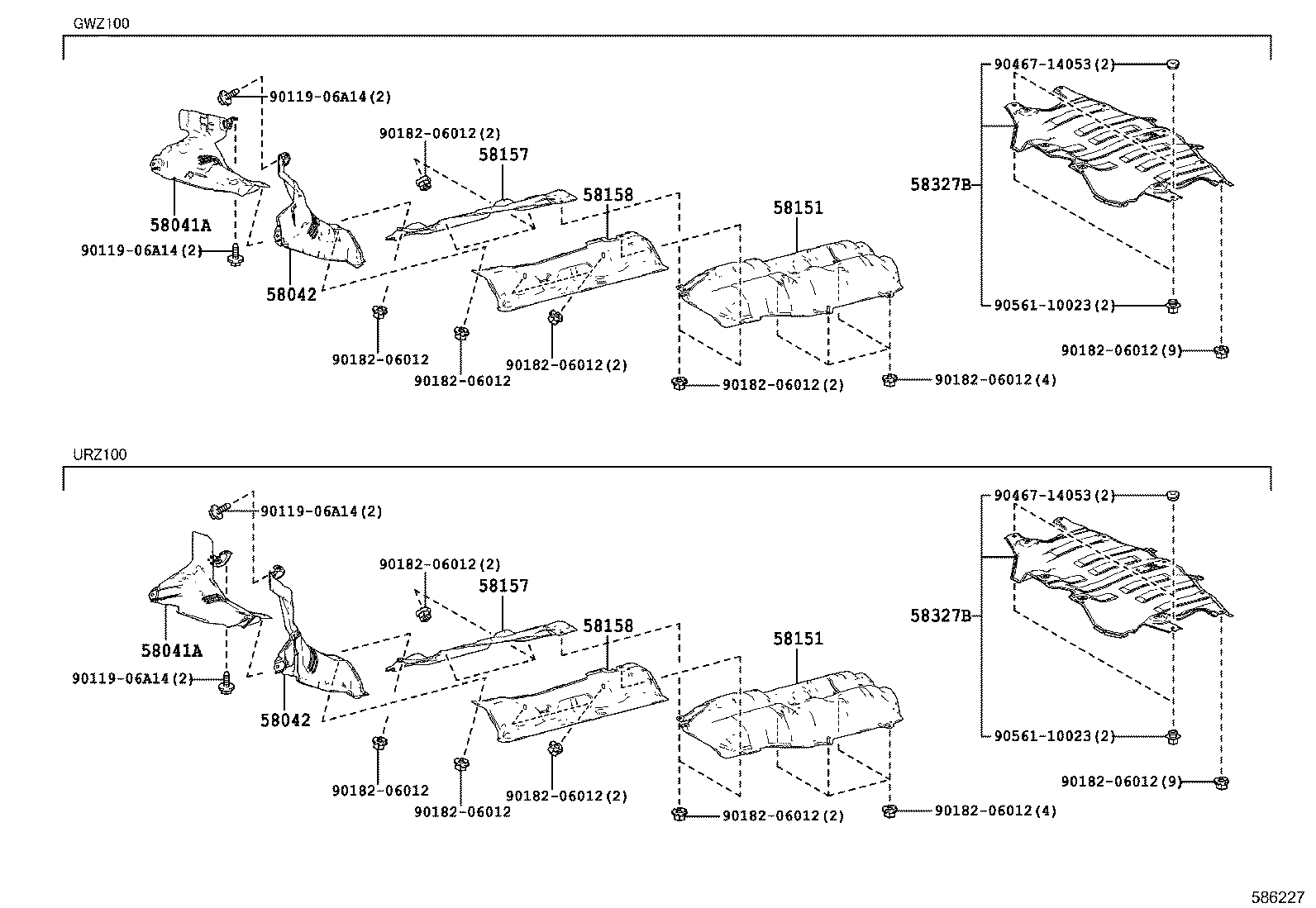

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1 | ||||
| 58041-11020 |
URZ100 |
1 | ||
| 58041-11021 |
URZ100 |
1 | ||
| 58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1 | ||||
| 58041-11020 |
URZ100 |
1 | ||
| 58041-11021 |
URZ100 |
1 | ||
| 58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2 | ||||
| 58042-11020 |
URZ100 |
1 | ||
| 58042-11021 |
URZ100 |
1 | ||
| 58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2 | ||||
| 58042-11020 |
URZ100 |
1 | ||
| 58042-11021 |
URZ100 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-11010 |
GWZ100,URZ100 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-11010 |
GWZ100,URZ100 |
1 | ||
| 58157 - INSULATOR, FRONT FLOOR HEAT, NO.5 | ||||
| 58157-11010 |
GWZ100,URZ100 |
1 | ||
| 58157 - INSULATOR, FRONT FLOOR HEAT, NO.5 | ||||
| 58157-11010 |
GWZ100,URZ100 |
1 | ||
| 58158 - INSULATOR, FRONT FLOOR HEAT, NO.6 | ||||
| 58158-11010 |
GWZ100,URZ100 |
1 | ||
| 58158 - INSULATOR, FRONT FLOOR HEAT, NO.6 | ||||
| 58158-11010 |
GWZ100,URZ100 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-11010 |
GWZ100,URZ100 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90182-06012 | ||||
| 90467-14053 | ||||
| 90561-10023 | ||||
