USE20L-FEZRHV (2010)

Toyota Lexus Is F

Production Aug 2010 - Aug 2014
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

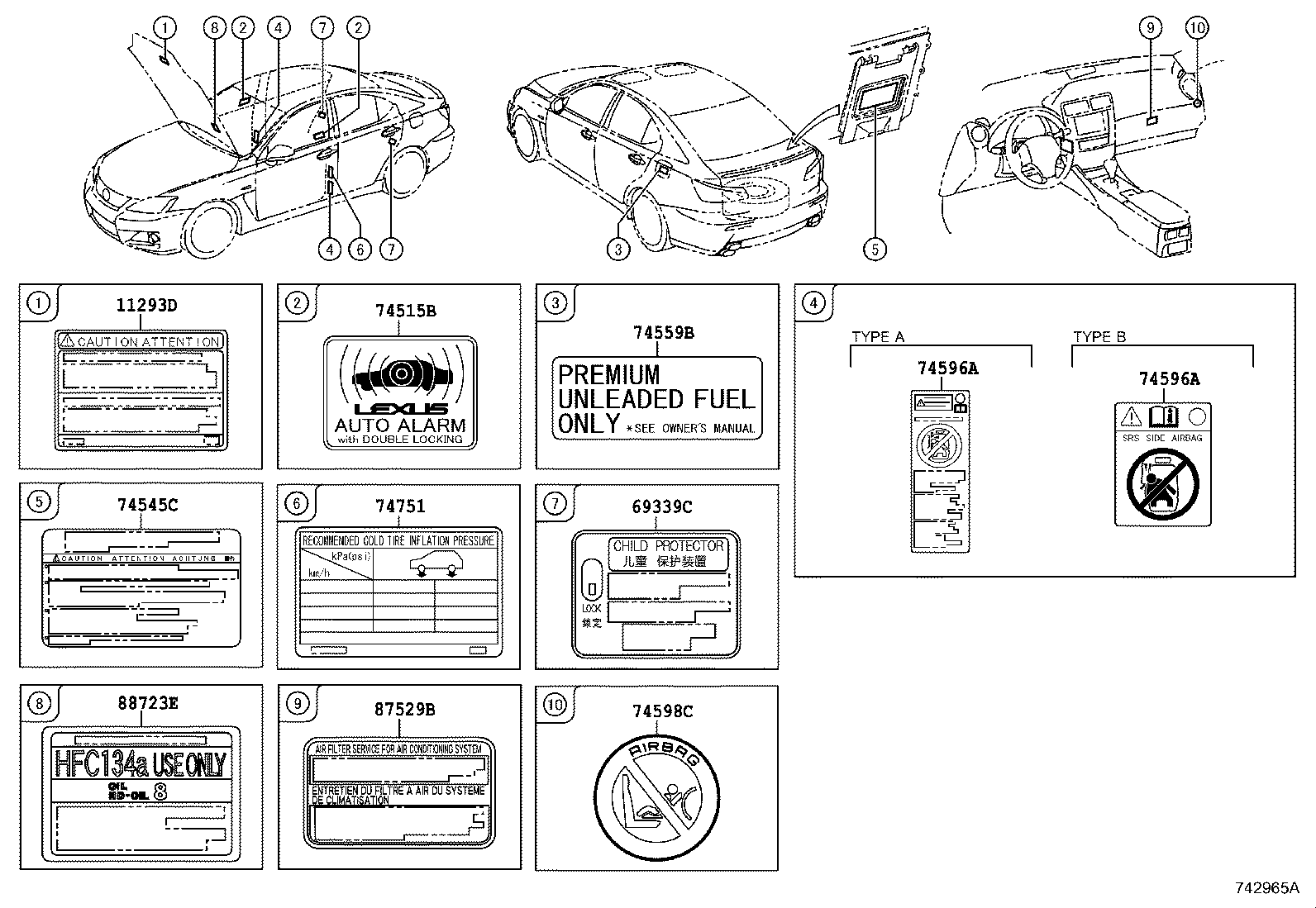

Click highlighted areas on diagram

diagram 11293D 69339C 74515B 74545C 74559B 74596A 74596A 74598C 74751 87529B 88723E
Part # Description Qty Price
11293D - LABEL, ENGINE CAUTION
11293-31120

2URGSE..USE20

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-48010

USE20

 2
74515B - PLATE, THEFT WARNING
74515-30040

USE20

 2
74545C - LABEL, LUGGAGE DOOR
74545-53060

USE20

 1
74545-53040

USE20

 1
74559B - LABEL, FUEL INFORMATION
74559-50010

USE20

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53012

USE20

TYPE B:REFER ILLUST.

 2
74596-53020

USE20

TYPE A:REFER ILLUST.

 2
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53012

USE20

TYPE B:REFER ILLUST.

 2
74596-53020

USE20

TYPE A:REFER ILLUST.

 2
74598C - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

USE20

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-53680

USE20

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

USE20

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

USE20

 1
