USE20L-FEZRHV (2010)
Toyota Lexus Is F
Production
Aug 2010
-
Aug 2014
Engine
2URGSE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1008- )

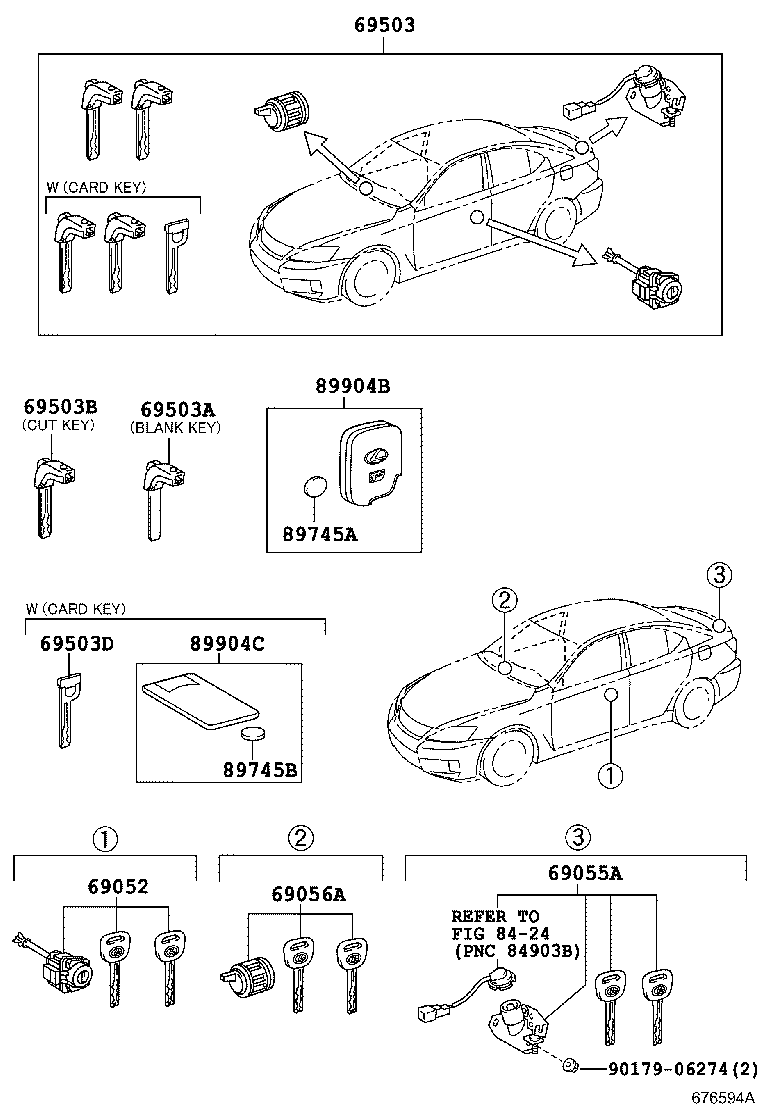

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-50150 |
USE20 |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-53050 |
USE20 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-50160 |
USE20 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-53330 |
USE20 |
1 | ||
| 69005-53370 |
USE20 WITH(CARD KEY) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-50260 |
USE20 BLANK KEY |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-50240 |
USE20 MASTER KEY |
2 | ||
| 69503D - KEY, CUT(CARD KEY) | ||||
| 69515-30330 |
USE20 MASTER KEY,WITH(CARD KEY) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
USE20 |
1 | ||
| 89745B - BATTERY, TRANSMITTER(CARD KEY) | ||||
| 89745-50030 |
USE20 WIRELESS DOOR LOCK-WITH(PANIC),FOR JORDAN&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
USE20 WITH(CARD KEY) |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-53410 |
USE20 |
2 | ||
| 89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY) | ||||
| 89904-53420 |
USE20 WIRELESS DOOR LOCK-WITH(PANIC),FOR JORDAN&WITH(CARD KEY) |
1 | ||
| 89904-53420 |
USE20 WIRELESS DOOR LOCK-WITH(PANIC),FOR JORDAN&WITH(CARD KEY) |
1 | ||
| 89904-53420 |
USE20 WITH(CARD KEY) |
1 | ||
| 89904-53420 |
USE20 WITH(CARD KEY) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8424 | ||||
