USE20L-FEZRHV (2010)
Toyota Lexus Is F
Production
Aug 2010
-
Aug 2014
Engine
2URGSE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1008- )

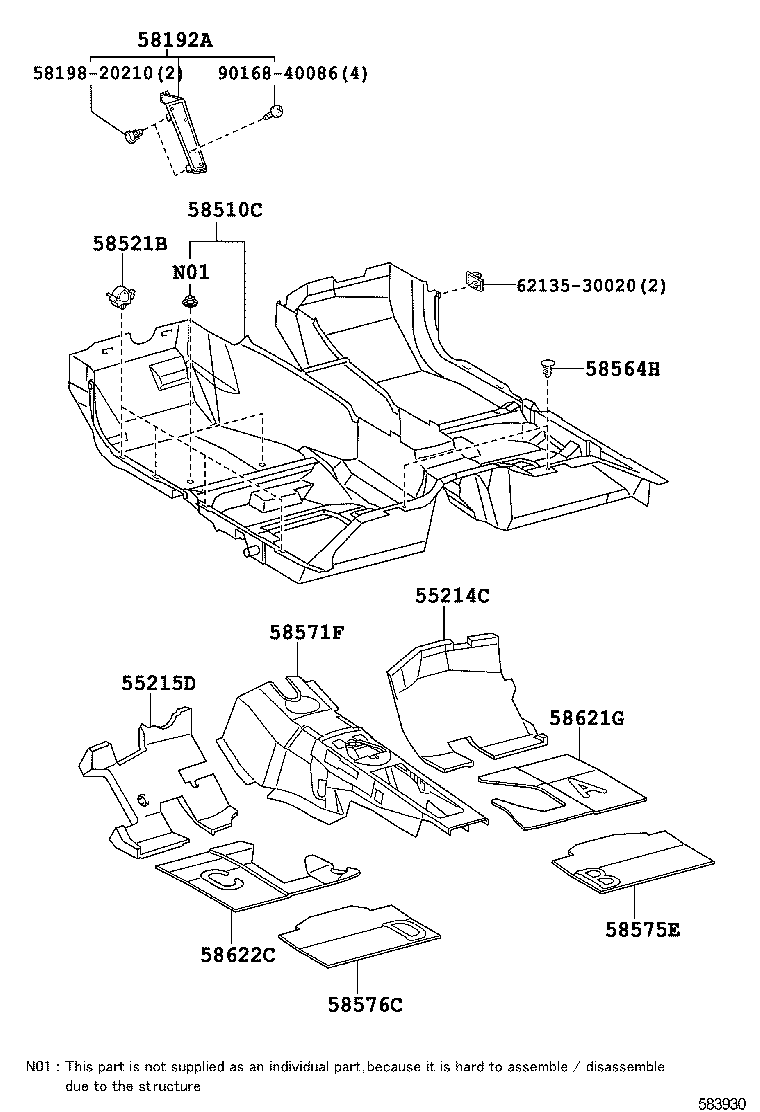

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-53040 |
USE20 |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-53020 |
USE20 |
1 | ||
| 58192A - FOOTREST, FRONT FLOOR, LH | ||||
| 58192-53061 |
USE20 |
1 | ||
| 58192-53060 |
USE20 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-53480C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-30140 |
USE20 |
8 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
USE20 BLACK |
2 | ||
| 90467-05164B8 |
USE20 LT.GRAY |
2 | ||
| 58571F - PAD, FRONT FLOOR, FRONT | ||||
| 58571-53010 |
USE20 |
1 | ||
| 58575E - PAD, FRONT FLOOR, REAR NO.1 | ||||
| 58575-53010 |
USE20 |
1 | ||
| 58575-53011 |
USE20 |
1 | ||
| 58576C - PAD, FRONT FLOOR, REAR NO.2 | ||||
| 58576-53011 |
USE20 |
1 | ||
| 58576-53010 |
USE20 |
1 | ||
| 58621G - PAD, FRONT FLOOR SILENCER, RH | ||||
| 58621-53041 |
USE20 |
1 | ||
| 58621-53040 |
USE20 |
1 | ||
| 58622C - PAD, FRONT FLOOR SILENCER, LH | ||||
| 58622-53040 |
USE20 |
1 | ||
| 58622-53041 |
USE20 |
1 | ||
| Common parts | ||||
| 58198-20210 | ||||
| 62135-30020 | ||||
| 90168-40086 | ||||
