USE20L-FEZRHV (2010)
Toyota Lexus Is F
Production
Aug 2010
-
Aug 2014
Engine
2URGSE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

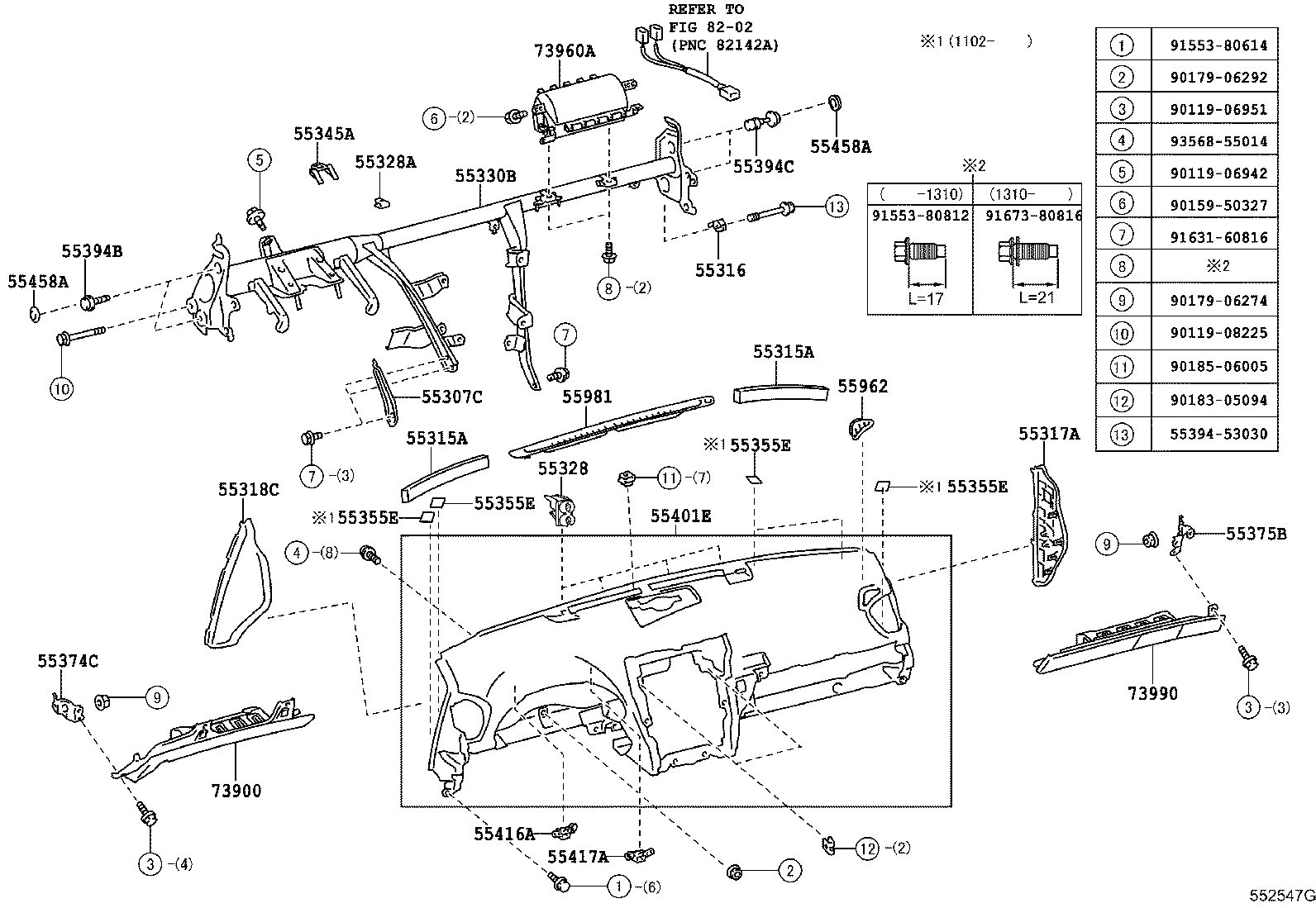

ILLUST NO. 1 OF 2(1008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55352-53040 |
USE20 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53010 |
USE20 |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53010 |
USE20 |
2 | ||
| 55316 - SPACER, INSTRUMENT PANEL, NO.2 | ||||
| 55315-53040 |
USE20 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-53070C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-53040C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-30140 |
USE20 |
4 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-50170 |
USE20 |
1 | ||
| 55328-48110 |
USE20 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-53270 |
USE20 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30060 |
USE20 |
4 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-53050 |
USE20 |
5 | ||
| 55355-53050 |
USE20 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-53050 |
USE20 |
5 | ||
| 55355-53050 |
USE20 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-53050 |
USE20 |
5 | ||
| 55355-53050 |
USE20 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-53050 |
USE20 |
5 | ||
| 55355-53050 |
USE20 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-53020 |
USE20 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-53050 |
USE20 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-50010 |
USE20 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-33041 |
USE20 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-53906C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30150 |
USE20 |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-30070 |
USE20 |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
USE20 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
USE20 |
4 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-53020C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-53010C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-53020C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-53060 |
USE20 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-53020C0 |
USE20 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 55394-53030 | ||||
| 90119-06942 | ||||
| 90119-06951 | ||||
| 90119-08225 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06292 | ||||
| 90183-05094 | ||||
| 90185-06005 | ||||
| 91553-80614 | ||||
| 91553-80812 | ||||
| 91631-60816 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||

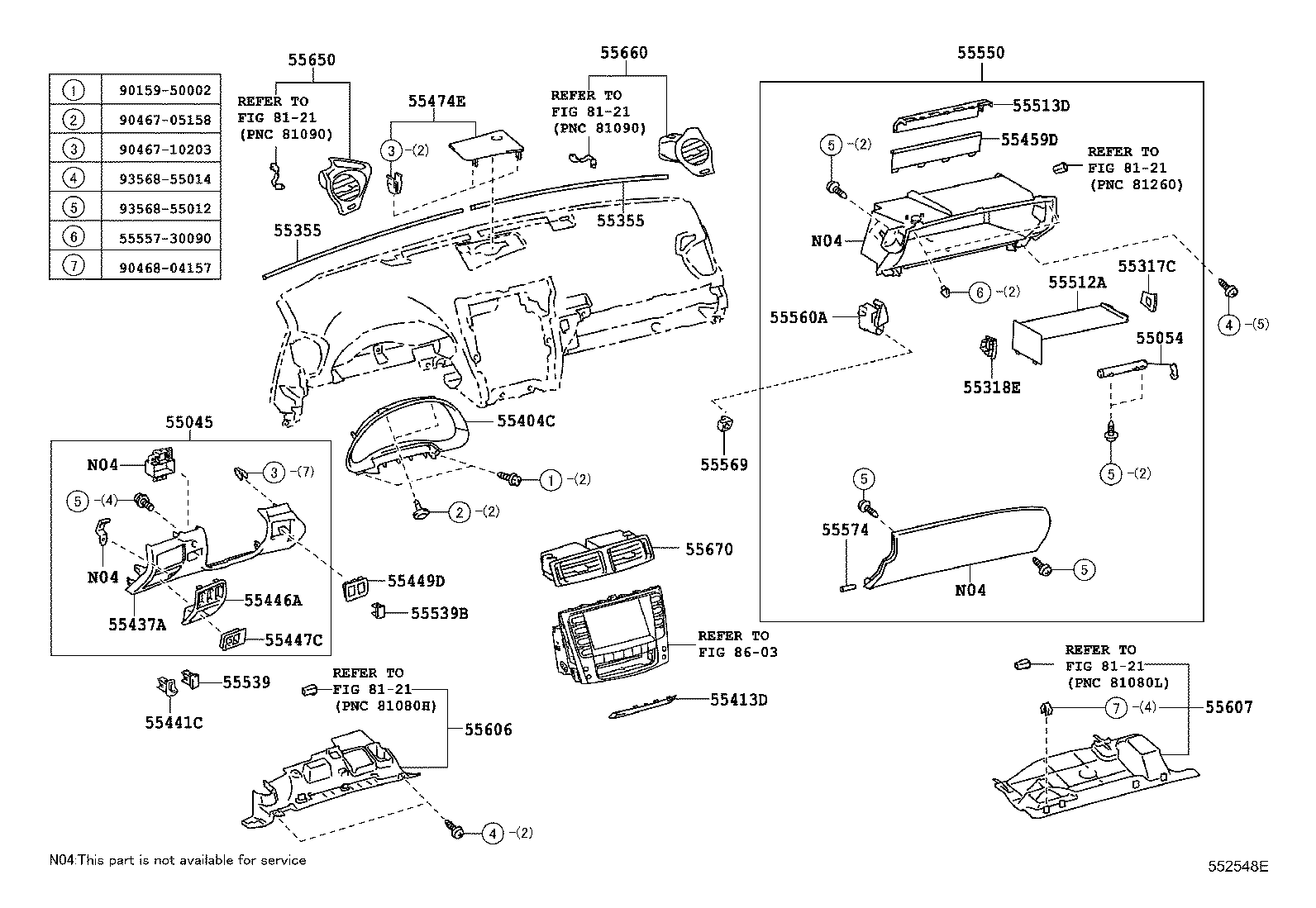

ILLUST NO. 2 OF 2(1008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-53063C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55045-53062C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-53040 |
USE20 |
1 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-53050 |
USE20 |
1 | ||
| 55317-53060 |
USE20 |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-53020 |
USE20 |
1 | ||
| 55318-53030 |
USE20 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30100 |
USE20 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30100 |
USE20 |
2 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-53050 |
USE20 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-53050 |
USE20 |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-53060 |
USE20 |
1 | ||
| 55413-53090 |
USE20 |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-53022C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55437-53023C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-53050C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-53032C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55446-53033C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-53041C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55447-53042C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-53021C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55449-53040C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
USE20 |
1 | ||
| 55459-30060 |
USE20 |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-53060C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-53020 |
USE20 |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-53020 |
USE20 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-44010C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-53061C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55550-53060C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-53030C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-53020C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-53010 |
USE20 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-53031 |
USE20 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-53030 |
USE20 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-53060C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-53060C0 |
USE20 BLACK,TRIM2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-53030 |
USE20 |
1 | ||
| Common parts | ||||
| 55557-30090 | ||||
| 90159-50002 | ||||
| 90467-05158 | ||||
| 90467-10203 | ||||
| 90468-04157 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
