GSE22R-AKTLK (2009)

Toyota Lexus Is250c/300c

Production Apr 2009 - Aug 2014
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

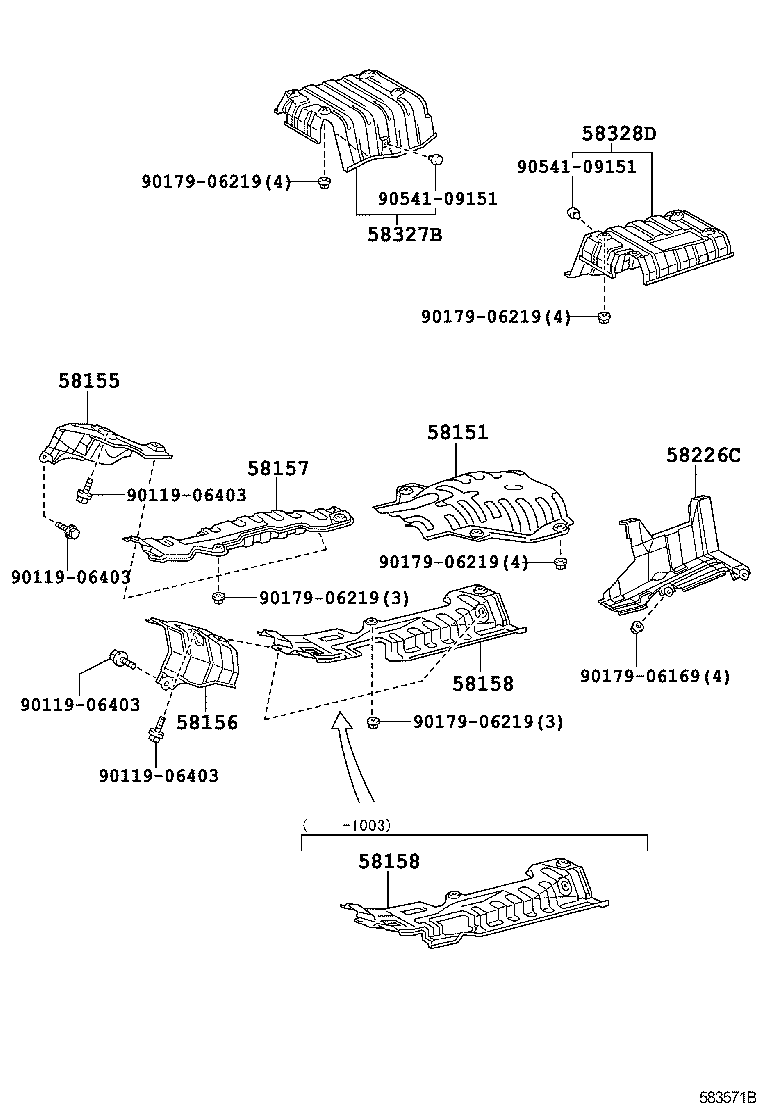

Click highlighted areas on diagram

diagram 58151 58155 58156 58157 58158 58158 58226C 58327B 58328D 9011906403 9011906403 9011906403 9011906403 9017906169 9017906219 9017906219 9017906219 9017906219 9017906219 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30130

GSE2#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-30040

GSE2#

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30080

GSE2#

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30073

GSE2#

 1
58157-30072

GSE2#

 1
58157-30071

GSE22

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30062

GSE2#

 1
58158-30061

GSE22

 1
58158-30063

GSE2#

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30062

GSE2#

 1
58158-30061

GSE22

 1
58158-30063

GSE2#

 1
58226C - PLATE, AIR GUIDE, OUTSIDE RH
58226-53010

GSE2#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-53020

GSE2#

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-53020

GSE2#

 1
Common parts
90119-06403
90179-06169
90179-06219
90541-09151
