GSE22L-AKTLKV (2009)
Toyota Lexus Is250c/300c
Production
Apr 2009
-
Jul 2015
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(0904- )
Click highlighted areas on diagram
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||
ILLUST NO. 2 OF 3(0904- )GCC
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-53040 |
GSE2#..GCC |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-53030 |
GSE2# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-53040 |
GSE2#..GCC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-53020 |
GSE2# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-53040 |
GSE2#..GCC |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-53040 |
GSE2#..GCC |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-30080 |
GSE2# |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-53010 |
GSE2# |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-53030 |
GSE2# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-30450 |
GSE2#..GCC |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30440 |
GSE2#..GCC |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-30470 |
GSE2#..GCC |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-05162B0 |
GSE2# DK.GRAY |
3 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-05162B0 |
GSE2# DK.GRAY |
3 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30431 |
GSE2# |
1 | ||
| 87212-30430 |
GSE2# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30371 |
GSE2# |
1 | ||
| 87213-30370 |
GSE2# |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-53010 |
GSE2# |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-53010 |
GSE2# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-50346 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(0904- )GCC
Click highlighted areas on diagram

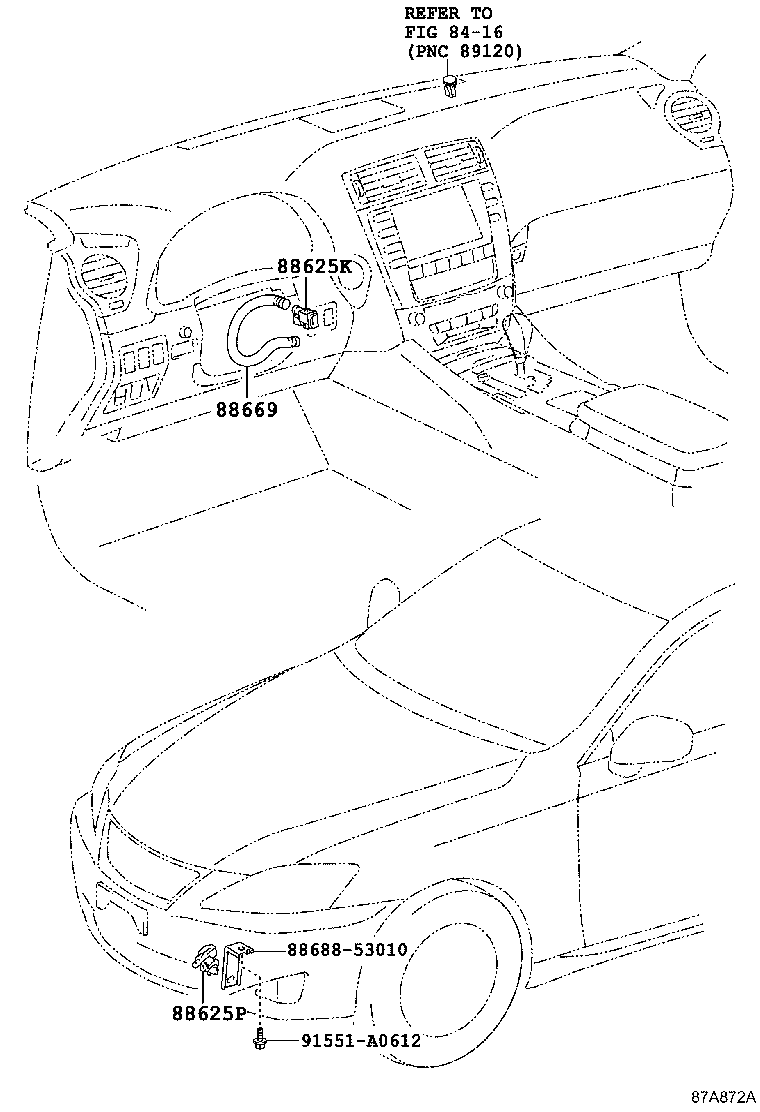

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625K - THERMISTOR, COOLER | ||||
| 88625-47021 |
GSE2# |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
GSE2# |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-30050 |
GSE2# |
1 | ||
| Common parts | ||||
| 88688-53010 | ||||
| 91551-A0612 | ||||
| Linked diagrams | ||||
| 8416 | ||||
