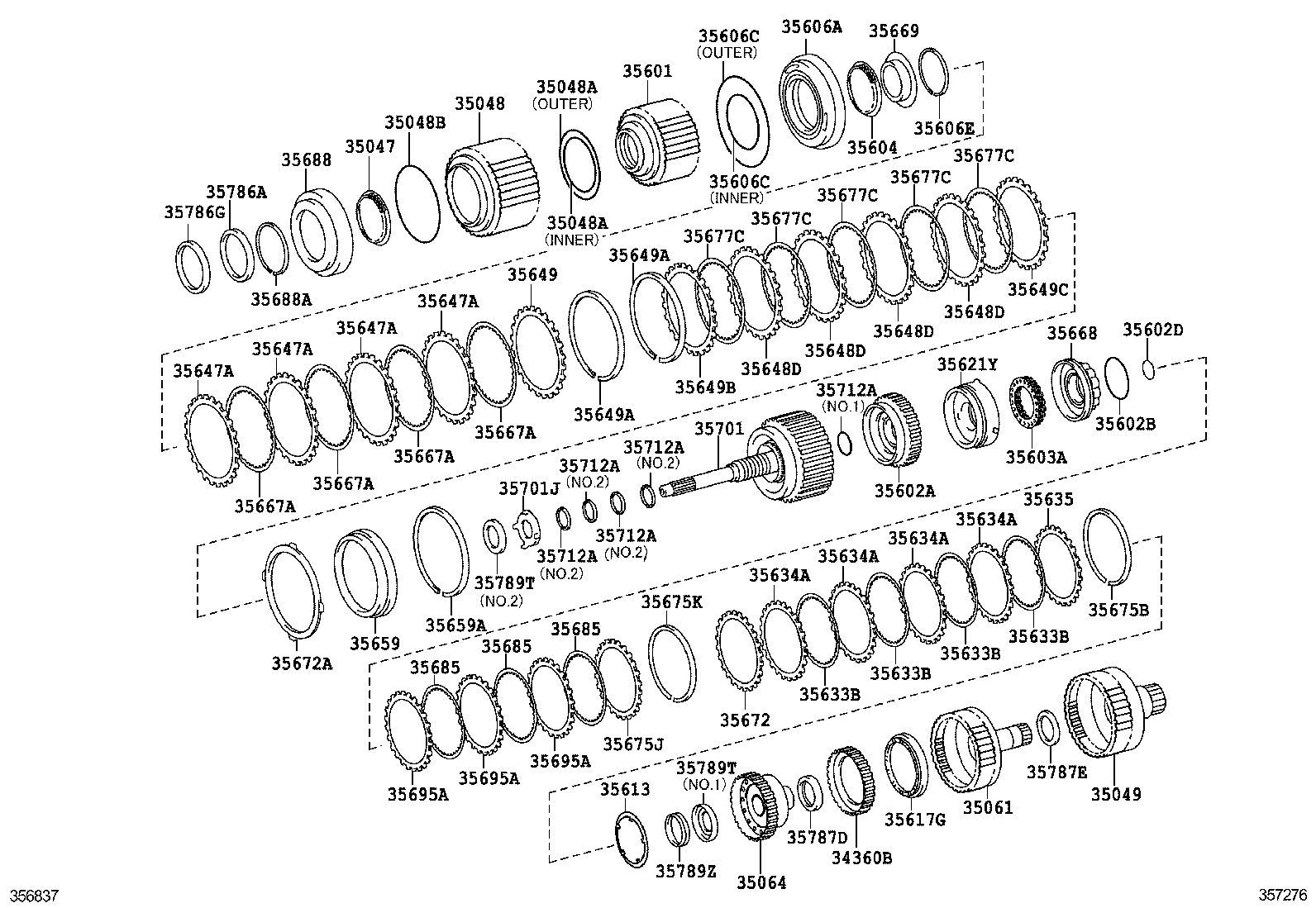

GSE22L-AKTLKV (2009)
Toyota Lexus Is250c/300c
(0904- )GSE22
A760E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34360B - CLUTCH ASSY, UNDERDRIVE 1 WAY | ||||
| 34360-50010 |
GSE22 |
1 | ||
| 35047 - SPRING SUB-ASSY, REVERSE CLUTCH RETURN | ||||
| 35047-60010 |
GSE22 |
1 | ||
| 35048 - PISTON SUB-ASSY, REVERSE CLUTCH | ||||
| 35048-60010 |
GSE22 |
1 | ||
| 35048A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99147 |
GSE22 INNER |
1 | ||
| 90301-99141 |
GSE22 OUTER |
1 | ||
| 35048A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99147 |
GSE22 INNER |
1 | ||
| 90301-99141 |
GSE22 OUTER |
1 | ||
| 35048B - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99140 |
GSE22 |
1 | ||
| 35049 - HUB SUB-ASSY, REVERSE CLUTCH | ||||
| 35049-30020 |
GSE22 |
1 | ||
| 35061 - HUB SUB-ASSY, FORWARD CLUTCH | ||||
| 35061-50010 |
GSE22 |
1 | ||
| 35064 - HUB SUB-ASSY, COAST CLUTCH | ||||
| 35064-50010 |
GSE22 |
1 | ||
| 35601 - DRUM SUB-ASSY, CLUTCH | ||||
| 35601-50030 |
GSE22 |
1 | ||
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-50020 |
GSE22 |
1 | ||
| 35602-34020 |
GSE22 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-98004 |
GSE22 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35003 |
GSE22 |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50030 |
GSE22 |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-60020 |
GSE22 |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35652-30061 |
GSE22 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-74004 |
GSE22 INNER |
1 | ||
| 90301-74002 |
GSE22 INNER |
1 | ||
| 90301-99149 |
GSE22 OUTER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-74004 |
GSE22 INNER |
1 | ||
| 90301-74002 |
GSE22 INNER |
1 | ||
| 90301-99149 |
GSE22 OUTER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-64003 |
GSE2# |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 35613-50011 |
GSE22 |
1 | ||
| 35613-50010 |
GSE22 |
1 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35614-50010 |
GSE22 |
1 | ||
| 35621Y - PISTON, COAST CLUTCH | ||||
| 35621-50010 |
GSE22 |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GSE22 |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GSE22 |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GSE22 |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GSE22 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GSE22 T=2.4 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GSE22 T=2.4 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GSE22 T=2.4 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GSE22 T=2.4 |
4 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-60050 |
GSE22 T=3.4,MARK 4 |
1 | ||
| 35635-60020 |
GSE22 T=3.1,MARK 1 |
1 | ||
| 35635-60040 |
GSE22 T=3.3,MARK 3 |
1 | ||
| 35635-60030 |
GSE22 T=3.2,MARK 2 |
1 | ||
| 35635-60090 |
GSE22 T=3.8,MARK 8 |
1 | ||
| 35635-60060 |
GSE22 T=3.5,MARK 5 |
1 | ||
| 35635-60010 |
GSE22 T=3.0,MARK 0 |
1 | ||
| 35635-60070 |
GSE22 T=3.6,MARK 6 |
1 | ||
| 35635-60080 |
GSE22 T=3.7,MARK 7 |
1 | ||
| 35635-60110 |
GSE22 T=4.0,MARK A |
1 | ||
| 35635-60100 |
GSE22 T=3.9,MARK 9 |
1 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GSE22 |
4 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GSE22 |
4 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GSE22 |
4 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GSE22 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-50010 |
GSE22 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-50010 |
GSE22 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-50010 |
GSE22 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-50010 |
GSE22 |
4 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-60030 |
GSE22 T=3.0,MARK 2 |
1 | ||
| 35649-60040 |
GSE22 T=3.1.MARK 3 |
1 | ||
| 35649-60080 |
GSE22 T=3.5,MARK 7 |
1 | ||
| 35649-60110 |
GSE22 T=3.8,MARK A |
1 | ||
| 35649-60050 |
GSE22 T=3.2,MARK 4 |
1 | ||
| 35649-60100 |
GSE22 T=3.7,MARK 9 |
1 | ||
| 35649-60090 |
GSE22 T=3.6,MARK 8 |
1 | ||
| 35649-60060 |
GSE22 T=3.3,MARK 5 |
1 | ||
| 35649-60070 |
GSE22 T=3.4,MARK 6 |
1 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99074 |
GSE22 |
2 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99074 |
GSE22 |
2 | ||
| 35649B - FLANGE, REVERSE CLUTCH | ||||
| 35649-60030 |
GSE22 T=3.0,MARK 2 |
1 | ||
| 35649C - FLANGE, REVERSE CLUTCH | ||||
| 35649-60010 |
GSE22 T=2.8,MARK 0 |
1 | ||
| 35649-60060 |
GSE22 T=3.3,MARK 5 |
1 | ||
| 35649-60080 |
GSE22 T=3.5,MARK 7 |
1 | ||
| 35649-60040 |
GSE22 T=3.1.MARK 3 |
1 | ||
| 35649-60030 |
GSE22 T=3.0,MARK 2 |
1 | ||
| 35649-60050 |
GSE22 T=3.2,MARK 4 |
1 | ||
| 35649-60110 |
GSE22 T=3.8,MARK A |
1 | ||
| 35649-60100 |
GSE22 T=3.7,MARK 9 |
1 | ||
| 35649-60020 |
GSE22 T=2.9,MARK 1 |
1 | ||
| 35649-60090 |
GSE22 T=3.6,MARK 8 |
1 | ||
| 35649-60070 |
GSE22 T=3.4,MARK 6 |
1 | ||
| 35659 - SLEEVE, REVERSE CLUTCH REACTION | ||||
| 35659-60020 |
GSE22 |
1 | ||
| 35659A - RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE) | ||||
| 90520-99083 |
GSE22 |
1 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GSE22 |
4 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GSE22 |
4 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GSE22 |
4 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GSE22 |
4 | ||
| 35668 - BALANCER, CLUTCH, NO.1 | ||||
| 35668-50010 |
GSE22 |
1 | ||
| 35669 - BALANCER, CLUTCH, NO.2 | ||||
| 35669-60010 |
GSE22 |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-50040 |
GSE22 |
1 | ||
| 35672A - PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35672-60020 |
GSE22 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99082 |
GSE22 |
1 | ||
| 35675J - FLANGE, COAST CLUTCH | ||||
| 35675-50030 |
GSE22 T=3.2 |
1 | ||
| 35675-50020 |
GSE22 T=3.1 |
1 | ||
| 35675-50100 |
GSE22 T=3.9 |
1 | ||
| 35675-50070 |
GSE22 T=3.6 |
1 | ||
| 35675-50090 |
GSE22 T=3.8 |
1 | ||
| 35675-50050 |
GSE22 T=3.4 |
1 | ||
| 35675-50080 |
GSE22 T=3.7 |
1 | ||
| 35675-50060 |
GSE22 T=3.5 |
1 | ||
| 35675-50040 |
GSE22 T=3.3 |
1 | ||
| 35675-50010 |
GSE22 T=3.0 |
1 | ||
| 35675K - RING, SNAP (FOR COAST CLUTCH FLANGE) | ||||
| 90520-99089 |
GSE22 |
1 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-50050 |
GSE22 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-50050 |
GSE22 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-50050 |
GSE22 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-50050 |
GSE22 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-50050 |
GSE22 |
5 | ||
| 35685 - DISC, COAST CLUTCH | ||||
| 35685-50010 |
GSE22 |
3 | ||
| 35685 - DISC, COAST CLUTCH | ||||
| 35685-50010 |
GSE22 |
3 | ||
| 35685 - DISC, COAST CLUTCH | ||||
| 35685-50010 |
GSE22 |
3 | ||
| 35688 - BALANCER, CLUTCH, NO.3 | ||||
| 35688-50010 |
GSE22 |
1 | ||
| 35688A - RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING) | ||||
| 90520-79001 |
GSE2# |
1 | ||
| 35695A - PLATE, COAST CLUTCH | ||||
| 35695-50010 |
GSE22 |
3 | ||
| 35695A - PLATE, COAST CLUTCH | ||||
| 35695-50010 |
GSE22 |
3 | ||
| 35695A - PLATE, COAST CLUTCH | ||||
| 35695-50010 |
GSE22 |
3 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30130 |
GSE22 |
1 | ||
| 35701-30131 |
GSE22 |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-34011 |
GSE22 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GSE22 NO.2 |
4 | ||
| 90301-33017 |
GSE22 NO.1 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GSE22 NO.2 |
4 | ||
| 90301-33017 |
GSE22 NO.1 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GSE22 NO.2 |
4 | ||
| 90301-33017 |
GSE22 NO.1 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GSE22 NO.2 |
4 | ||
| 90301-33017 |
GSE22 NO.1 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GSE22 NO.2 |
4 | ||
| 90301-33017 |
GSE22 NO.1 |
1 | ||
| 35786A - RACE, THRUST BEARING, NO.1 | ||||
| 35786-60010 |
GSE2# |
1 | ||
| 35786G - BEARING,THRUST NEEDLE ROLLER | ||||
| 90374-71001 |
GSE2# |
1 | ||
| 35787D - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-35006 |
GSE22 |
1 | ||
| 35787E - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-42008 |
GSE2# |
1 | ||
| 35789T - RACE, THRUST BEARING (INPUT SHAFT REAR) | ||||
| 35789-50060 |
GSE22 NO.2 |
1 | ||
| 35789-50050 |
GSE22 NO.1 |
1 | ||
| 35789T - RACE, THRUST BEARING (INPUT SHAFT REAR) | ||||
| 35789-50060 |
GSE22 NO.2 |
1 | ||
| 35789-50050 |
GSE22 NO.1 |
1 | ||
| 35789Z - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-21004 |
GSE22 |
1 | ||
