GSE22L-AKTLKV (2009)

Toyota Lexus Is250c/300c

Production Apr 2009 - Jul 2015
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

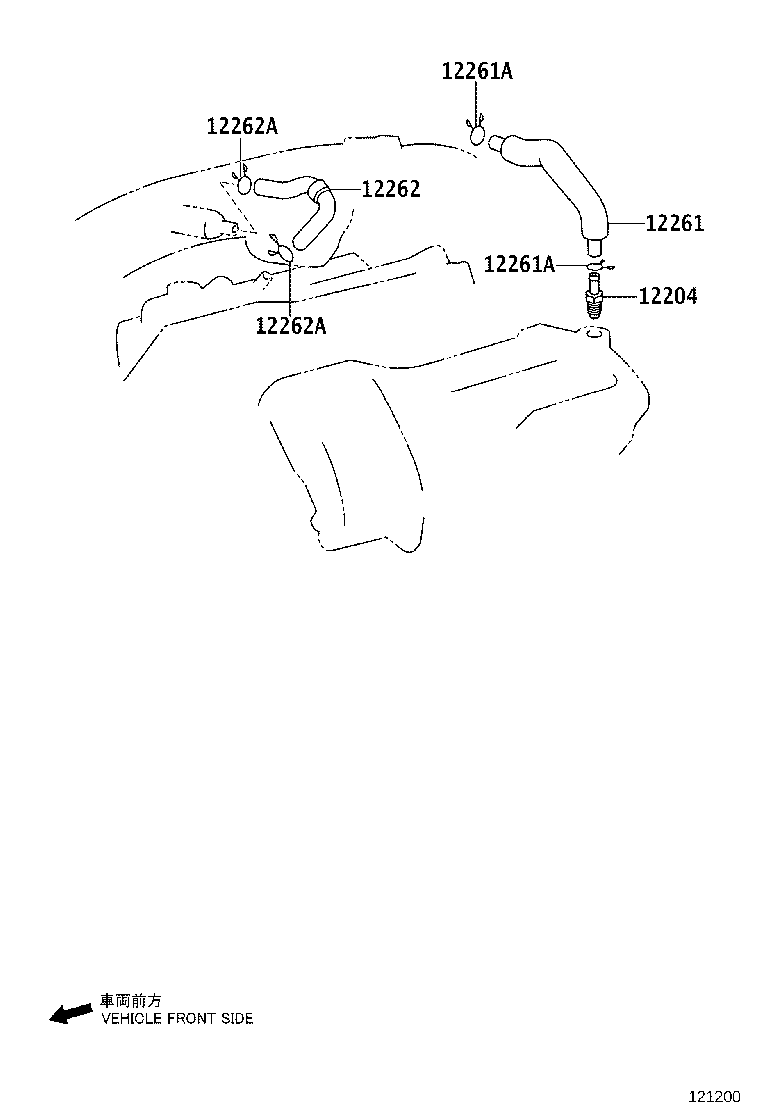

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31040

3GRFE,4GRFSE..GSE2#

 1
12261 - HOSE, VENTILATION
12261-31040

3GRFE..GSE22

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

3GRFE,4GRFSE..GSE2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

3GRFE,4GRFSE..GSE2#

 2
12262 - HOSE, VENTILATION, NO.2
12262-31040

3GRFE..GSE22

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

3GRFE,4GRFSE..GSE2#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

3GRFE,4GRFSE..GSE2#

 2
