GSE22L-AKTLKV (2009)

Toyota Lexus Is250c/300c

Production Apr 2009 - Jul 2015
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

Click highlighted areas on diagram

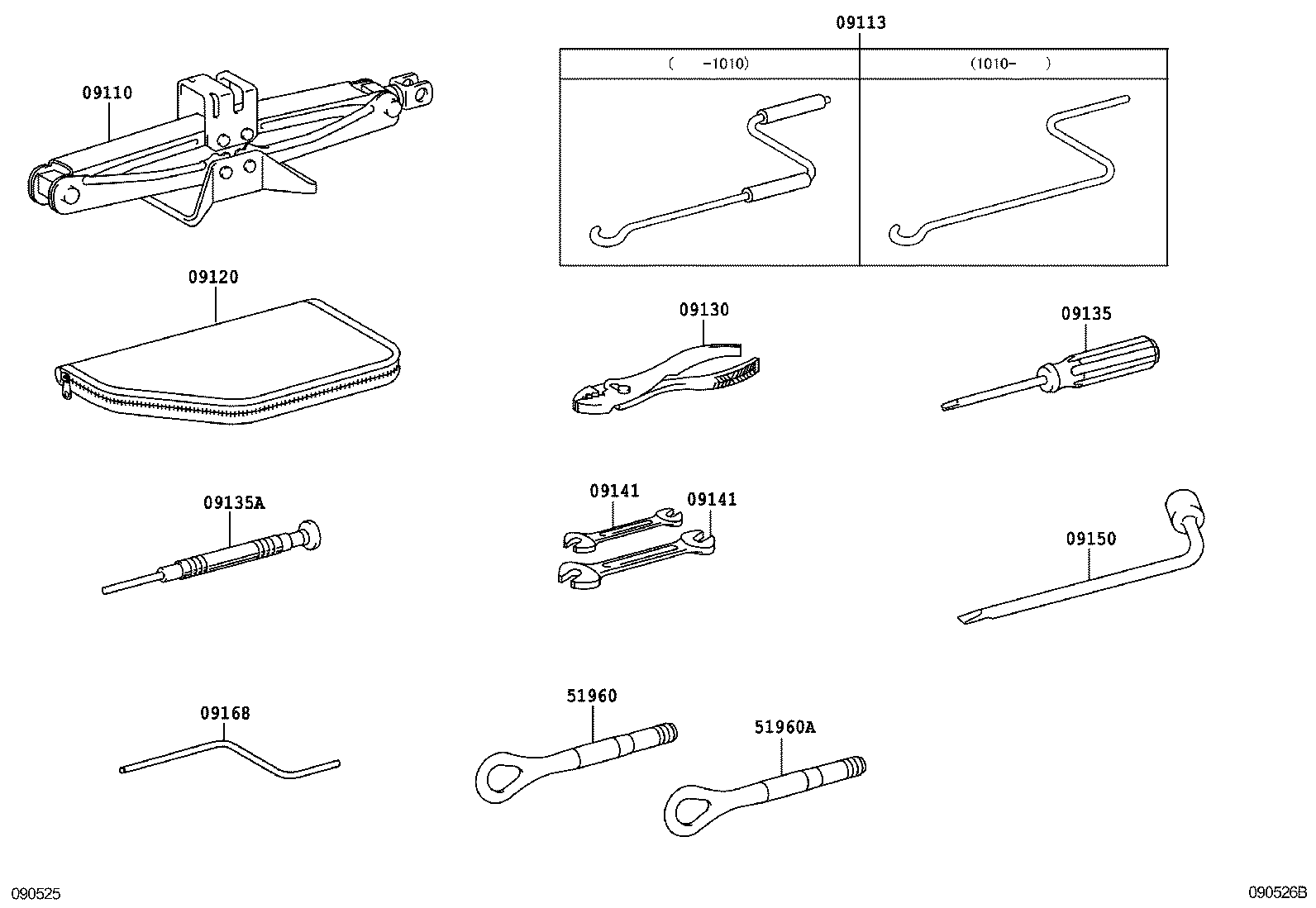

diagram 09110 09113 09120 09130 09135 09135A 09141 09141 09150 09168 51960 51960A
Part # Description Qty Price
09110 - JACK ASSY
09111-50051

GSE22

 1
09111-33030

GSE2#

 1
09111-50070

GSE22..GCC

CHINA SPEC

 1
09113 - HANDLE, JACK
09113-13040

GSE2#

 1
09113-22020

GSE2#

 1
09120 - BAG, TOOL
09120-53040

GSE2#..GCC

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI

 1
09120-53040

GSE2#..GCC

AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI

 1
09120-53030

GSE2#

 1
09130 - PLIERS
09130-50040

GSE2#

 1
09130-50030

GSE22

 1
09135 - DRIVER, SCREW
99915-10700

GSE2#

 1
09135-50040

GSE22

 1
09135A - BIT, SCREW DRIVER
09135-53010

GSE22..GCC

CHINA SPEC&AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 2
09135-53010

GSE22..GCC

CHINA SPEC&AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-HDD NAVIGATION

 2
09135-53010

GSE22..GCC

AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 2
09135-53010

GSE22..GCC

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&EMV & NAVIGATION SYSTEM-DVD NAVIGATION

 2
09141 - SPANNER
09141-50050

GSE22

8 X 10

 1
09141-60010

GSE2#

8 X 10

 1
09141-50060

GSE22

12 X 14

 1
09141-60020

GSE2#

12 X 14

 1
09141 - SPANNER
09141-50050

GSE22

8 X 10

 1
09141-60010

GSE2#

8 X 10

 1
09141-50060

GSE22

12 X 14

 1
09141-60020

GSE2#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-50010

GSE22

 1
09150-76020

GSE2#

 1
09150-53010

GSE2#

 1
09168 - WRENCH, ROOF PANEL
09168-53010

GSE2#

 1
51960 - HOOK ASSY, FRONT
51961-53010

GSE2#

 1
51960A - HOOK ASSY, REAR
51961-53010

GSE2#

 2
