GSE22R-AETLK (2006)

Toyota Lexus Is250/300

Production Apr 2006 - Aug 2008

Engine 3GRFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0604-0808)

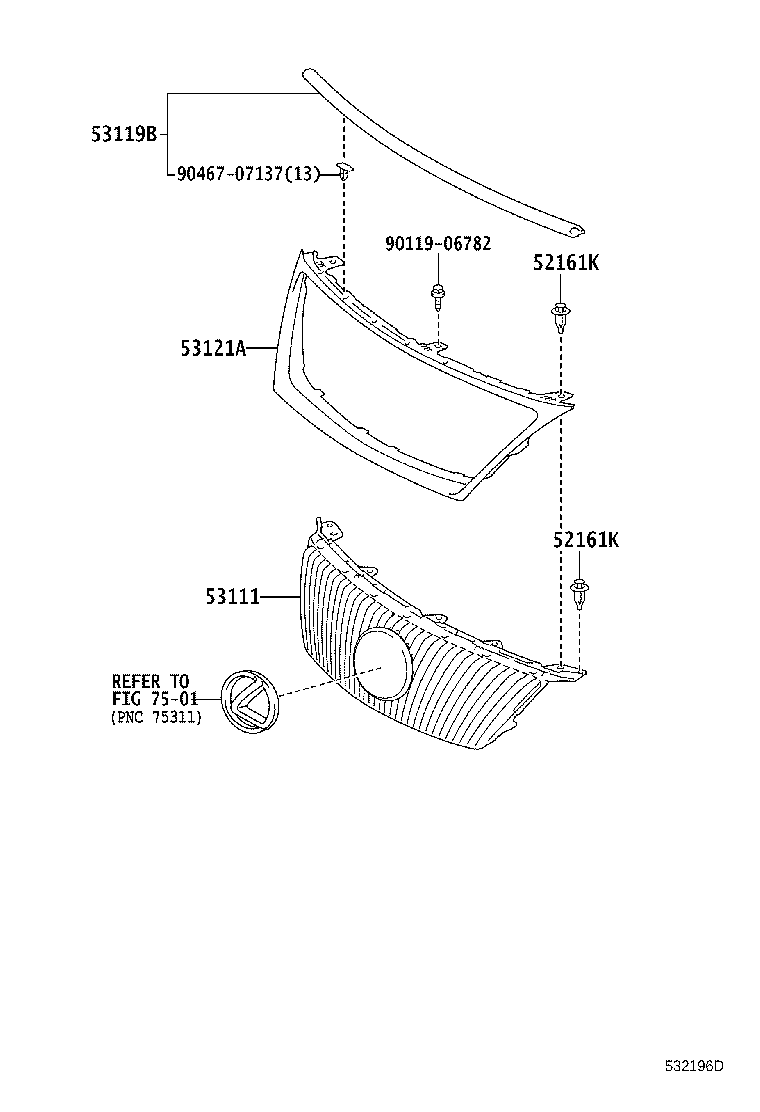

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
52161K - PIECE, FRONT BUMPER
52161-16010	GSE22	04/2006 - 08/2008	4
52161K - PIECE, FRONT BUMPER
52161-16010	GSE22	04/2006 - 08/2008	4
53111 - GRILLE, RADIATOR
53111-53120	GSE22 NO PAINT REQ.	04/2006 - 08/2008	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-53010	GSE22	04/2006 - 08/2008	1
53121A - MOULDING, RADIATOR GRILLE
52711-53010	GSE22	04/2006 - 08/2008	1
Common parts
90119-06782
90467-07137
Linked diagrams
7501
