GSE22R-AETLK (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0604- )

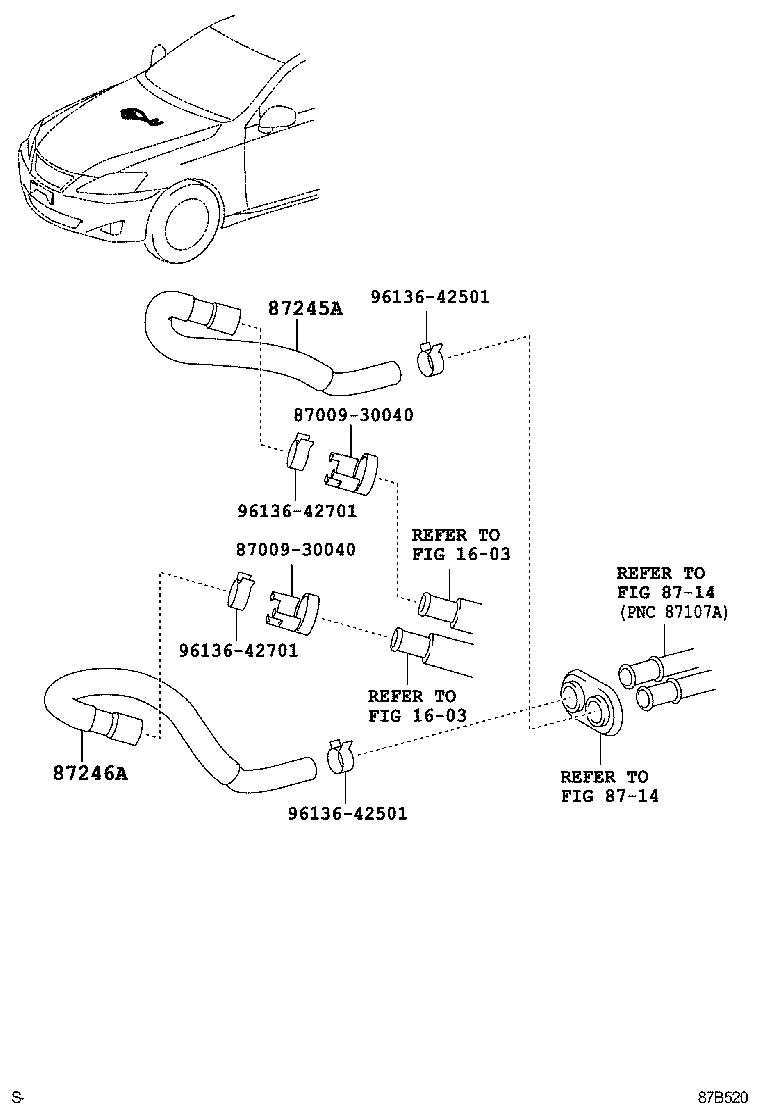

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3F440 |
GSE22 |
1 | ||
| 87245-3F440 |
GSE22 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3F540 |
GSE22 |
1 | ||
| 87245-3F540 |
GSE22 |
1 | ||
| Common parts | ||||
| 87009-30040 | ||||
| 96136-42501 | ||||
| 96136-42701 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
