Toyota Lexus is250/300 GSE22 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82210-3A211	GSE22..GEN LABEL=87050-30110	04/2006 - 09/2006	1
82212-30013	GSE22..GEN	08/2008 - 08/2010	1
87020A - DAMPER ASSY, HEATER AIR
87020-30010	GSE22..GEN	08/2008 - 08/2010	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30110	GSE22..GEN LABEL=87050-30110	04/2006 - 09/2006	1
87050-30210	GSE22..GEN	08/2008 - 08/2010	1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30400	GSE22..GEN	04/2006 - 08/2008	1
87103-30400	GSE22..GEN	08/2008 - 08/2010	1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-30440	GSE22	04/2006 - 08/2008	1
87106-30440	GSE22	08/2008 - 08/2010	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430	GSE22 NO.1	04/2006 - 08/2008	1
87106-30450	GSE22 NO.2	04/2006 - 08/2008	2
87106-30430	GSE22 NO.1	08/2008 - 08/2010	1
87106-30450	GSE22 NO.2	08/2008 - 08/2010	2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430	GSE22 NO.1	04/2006 - 08/2008	1
87106-30450	GSE22 NO.2	04/2006 - 08/2008	2
87106-30430	GSE22 NO.1	08/2008 - 08/2010	1
87106-30450	GSE22 NO.2	08/2008 - 08/2010	2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430	GSE22 NO.1	04/2006 - 08/2008	1
87106-30450	GSE22 NO.2	04/2006 - 08/2008	2
87106-30430	GSE22 NO.1	08/2008 - 08/2010	1
87106-30450	GSE22 NO.2	08/2008 - 08/2010	2
87106L - SERVO SUB-ASSY, DAMPER
87106-30470	GSE22..GEN	04/2006 - 08/2008	1
87106-30470	GSE22..GEN	08/2008 - 08/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30560	GSE22	04/2006 - 08/2008	1
87107-30560	GSE22	08/2008 - 08/2010	1
87130D - BLOWER ASSY
87130-30790	GSE22..GEN	04/2006 - 06/2008	1
87130-30791	GSE22..GEN	08/2008 - 08/2010	1
87139C - FILTER, CLEAN AIR
87139-50060	GSE22 DEODORANT FILTER	04/2006 - 08/2008	1
87139-30040	GSE22 *393	04/2006 - 08/2008	1
87139-30040	GSE22 *393	08/2008 - 08/2010	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A060	GSE22..GEN LABEL=87050-30110	04/2006 - 09/2006	1
88501-3A160	GSE22	08/2008 - 08/2010	1
88515 - VALVE, COOLER EXPANSION
88515-28180	GSE22	04/2006 - 08/2008	1
88515-28180	GSE22	08/2008 - 08/2010	1
88578B - PACKING, COOLING UNIT, NO.1
88578-30830	GSE22	08/2008 - 08/2010	1
88578-30830	GSE22..GEN	04/2006 - 08/2008	1
88578C - PACKING, COOLING UNIT, NO.2
88578-30840	GSE22	04/2006 - 01/2008	1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-3A170	GSE22..GEN	08/2009 - 08/2010	1
88613A - LEVER, COOLER CONTROL, NO.1
88613-30010	GSE22	04/2006 - 08/2008	1
88625 - THERMISTOR, COOLER, NO.1
88620-30020	GSE22	08/2008 - 08/2010	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-53110	GSE22 P/N LABEL=8865053110	04/2006 - 05/2006	1
88650-53120	GSE22 SEAT HEATER-HEAT & COOL,P/N LABEL=8865053120	04/2006 - 05/2006	1
88650-53210	GSE22..GEN	08/2008 - 08/2009	1
88650-53290	GSE22..GEN	08/2009 - 03/2010	1
88650-53220	GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER	08/2008 - 08/2009	1
88650-53291	GSE22..GEN	04/2010 - 08/2010	1
88650-53300	GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER	08/2009 - 05/2010	1
88650-53301	GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER	06/2010 - 08/2010	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A260	GSE22..GEN	04/2006 - 08/2008	1
88710-3A260	GSE22	08/2008 - 08/2010	1
Common parts
87128-30050
87128-35020
88718-30190
88897-35030
88899-3A080
88899-44050
90099-00318
90119-06952
90159-50327
90159-60195
90179-06282

GSE22R-AETLK (2008)

ILLUST NO. 2 OF 2(0604- )

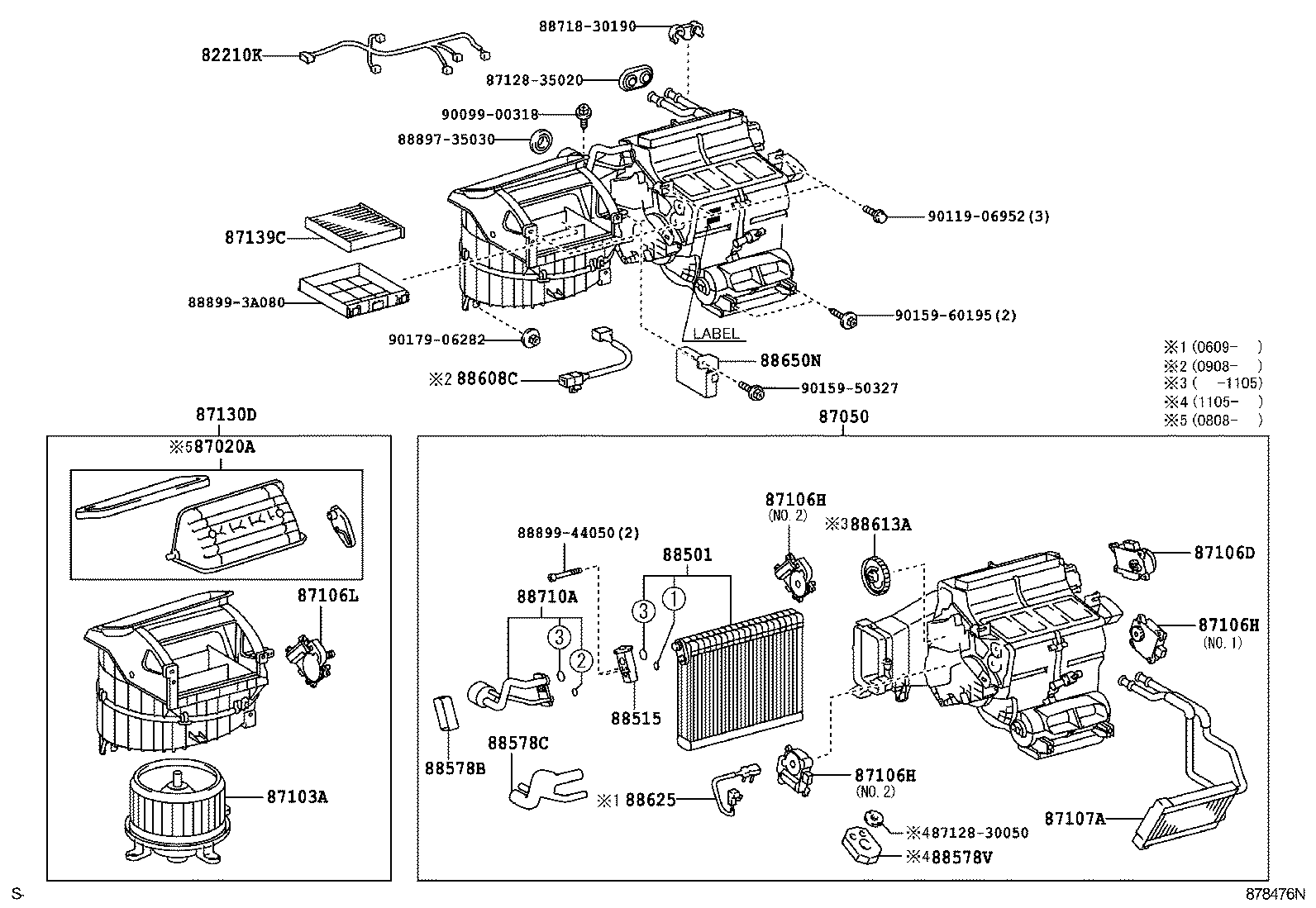

ILLUST NO. 1 OF 2(0604- )GEN
