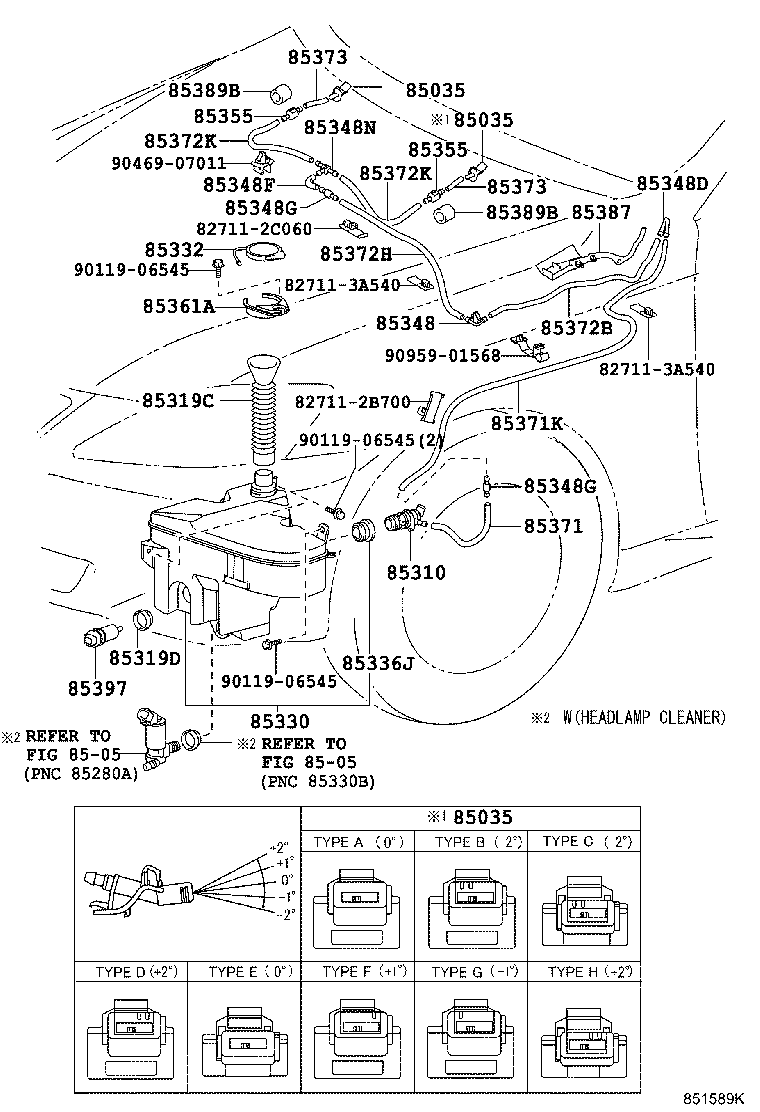

GSE22R-AETLK (2008)
Toyota Lexus Is250/300
(0604-1012)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30110 |
GSE22 ANGLE 0,TYPE A:REFER ILLUST. |
2 | ||
| 85381-30160 |
GSE22 ANGLE -2,TYPE B:REFER ILLUST. |
2 | ||
| 85381-30110 |
GSE22 ANGLE 0,TYPE A:REFER ILLUST. |
2 | ||
| 85381-30130 |
GSE22 ANGLE +1,TYPE F:REFER ILLUST. |
2 | ||
| 85381-30150 |
GSE22 ANGLE +2,TYPE D:REFER ILLUST. |
2 | ||
| 85381-30160 |
GSE22 ANGLE -2,TYPE B:REFER ILLUST. |
2 | ||
| 85381-30140 |
GSE22 ANGLE -1,TYPE G:REFER ILLUST. |
2 | ||
| 85381-30150 |
GSE22 ANGLE +2,TYPE D:REFER ILLUST. |
2 | ||
| 85381-30130 |
GSE22 ANGLE +1,TYPE F:REFER ILLUST. |
2 | ||
| 85381-30140 |
GSE22 ANGLE -1,TYPE G:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30110 |
GSE22 ANGLE 0,TYPE A:REFER ILLUST. |
2 | ||
| 85381-30160 |
GSE22 ANGLE -2,TYPE B:REFER ILLUST. |
2 | ||
| 85381-30110 |
GSE22 ANGLE 0,TYPE A:REFER ILLUST. |
2 | ||
| 85381-30130 |
GSE22 ANGLE +1,TYPE F:REFER ILLUST. |
2 | ||
| 85381-30150 |
GSE22 ANGLE +2,TYPE D:REFER ILLUST. |
2 | ||
| 85381-30160 |
GSE22 ANGLE -2,TYPE B:REFER ILLUST. |
2 | ||
| 85381-30140 |
GSE22 ANGLE -1,TYPE G:REFER ILLUST. |
2 | ||
| 85381-30150 |
GSE22 ANGLE +2,TYPE D:REFER ILLUST. |
2 | ||
| 85381-30130 |
GSE22 ANGLE +1,TYPE F:REFER ILLUST. |
2 | ||
| 85381-30140 |
GSE22 ANGLE -1,TYPE G:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30110 |
GSE22 ANGLE 0,TYPE A:REFER ILLUST. |
2 | ||
| 85381-30160 |
GSE22 ANGLE -2,TYPE B:REFER ILLUST. |
2 | ||
| 85381-30110 |
GSE22 ANGLE 0,TYPE A:REFER ILLUST. |
2 | ||
| 85381-30130 |
GSE22 ANGLE +1,TYPE F:REFER ILLUST. |
2 | ||
| 85381-30150 |
GSE22 ANGLE +2,TYPE D:REFER ILLUST. |
2 | ||
| 85381-30160 |
GSE22 ANGLE -2,TYPE B:REFER ILLUST. |
2 | ||
| 85381-30140 |
GSE22 ANGLE -1,TYPE G:REFER ILLUST. |
2 | ||
| 85381-30150 |
GSE22 ANGLE +2,TYPE D:REFER ILLUST. |
2 | ||
| 85381-30130 |
GSE22 ANGLE +1,TYPE F:REFER ILLUST. |
2 | ||
| 85381-30140 |
GSE22 ANGLE -1,TYPE G:REFER ILLUST. |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
GSE22 |
1 | ||
| 85330-60190 |
GSE22 |
1 | ||
| 85319C - HOSE, WASHER | ||||
| 85319-30360 |
GSE22 |
1 | ||
| 85319-30360 |
GSE22 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GSE22 |
1 | ||
| 85319-33230 |
GSE22 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-30040 |
GSE22 |
1 | ||
| 85315-30380 |
GSE22 |
1 | ||
| 85355-30040 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-48050 |
GSE22 |
1 | ||
| 85316-48050 |
GSE22 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60300 |
GSE22 |
1 | ||
| 85336-60300 |
GSE22 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-33070 |
GSE22 |
1 | ||
| 85375-33070 |
GSE22 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-12360 |
GSE22 |
1 | ||
| 85355-12360 |
GSE22 |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-14481 |
GSE22 |
1 | ||
| 85355-14481 |
GSE22 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GSE22 |
2 | ||
| 85349-89122 |
GSE22 |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GSE22 |
2 | ||
| 85349-89122 |
GSE22 |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-28110 |
GSE22 |
1 | ||
| 85375-28110 |
GSE22 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-26020 |
GSE22 |
2 | ||
| 85321-26020 |
GSE22 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-26020 |
GSE22 |
2 | ||
| 85321-26020 |
GSE22 |
2 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30380 |
GSE22 |
1 | ||
| 85337-30380 |
GSE22 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GSE22 *H,L=150 |
1 | ||
| 90099-33080 |
GSE22 *H,L=150 |
1 | ||
| 90099-33080 |
GSE22 *H,L=150,HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85371K - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GSE22 *H,L=1330 |
1 | ||
| 90099-33080 |
GSE22 *H,L=1330 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GSE22 *H,L=450 |
1 | ||
| 90099-33080 |
GSE22 *H,L=450 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GSE22 *H,L=600 |
1 | ||
| 90099-33080 |
GSE22 *H,L=600 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GSE22 *H,L=300 |
2 | ||
| 90099-33080 |
GSE22 *H,L=300 |
2 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GSE22 *H,L=300 |
2 | ||
| 90099-33080 |
GSE22 *H,L=300 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GSE22 *H,L=60 |
2 | ||
| 90099-33080 |
GSE22 *H,L=60 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GSE22 *H,L=60 |
2 | ||
| 90099-33080 |
GSE22 *H,L=60 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-53070 |
GSE22 |
1 | ||
| 85387-53070 |
GSE22 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-26080 |
GSE22 |
2 | ||
| 85389-26080 |
GSE22 |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-26080 |
GSE22 |
2 | ||
| 85389-26080 |
GSE22 |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-33230 |
GSE22 |
1 | ||
| 85397-30400 |
GSE22 |
1 | ||
| Common parts | ||||
| 82711-2B700 | ||||
| 82711-2C060 | ||||
| 82711-3A540 | ||||
| 90119-06545 | ||||
| 90469-07011 | ||||
| 90959-01568 | ||||
| Linked diagrams | ||||
| 8505 | ||||
