GSE22R-AETLK (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0604- )GEN

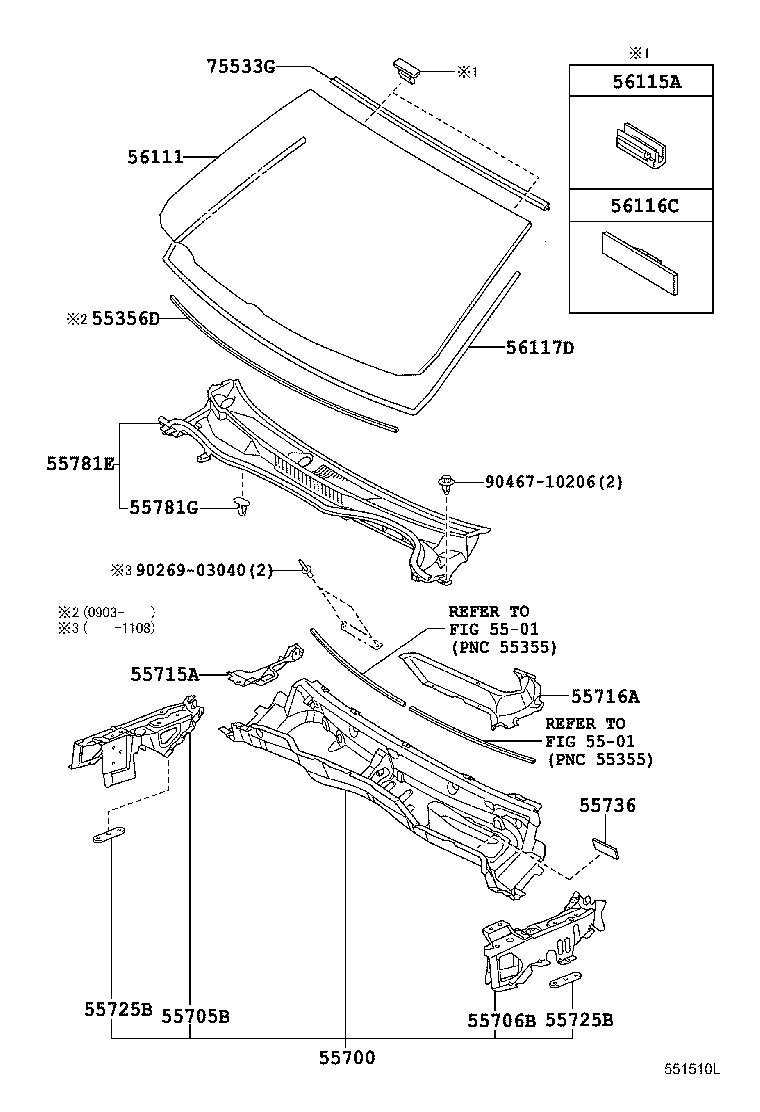

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55356D - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55355-53040 |
GSE22..GEN |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-53902 |
GSE22..GEN |
1 | ||
| 55700-53905 |
GSE22..GEN |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-53010 |
GSE22 |
1 | ||
| 55705-53010 |
GSE22 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-53010 |
GSE22 |
1 | ||
| 55706-53010 |
GSE22 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-53030 |
GSE22..GEN |
1 | ||
| 55715-53030 |
GSE22..GEN |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-53030 |
GSE22..GEN |
1 | ||
| 55716-53030 |
GSE22..GEN |
1 | ||
| 55725B - REINFORCEMENT, HOOD HINGE MOUNTING | ||||
| 55725-51020 |
GSE22 |
2 | ||
| 55725-51020 |
GSE22 |
2 | ||
| 55725B - REINFORCEMENT, HOOD HINGE MOUNTING | ||||
| 55725-51020 |
GSE22 |
2 | ||
| 55725-51020 |
GSE22 |
2 | ||
| 55736 - SEAL, WATER GUARD PLATE | ||||
| 55736-53010 |
GSE22 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-53050 |
GSE22..GEN |
1 | ||
| 55708-53050 |
GSE22..GEN |
1 | ||
| 55708-53051 |
GSE22..GEN |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08108 |
GSE22..GEN |
7 | ||
| 90467-08108 |
GSE22 |
7 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-53915 |
GSE22..GEN *LAM,T=4.76,GREEN,LUXURY PACKAGE |
1 | ||
| 56101-53938 |
GSE22..GEN *LAM,T=4.7,GREEN |
1 | ||
| 56101-53937 |
GSE22..GEN *LAM,T=4.7,GREEN,LUXURY PACKAGE |
1 | ||
| 56101-53918 |
GSE22..GEN *LAM,T=4.7,GREEN,LUXURY PACKAGE |
1 | ||
| 56101-53917 |
GSE22..GEN *LAM,T=4.7,GREEN |
1 | ||
| 56101-53914 |
GSE22..GEN *LAM,T=4.76,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30110 |
GSE22 |
2 | ||
| 56115-30110 |
GSE22 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GSE22 |
2 | ||
| 56116-22050 |
GSE22 |
2 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-53020 |
GSE22 L=2665 |
1 | ||
| 56117-53020 |
GSE22..GEN L=2665,LUXURY PACKAGE |
1 | ||
| 56117-53020 |
GSE22 L=2665,LUXURY PACKAGE |
1 | ||
| 56117-53020 |
GSE22 L=2665 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-53040 |
GSE22 |
1 | ||
| 75533-53040 |
GSE22 |
1 | ||
| Common parts | ||||
| 90269-03040 | ||||
| 90467-10206 | ||||
| Linked diagrams | ||||
| 5501 | ||||
