GSE22R-AETLK (2008)
Toyota Lexus Is250/300

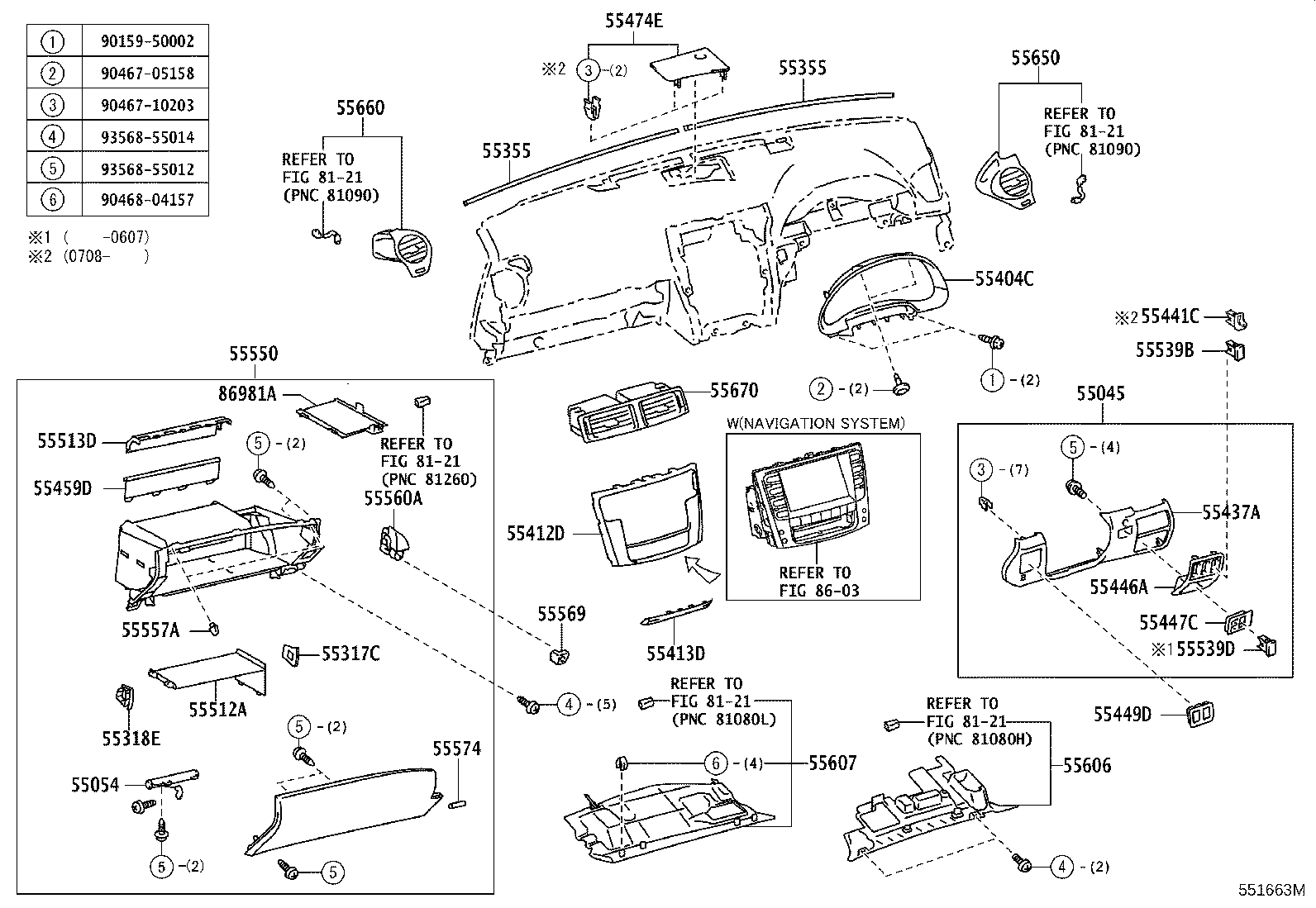

ILLUST NO. 2 OF 2(0604-1008)GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-53030B0 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55045-53030A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55045-53030C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55045-53052A1 |
GSE22..GEN ECRU,TRIM00,03 |
1 | ||
| 55045-53052A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55045-53051A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55045-53051B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55045-53051C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55045-53051A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55045-53052C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55045-53051A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55045-53052B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-53030 |
GSE22..GEN |
1 | ||
| 55054-53030 |
GSE22..GEN |
1 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-53050 |
GSE22 |
1 | ||
| 55317-53050 |
GSE22 |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-53030 |
GSE22 |
1 | ||
| 55318-53030 |
GSE22 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30100 |
GSE22 |
2 | ||
| 55355-30060 |
GSE22 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30100 |
GSE22 |
2 | ||
| 55355-30060 |
GSE22 |
2 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-53040 |
GSE22..GEN |
1 | ||
| 55404-53040 |
GSE22..GEN |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-53100 |
GSE22 |
1 | ||
| 55405-53080 |
GSE22 |
1 | ||
| 55405-53100 |
GSE22 W/O(NAVIGATION SYSTEM) |
1 | ||
| 55405-53080 |
GSE22 W/O(NAVIGATION SYSTEM) |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-53050 |
GSE22 |
1 | ||
| 55413-53051 |
GSE22 |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-53010B0 |
GSE22..GEN FROSTY GRAY,TRIM1# |
1 | ||
| 55437-53010A0 |
GSE22..GEN IVORY,TRIM0# |
1 | ||
| 55437-53011B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55437-53010C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55437-53011A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55437-53011A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55437-53012A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55437-53012B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55437-53011A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55437-53012A1 |
GSE22..GEN ECRU,TRIM00,03 |
1 | ||
| 55437-53011C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55437-53012C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-53050A1 |
GSE22 ECRU,TRIM0# |
1 | ||
| 55441-53050C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55441-53050A1 |
GSE22 ECRU,TRIM00,01,03 |
1 | ||
| 55441-53050B1 |
GSE22 LT.GRAY,TRIM1# |
1 | ||
| 55441-53050A0 |
GSE22 IVORY,TRIM02 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-53020B0 |
GSE22..GEN FROSTY GRAY,TRIM1# |
1 | ||
| 55446-53020A0 |
GSE22..GEN IVORY,TRIM0# |
1 | ||
| 55446-53020B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55446-53020C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55446-53020C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55446-53020A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55446-53020A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55446-53021A1 |
GSE22..GEN ECRU,TRIM00,03 |
1 | ||
| 55446-53020A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55446-53021A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55446-53021B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55446-53021C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-53010C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55447-53010B0 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55447-53030A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55447-53010A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55447-53030A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55447-53030B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55447-53030A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55447-53030A1 |
GSE22..GEN ECRU,TRIM00,03 |
1 | ||
| 55447-53030C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-53010B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55449-53010A0 |
GSE22..GEN IVORY,TRIM0# |
1 | ||
| 55449-53010B0 |
GSE22..GEN FROSTY GRAY,TRIM1# |
1 | ||
| 55449-53010A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55449-53010C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55449-53010C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55449-53010A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55449-53010A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
GSE22 |
1 | ||
| 55459-48020 |
GSE22 |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-53010C0 |
GSE22..GEN BLACK,TRIM0#,1#,2# |
1 | ||
| 55474-53020C0 |
GSE22..GEN AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55474-53020C0 |
GSE22..GEN AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,BLACK,TRIM0#,1#,2# |
1 | ||
| 55474-53020E0 |
GSE22..GEN AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55474-53010C0 |
GSE22..GEN BLACK,TRIM1#,2# |
1 | ||
| 55474-53010E0 |
GSE22..GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-53010 |
GSE22..GEN |
1 | ||
| 55512-53010 |
GSE22..GEN |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-53010 |
GSE22..GEN |
1 | ||
| 55513-53010 |
GSE22..GEN |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-44010C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55539-44010B5 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,FROSTY GRAY,TRIM1# |
1 | ||
| 55539-44010A1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,IVORY,TRIM0# |
1 | ||
| 55539-44010C0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,TRIM2# |
1 | ||
| 55539-44010A1 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55539-44010A2 |
GSE22 ECRU,TRIM0# |
1 | ||
| 55539-44010C0 |
GSE22..GEN LUXURY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-44010B7 |
GSE22 LT.GRAY,TRIM1# |
1 | ||
| 55539-44010B7 |
GSE22..GEN LUXURY PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 55539-44010A1 |
GSE22..GEN LUXURY PACKAGE,IVORY,TRIM02 |
1 | ||
| 55539-44010A2 |
GSE22..GEN ECRU,TRIM00,01 |
1 | ||
| 55539-44010A2 |
GSE22..GEN LUXURY PACKAGE,ECRU,TRIM0# |
1 | ||
| 55539-44010B5 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55539-44010C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55539-44010A1 |
GSE22 IVORY,TRIM02 |
1 | ||
| 55539-44010A2 |
GSE22..GEN LUXURY PACKAGE,ECRU,TRIM00,01 |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-44010C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55539-44010A1 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55539-44010B5 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-53040C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55550-53040A0 |
GSE22..GEN IVORY,TRIM0# |
1 | ||
| 55550-53040A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55550-53040B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55550-53040B0 |
GSE22..GEN FROSTY GRAY,TRIM1# |
1 | ||
| 55550-53040C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55550-53040A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55550-53040A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GSE22 |
2 | ||
| 55557-53030 |
GSE22 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-53020B0 |
GSE22..GEN FROSTY GRAY,TRIM1# |
1 | ||
| 55560-53020C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55560-53020A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55560-53020A0 |
GSE22..GEN IVORY,TRIM0# |
1 | ||
| 55560-53020A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55560-53020A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55560-53020B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55560-53020C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-53010A0 |
GSE22..GEN IVORY,TRIM0# |
1 | ||
| 55569-53010B0 |
GSE22..GEN FROSTY GRAY,TRIM1# |
1 | ||
| 55569-53010C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55569-53010A1 |
GSE22..GEN ECRU,TRIM0# |
1 | ||
| 55569-53010A0 |
GSE22..GEN IVORY,TRIM02 |
1 | ||
| 55569-53010A1 |
GSE22..GEN ECRU,TRIM00,01,03 |
1 | ||
| 55569-53010C0 |
GSE22..GEN BLACK,TRIM2# |
1 | ||
| 55569-53010B1 |
GSE22..GEN LT.GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-53010 |
GSE22 |
1 | ||
| 55574-53010 |
GSE22 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-53010 |
GSE22..GEN |
1 | ||
| 55606-53010 |
GSE22..GEN |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-53020 |
GSE22..GEN |
1 | ||
| 55607-53020 |
GSE22..GEN |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-53030C0 |
GSE22..GEN BLACK,TRIM0#,1#,2# |
1 | ||
| 55650-53031C0 |
GSE22..GEN BLACK,TRIM1#,2# |
1 | ||
| 55650-53031E0 |
GSE22..GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-53030C0 |
GSE22..GEN BLACK,TRIM0#,1#,2# |
1 | ||
| 55660-53031C0 |
GSE22..GEN BLACK,TRIM1#,2# |
1 | ||
| 55660-53031E0 |
GSE22..GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-53010 |
GSE22 |
1 | ||
| 55670-53020E0 |
GSE22 ORCHID BROWN,TRIM0# |
1 | ||
| 55670-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 86981A - COVER, TOLL COLLECTION | ||||
| 86981-53020 |
GSE22..GEN |
1 | ||
| 86981-53020 |
GSE22..GEN |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90467-05158 | ||||
| 90467-10203 | ||||
| 90468-04157 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
