GSE22R-AETLK (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

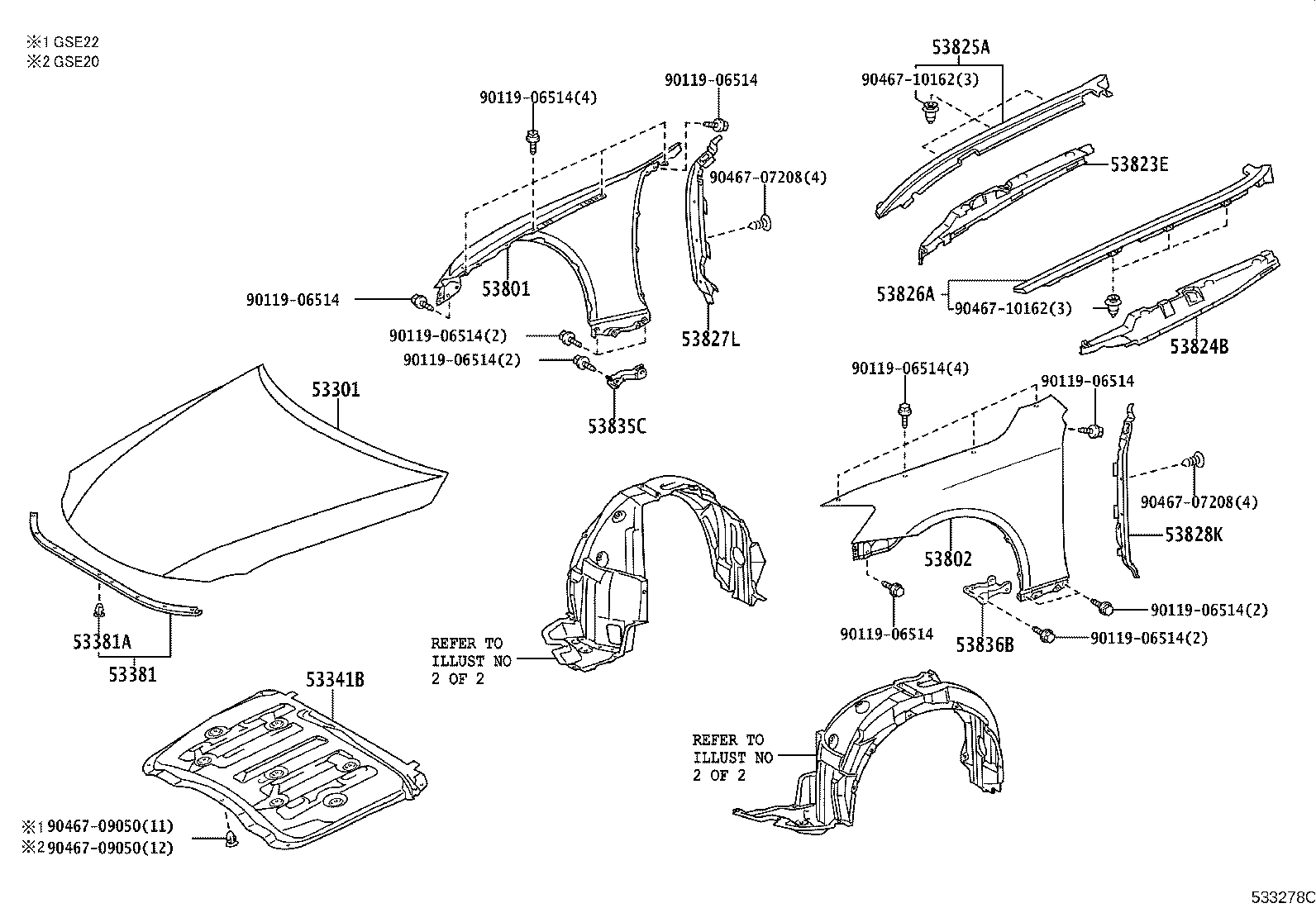

ILLUST NO. 1 OF 2(0604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-53030 |
GSE22 |
1 | ||
| 53301-53030 |
GSE22 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-53040 |
GSE22..GEN |
1 | ||
| 53341-53040 |
GSE22 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-53020 |
GSE22 |
1 | ||
| 53381-53020 |
GSE22..GEN |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GSE22..GEN |
9 | ||
| 90467-08011 |
GSE22 |
9 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-53060 |
GSE22 |
1 | ||
| 53801-53050 |
GSE22 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-53050 |
GSE22 |
1 | ||
| 53802-53060 |
GSE22 |
1 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-53010 |
GSE22 |
1 | ||
| 53823-53010 |
GSE22..GEN |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-53010 |
GSE22 |
1 | ||
| 53824-53010 |
GSE22..GEN |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53807-53011 |
GSE22..GEN |
1 | ||
| 53807-53011 |
GSE22 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53808-53011 |
GSE22 |
1 | ||
| 53808-53011 |
GSE22..GEN |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-53020 |
GSE22 |
1 | ||
| 53827-53020 |
GSE22..GEN |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-53020 |
GSE22..GEN |
1 | ||
| 53828-53020 |
GSE22 |
1 | ||
| 53835C - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-53010 |
GSE22 |
1 | ||
| 53835-53010 |
GSE22 |
1 | ||
| 53836B - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-53010 |
GSE22 |
1 | ||
| 53836-53010 |
GSE22 |
1 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90467-07208 | ||||
| 90467-09050 | ||||
| 90467-10162 | ||||

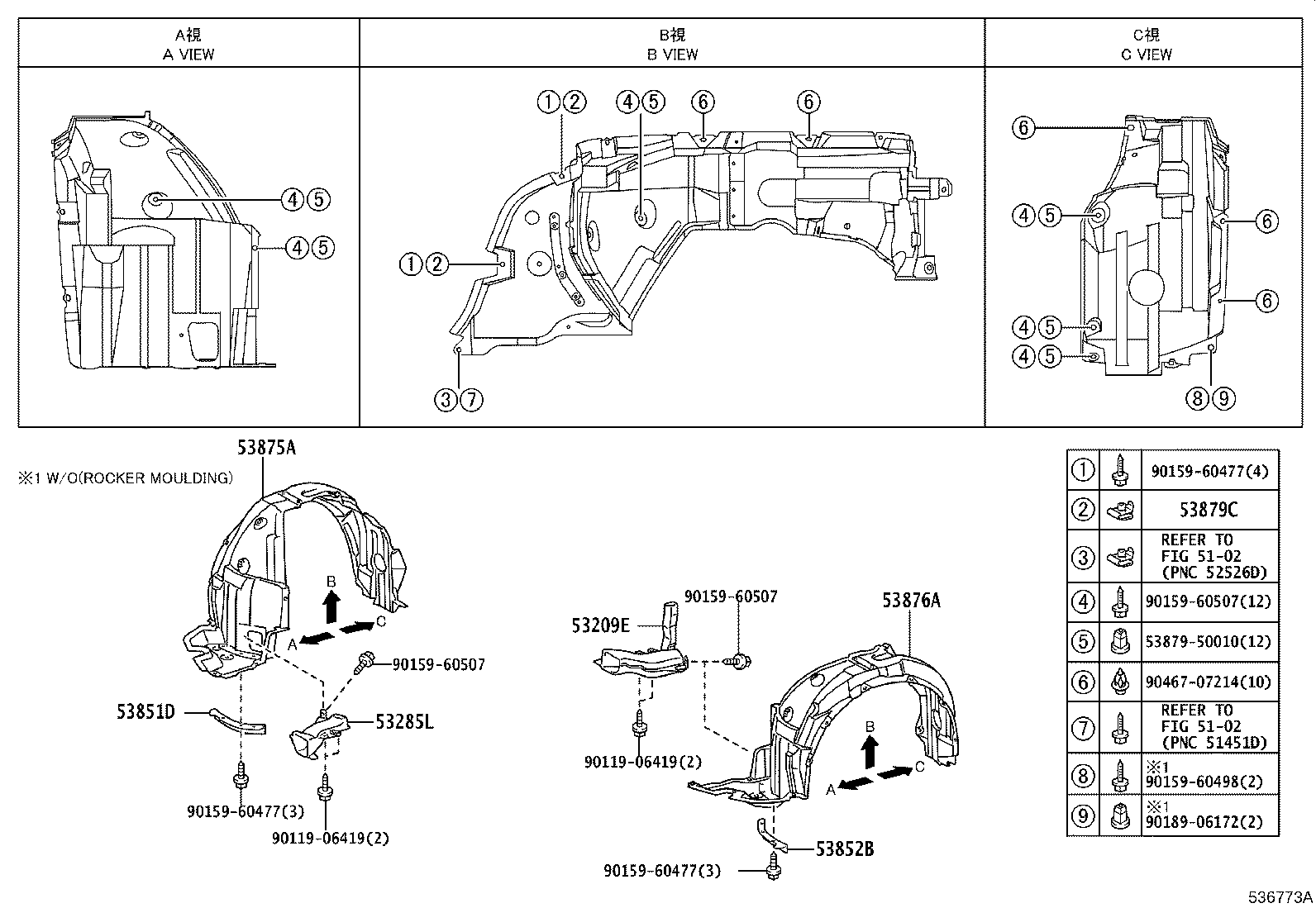

ILLUST NO. 2 OF 2(0604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53209E - DUCT SUB-ASSY, COOL AIR INTAKE, NO.3 | ||||
| 53209-53010 |
GSE22..GEN |
1 | ||
| 53209-53040 |
GSE22 |
1 | ||
| 53285L - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 53208-53070 |
GSE22 |
1 | ||
| 53285-53010 |
GSE22..GEN |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-53021 |
GSE22 |
1 | ||
| 53851-53020 |
GSE22 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-53020 |
GSE22 |
1 | ||
| 53852-53021 |
GSE22 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-53020 |
GSE22 |
1 | ||
| 53852-53021 |
GSE22 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-53020 |
GSE22..GEN |
1 | ||
| 53805-53040 |
GSE22 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-53020 |
GSE22..GEN |
1 | ||
| 53806-53040 |
GSE22 |
1 | ||
| 53879C - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
GSE22 |
4 | ||
| 53879-17020 |
GSE22 |
4 | ||
| Common parts | ||||
| 53879-50010 | ||||
| 90119-06419 | ||||
| 90159-60477 | ||||
| 90159-60498 | ||||
| 90159-60507 | ||||
| 90189-06172 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
