GSE22R-AETLK (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0604- )GEN

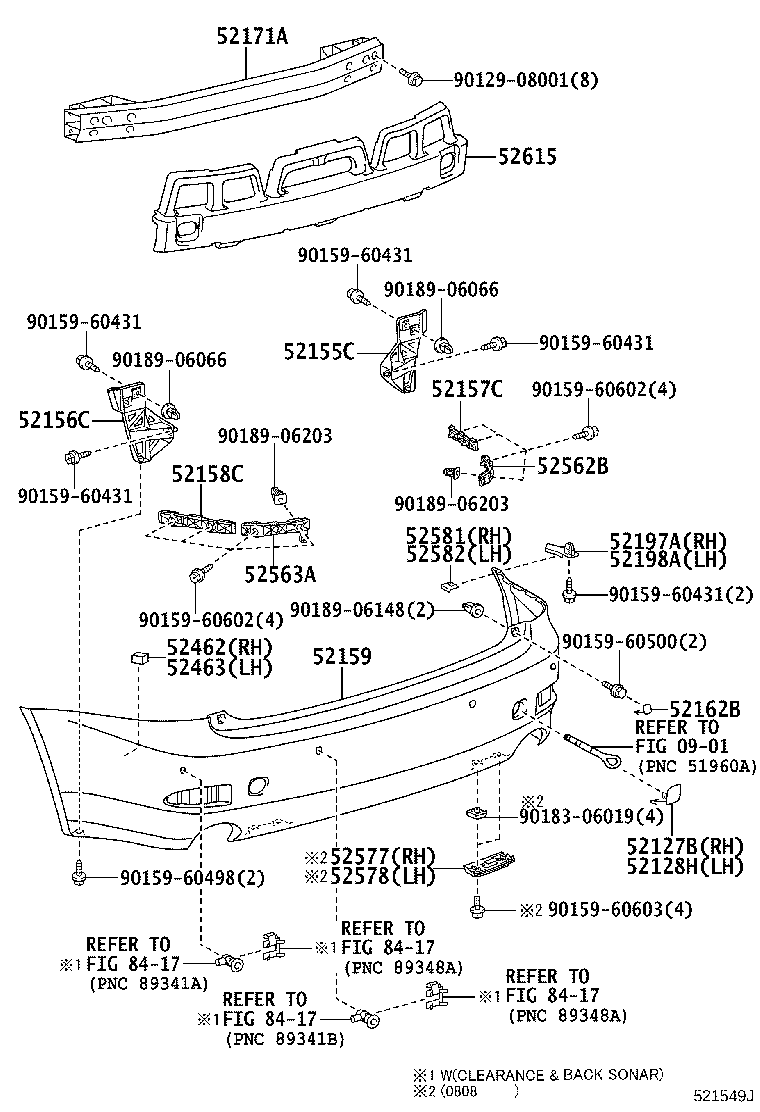

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52127B - COVER, REAR BUMPER HOLE, RH | ||||
| 52161-53902 |
GSE22..GEN |
1 | ||
| 52161-53904 |
GSE22..GEN |
1 | ||
| 52128H - COVER, REAR BUMPER HOLE, LH | ||||
| 52162-53903 |
GSE22..GEN |
1 | ||
| 52162-53906 |
GSE22..GEN |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-53040 |
GSE22 |
1 | ||
| 52155-53040 |
GSE22 |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-53010 |
GSE22 |
1 | ||
| 52156-53010 |
GSE22 |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-53040 |
GSE22 |
1 | ||
| 52157-53040 |
GSE22 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-53040 |
GSE22 |
1 | ||
| 52158-53040 |
GSE22 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-53905 |
GSE22 PAINT REQ. |
1 | ||
| 52159-53906 |
GSE22 PAINT REQ.,LUXURY PACKAGE |
1 | ||
| 52159-53925 |
GSE22..GEN PAINT REQ. |
1 | ||
| 52159-53918 |
GSE22..GEN PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-53929 |
GSE22 PAINT REQ. |
1 | ||
| 52159-53917 |
GSE22..GEN PAINT REQ. |
1 | ||
| 52159-53926 |
GSE22..GEN PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-53904 |
GSE22 |
1 | ||
| 52162-53904 |
GSE22 |
2 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-53010 |
GSE22..GEN |
1 | ||
| 52023-53010 |
GSE22..GEN |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53020 |
GSE22 |
1 | ||
| 52197-53020 |
GSE22 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53010 |
GSE22 |
1 | ||
| 52198-53010 |
GSE22 |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-53020 |
GSE22 |
1 | ||
| 52462-53020 |
GSE22 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-53020 |
GSE22 |
1 | ||
| 52462-53020 |
GSE22 |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-53010 |
GSE22 |
1 | ||
| 52562-53010 |
GSE22 |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-53010 |
GSE22 |
1 | ||
| 52563-53010 |
GSE22 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-30100 |
GSE22 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-30100 |
GSE22 |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-53010 |
GSE22 |
1 | ||
| 52581-53010 |
GSE22 |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52582-53010 |
GSE22 |
1 | ||
| 52582-53010 |
GSE22 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-53050 |
GSE22..GEN |
1 | ||
| 52615-53050 |
GSE22..GEN |
1 | ||
| 52615-53120 |
GSE22..GEN |
1 | ||
| Common parts | ||||
| 90129-08001 | ||||
| 90159-60431 | ||||
| 90159-60498 | ||||
| 90159-60500 | ||||
| 90159-60602 | ||||
| 90159-60603 | ||||
| 90183-06019 | ||||
| 90189-06066 | ||||
| 90189-06148 | ||||
| 90189-06203 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 8417 | ||||
