GSE22R-AETLK (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

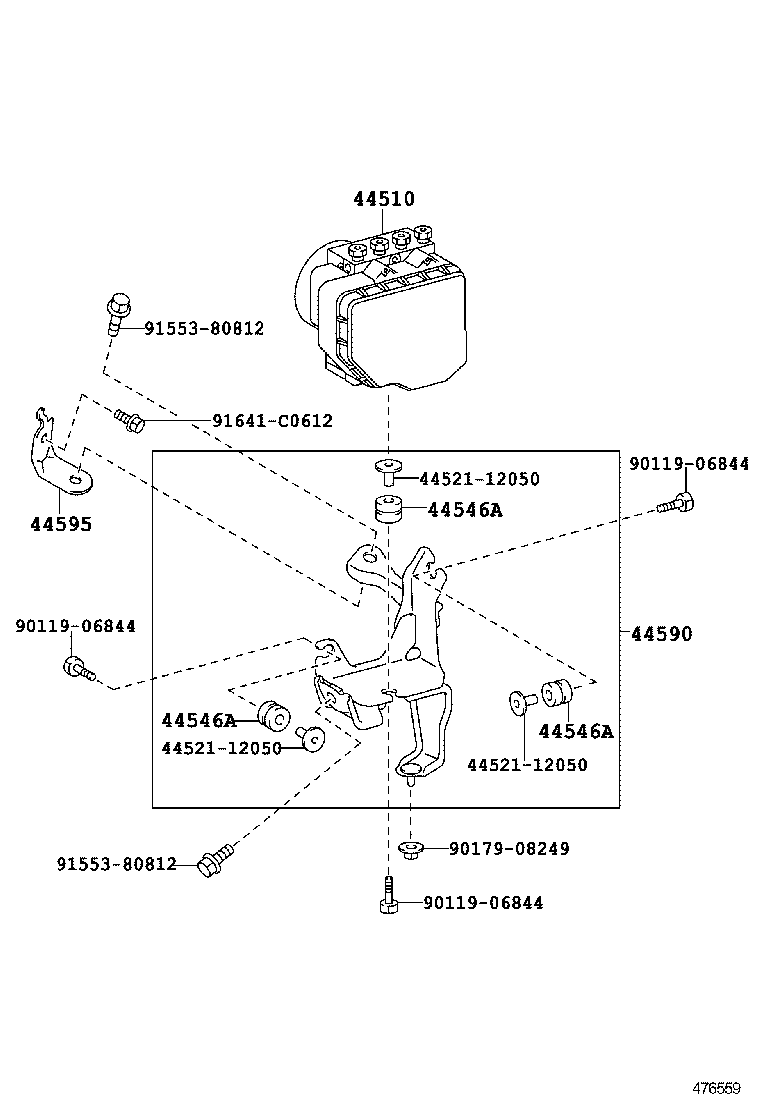

ILLUST NO. 2 OF 2(0808- )GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-53061 |
GSE22 |
1 | ||
| 44050-53250 |
GSE22..GEN |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GSE22 |
3 | ||
| 44546-42090 |
GSE22 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GSE22 |
3 | ||
| 44546-42090 |
GSE22 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
GSE22 |
3 | ||
| 44546-42090 |
GSE22 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-53090 |
GSE22..GEN |
1 | ||
| 44590-53110 |
GSE22..GEN |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44595-53010 |
GSE22 |
1 | ||
| 44595-53010 |
GSE22 |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90179-08249 | ||||
| 91553-80812 | ||||
| 91641-C0612 | ||||

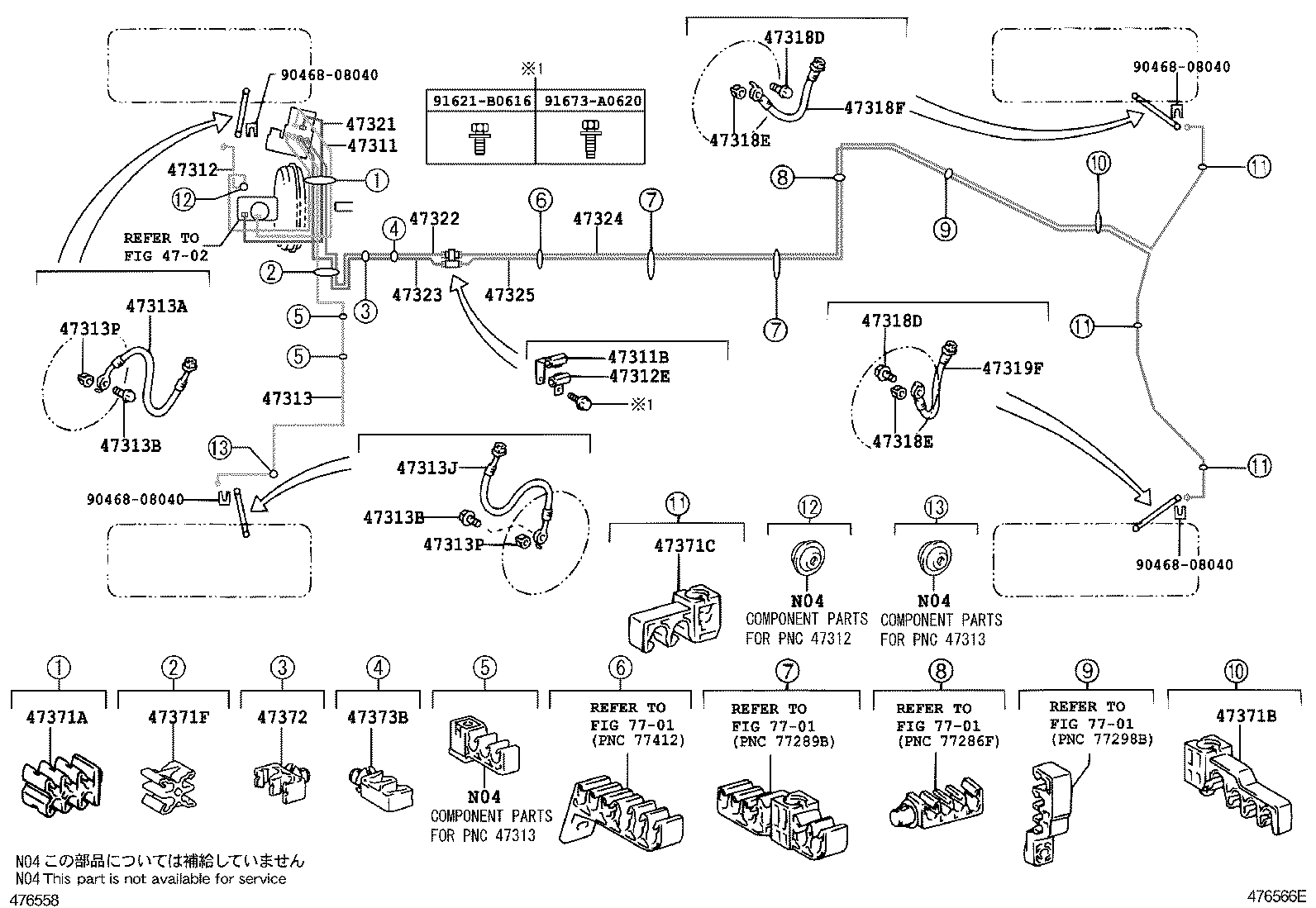

ILLUST NO. 1 OF 2(0808- )GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-53120 |
GSE22..GEN |
1 | ||
| 47311-53170 |
GSE22..GEN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10250 |
GSE22 |
1 | ||
| 90412-10250 |
GSE22 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-53190 |
GSE22..GEN |
1 | ||
| 47312-53120 |
GSE22..GEN |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10278 |
GSE22 |
1 | ||
| 90412-10144 |
GSE22 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-53190 |
GSE22..GEN |
1 | ||
| 47313-53160 |
GSE22..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E51 |
GSE22..GEN |
1 | ||
| 90947-02F72 |
GSE22..GEN |
1 | ||
| 90947-02F72 |
GSE22..GEN |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSE22 |
2 | ||
| 90401-10058 |
GSE22 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSE22 |
2 | ||
| 90401-10058 |
GSE22 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E51 |
GSE22..GEN |
1 | ||
| 90947-02F72 |
GSE22..GEN |
1 | ||
| 90947-02F72 |
GSE22..GEN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSE22 |
2 | ||
| 47389-50020 |
GSE22 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSE22 |
2 | ||
| 47389-50020 |
GSE22 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSE22 |
2 | ||
| 90401-10058 |
GSE22 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSE22 |
2 | ||
| 90401-10058 |
GSE22 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSE22 |
2 | ||
| 47389-50020 |
GSE22 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSE22 |
2 | ||
| 47389-50020 |
GSE22 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E50 |
GSE22 |
1 | ||
| 90947-02F71 |
GSE22 |
1 | ||
| 90947-02F71 |
GSE22 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F71 |
GSE22 |
1 | ||
| 90947-02E50 |
GSE22 |
1 | ||
| 90947-02F71 |
GSE22 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-53100 |
GSE22..GEN |
1 | ||
| 47321-53140 |
GSE22..GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-53120 |
GSE22..GEN |
1 | ||
| 47322-53180 |
GSE22..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-53160 |
GSE22..GEN |
1 | ||
| 47323-53100 |
GSE22..GEN |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-53070 |
GSE22 |
1 | ||
| 47324-53070 |
GSE22 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-53060 |
GSE22 |
1 | ||
| 47325-53060 |
GSE22 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01C51 |
GSE22..GEN |
1 | ||
| 90949-01C51 |
GSE22 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D09 |
GSE22 |
1 | ||
| 90949-01D09 |
GSE22 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D11 |
GSE22 |
3 | ||
| 90949-01D11 |
GSE22 |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90464-00876 |
GSE22..GEN |
1 | ||
| 90464-00876 |
GSE22..GEN |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D12 |
GSE22..GEN |
1 | ||
| 90949-01D12 |
GSE22 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D13 |
GSE22..GEN |
1 | ||
| 90949-01D13 |
GSE22 |
1 | ||
| Common parts | ||||
| 90468-08040 | ||||
| 91621-B0616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
