GSE22R-AETLK (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0604- )GEN

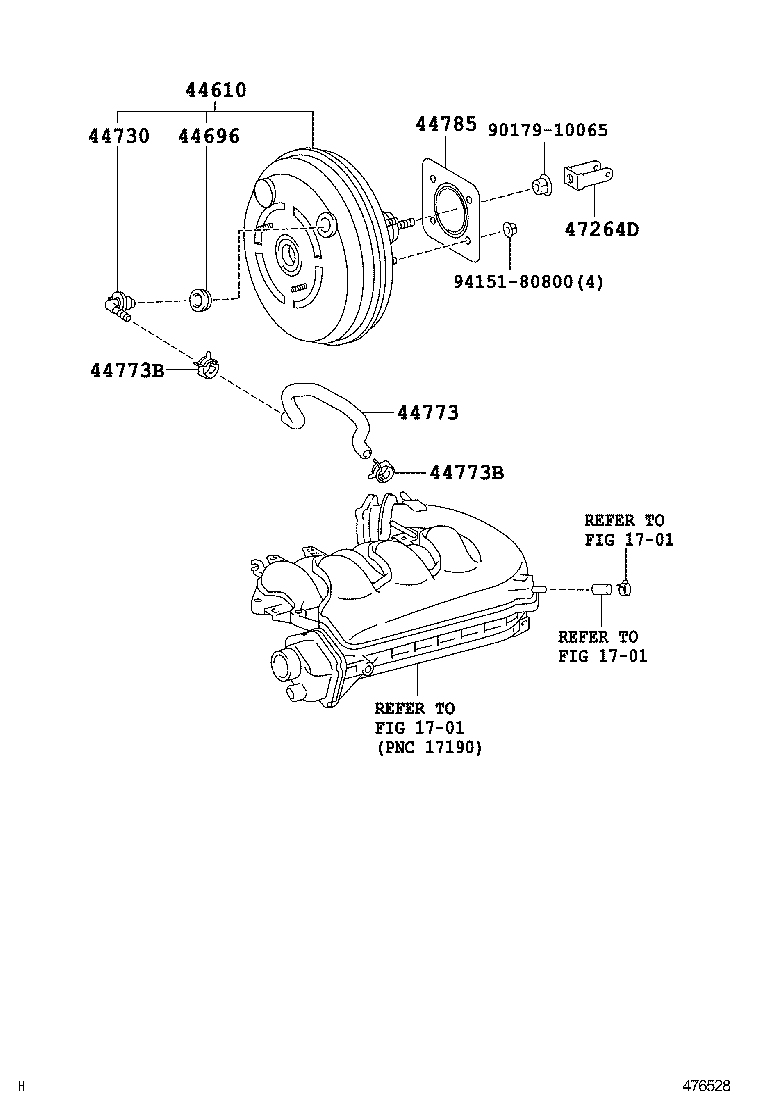

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-53320 |
GSE22..GEN |
1 | ||
| 44610-53320 |
GSE22..GEN |
1 | ||
| 44610-53321 |
GSE22..GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GSE22..GEN |
1 | ||
| 90480-24439 |
GSE22..GEN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
GSE22..GEN |
1 | ||
| 44730-12070 |
GSE22..GEN |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-53060 |
GSE22..GEN |
1 | ||
| 44773-53060 |
GSE22..GEN |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16014 |
GSE22 |
2 | ||
| 90467-16014 |
GSE22 |
2 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16014 |
GSE22 |
2 | ||
| 90467-16014 |
GSE22 |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-47010 |
GSE22 |
1 | ||
| 44785-47010 |
GSE22 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-30060 |
GSE22 |
1 | ||
| 47264-30060 |
GSE22 |
1 | ||
| Common parts | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
