GSE22R-AETLK (2008)
Toyota Lexus Is250/300
(0604- )GSE22

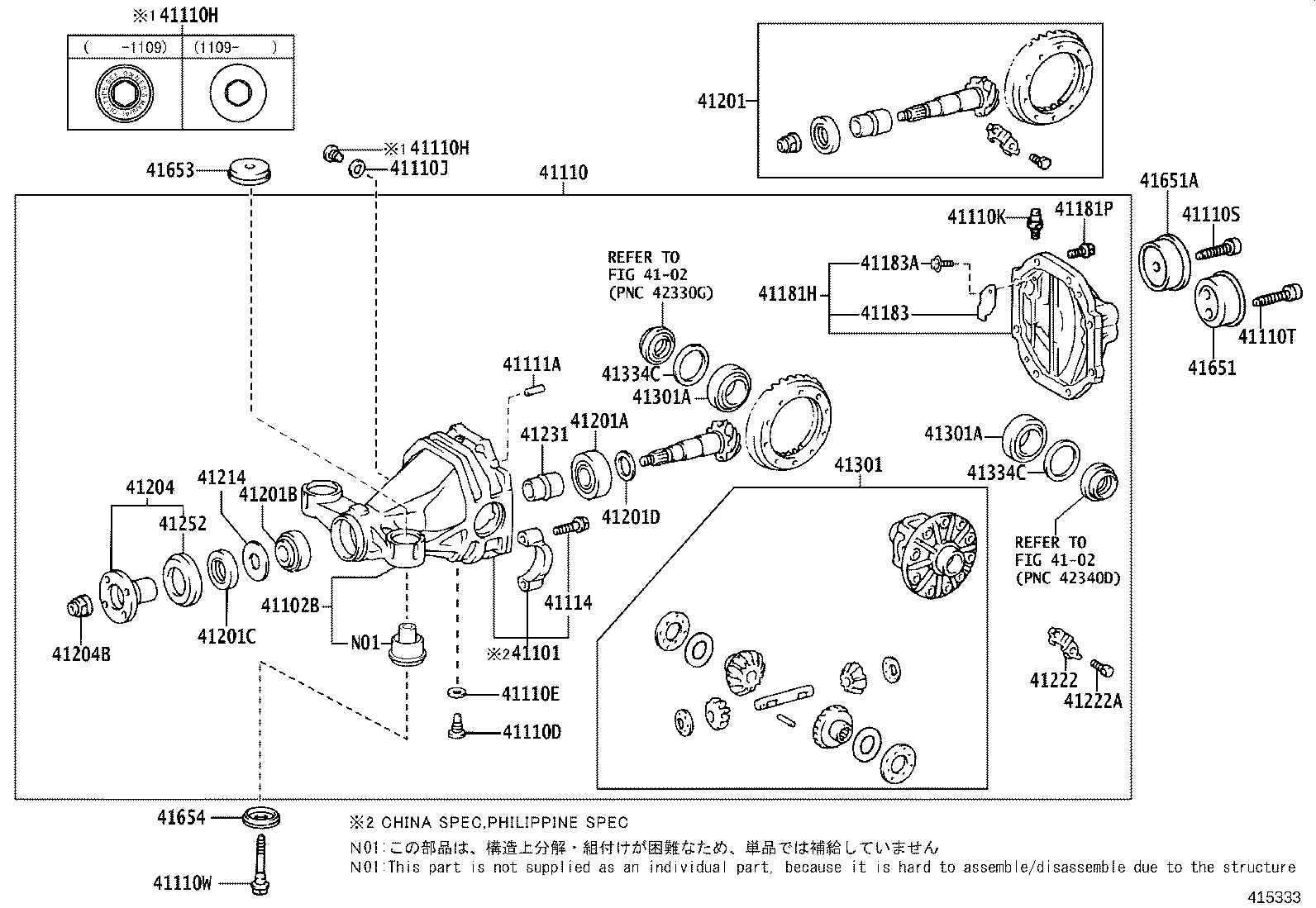

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-53030 |
GSE22..GEN |
1 | ||
| 41102B - CARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT | ||||
| 41102-30030 |
GSE22..GEN |
1 | ||
| 41102-30030 |
GSE22..GEN |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-53201 |
GSE22..GEN *FGR=41:11=3.727 |
1 | ||
| 41110-53201 |
GSE22..GEN *FGR=41:11=3.727 |
1 | ||
| 41110-53202 |
GSE22..GEN *FGR=41:11=3.727 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
GSE22 |
1 | ||
| 90341-18035 |
GSE22 |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
GSE22 |
1 | ||
| 12157-10010 |
GSE22 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18066 |
GSE22 |
1 | ||
| 90341-18066 |
GSE22 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18066 |
GSE22 |
1 | ||
| 90341-18066 |
GSE22 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GSE22 |
1 | ||
| 12157-10010 |
GSE22 |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03077 |
GSE22 |
1 | ||
| 90930-03077 |
GSE22 |
1 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14004 |
GSE22 |
1 | ||
| 90110-14006 |
GSE22 |
1 | ||
| 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14004 |
GSE22 |
2 | ||
| 90110-14006 |
GSE22 |
2 | ||
| 41110W - BOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90109-12081 |
GSE22 |
2 | ||
| 90109-12081 |
GSE22 |
2 | ||
| 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90250-08120 |
GSE22 |
2 | ||
| 90250-08120 |
GSE22 |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12164 |
GSE22 |
4 | ||
| 90105-12164 |
GSE22 |
4 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41108-53020 |
GSE22 |
1 | ||
| 41108-53020 |
GSE22 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10417 |
GSE22 |
8 | ||
| 90105-10417 |
GSE22 |
8 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-53020 |
GSE22 |
1 | ||
| 41183-53020 |
GSE22 |
1 | ||
| 41183A - BOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR | ||||
| 91611-B0614 |
GSE22 |
1 | ||
| 91611-B0614 |
GSE22 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80050 |
GSE22 *FGR=41:11=3.727 |
1 | ||
| 41201-80050 |
GSE22 *FGR=41:11=3.727 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35133 |
GSE22 |
1 | ||
| 90366-35133 |
GSE22 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30093 |
GSE22 |
1 | ||
| 90366-30093 |
GSE22 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38070 |
GSE22 |
1 | ||
| 90311-38070 |
GSE22 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
GSE22 OD=47,T=1.70 |
1 | ||
| 90201-35500 |
GSE22 OD=47,T=1.79 |
1 | ||
| 90201-35499 |
GSE22 OD=47,T=1.76 |
1 | ||
| 90201-35510 |
GSE22 OD=47,T=2.09 |
1 | ||
| 90201-35504 |
GSE22 OD=47,T=1.91 |
1 | ||
| 90201-35511 |
GSE22 OD=47,T=2.12 |
1 | ||
| 90201-35505 |
GSE22 OD=47,T=1.94 |
1 | ||
| 90201-35507 |
GSE22 OD=47,T=2.00 |
1 | ||
| 90201-35513 |
GSE22 OD=47,T=2.18 |
1 | ||
| 90201-35503 |
GSE22 OD=47,T=1.88 |
1 | ||
| 90201-35509 |
GSE22 OD=47,T=2.06 |
1 | ||
| 90201-35506 |
GSE22 OD=47,T=1.97 |
1 | ||
| 90201-35512 |
GSE22 OD=47,T=2.15 |
1 | ||
| 90201-35501 |
GSE22 OD=47,T=1.82 |
1 | ||
| 90201-35518 |
GSE22 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35514 |
GSE22 OD=47,T=2.21 |
1 | ||
| 90201-35508 |
GSE22 OD=47,T=2.03 |
1 | ||
| 90201-35502 |
GSE22 OD=47,T=1.85 |
1 | ||
| 90201-35501 |
GSE22 OD=47,T=1.82 |
1 | ||
| 90201-35503 |
GSE22 OD=47,T=1.88 |
1 | ||
| 90201-35515 |
GSE22 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35499 |
GSE22 OD=47,T=1.76 |
1 | ||
| 90201-35498 |
GSE22 OD=47,T=1.73 |
1 | ||
| 90201-35504 |
GSE22 OD=47,T=1.91 |
1 | ||
| 90201-35516 |
GSE22 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35517 |
GSE22 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35506 |
GSE22 OD=47,T=1.97 |
1 | ||
| 90201-35502 |
GSE22 OD=47,T=1.85 |
1 | ||
| 90201-35512 |
GSE22 OD=47,T=2.15 |
1 | ||
| 90201-35500 |
GSE22 OD=47,T=1.79 |
1 | ||
| 90201-35508 |
GSE22 OD=47,T=2.03 |
1 | ||
| 90201-35497 |
GSE22 OD=47,T=1.70 |
1 | ||
| 90201-35510 |
GSE22 OD=47,T=2.09 |
1 | ||
| 90201-35513 |
GSE22 OD=47,T=2.18 |
1 | ||
| 90201-35498 |
GSE22 OD=47,T=1.73 |
1 | ||
| 90201-35511 |
GSE22 OD=47,T=2.12 |
1 | ||
| 90201-35507 |
GSE22 OD=47,T=2.00 |
1 | ||
| 90201-35509 |
GSE22 OD=47,T=2.06 |
1 | ||
| 90201-35517 |
GSE22 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35514 |
GSE22 OD=47,T=2.21 |
1 | ||
| 90201-35516 |
GSE22 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35515 |
GSE22 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35505 |
GSE22 OD=47,T=1.94 |
1 | ||
| 90201-35518 |
GSE22 OD=47,T=2.33,MARK 04 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35041 |
GSE22 |
1 | ||
| 41204-35041 |
GSE22 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20018 |
GSE22 OD=37 |
1 | ||
| 90179-20018 |
GSE22 OD=37 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
GSE22 |
1 | ||
| 41214-26010 |
GSE22 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-22010 |
GSE22 |
5 | ||
| 41222-22010 |
GSE22 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GSE22 |
10 | ||
| 90101-11353 |
GSE22 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
GSE22 |
1 | ||
| 41231-24010 |
GSE22 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
GSE22 |
1 | ||
| 41252-35020 |
GSE22 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-53030 |
GSE22 |
1 | ||
| 41301-53031 |
GSE22 |
1 | ||
| 41301-53030 |
GSE22 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50001 |
GSE22 |
2 | ||
| 90366-50001 |
GSE22 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50001 |
GSE22 |
2 | ||
| 90366-50001 |
GSE22 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-52009 |
GSE22 T=2.82,MARK 09 |
1 | ||
| 90201-52005 |
GSE22 T=2.70,MARK 05 |
1 | ||
| 90201-52001 |
GSE22 T=2.58,MARK 01 |
1 | ||
| 90201-52017 |
GSE22 T=3.06,MARK 17 |
1 | ||
| 90201-52003 |
GSE22 T=2.64,MARK 03 |
1 | ||
| 90201-52021 |
GSE22 T=3.18,MARK 21 |
1 | ||
| 90201-52011 |
GSE22 T=2.88,MARK 11 |
1 | ||
| 90201-52007 |
GSE22 T=2.76,MARK 07 |
1 | ||
| 90201-52023 |
GSE22 T=3.24,MARK 23 |
1 | ||
| 90201-52027 |
GSE22 T=3.36,MARK 27 |
1 | ||
| 90201-52019 |
GSE22 T=3.12,MARK 19 |
1 | ||
| 90201-52025 |
GSE22 T=3.30,MARK 25 |
1 | ||
| 90564-46014 |
GSE22 T=2.60,MARK 32 |
1 | ||
| 90201-52031 |
GSE22 T=3.48,MARK 31 |
1 | ||
| 90201-52029 |
GSE22 T=3.42,MARK 29 |
1 | ||
| 90201-52015 |
GSE22 T=3.00,MARK 15 |
1 | ||
| 90564-46015 |
GSE22 T=2.62,MARK 33 |
1 | ||
| 90564-46019 |
GSE22 T=2.74,MARK 37 |
1 | ||
| 90564-46021 |
GSE22 T=2.80,MARK 39 |
1 | ||
| 90564-46023 |
GSE22 T=2.86,MARK 41 |
1 | ||
| 90564-46028 |
GSE22 T=3.02,MARK 46 |
1 | ||
| 90201-52013 |
GSE22 T=2.94,MARK 13 |
1 | ||
| 90564-46020 |
GSE22 T=2.78,MARK 38 |
1 | ||
| 90564-46026 |
GSE22 T=2.96,MARK 44 |
1 | ||
| 90564-46018 |
GSE22 T=2.72,MARK 36 |
1 | ||
| 90564-46022 |
GSE22 T=2.84,MARK 40 |
1 | ||
| 90564-46032 |
GSE22 T=3.14,MARK 50 |
1 | ||
| 90564-46017 |
GSE22 T=2.68,MARK 35 |
1 | ||
| 90564-46024 |
GSE22 T=2.90,MARK 42 |
1 | ||
| 90564-46039 |
GSE22 T=3.34,MARK 57 |
1 | ||
| 90564-46035 |
GSE22 T=3.22,MARK 53 |
1 | ||
| 90564-46042 |
GSE22 T=3.44,MARK 60 |
1 | ||
| 90564-46027 |
GSE22 T=2.98,MARK 45 |
1 | ||
| 90564-46041 |
GSE22 T=3.40,MARK 59 |
1 | ||
| 90564-46033 |
GSE22 T=3.16,MARK 51 |
1 | ||
| 90564-46036 |
GSE22 T=3.26,MARK 54 |
1 | ||
| 90564-46025 |
GSE22 T=2.92,MARK 43 |
1 | ||
| 90564-46029 |
GSE22 T=3.04,MARK 47 |
1 | ||
| 90564-46031 |
GSE22 T=3.10,MARK 49 |
1 | ||
| 90564-46037 |
GSE22 T=3.28,MARK 55 |
1 | ||
| 90564-46038 |
GSE22 T=3.32,MARK 56 |
1 | ||
| 90564-46016 |
GSE22 T=2.66,MARK 34 |
1 | ||
| 90564-46043 |
GSE22 T=3.46,MARK 61 |
1 | ||
| 90564-46030 |
GSE22 T=3.08,MARK 48 |
1 | ||
| 90201-52005 |
GSE22 T=2.70,MARK 05 |
1 | ||
| 90201-52003 |
GSE22 T=2.64,MARK 03 |
1 | ||
| 90201-52001 |
GSE22 T=2.58,MARK 01 |
1 | ||
| 90201-52009 |
GSE22 T=2.82,MARK 09 |
1 | ||
| 90201-52007 |
GSE22 T=2.76,MARK 07 |
1 | ||
| 90564-46034 |
GSE22 T=3.20,MARK 52 |
1 | ||
| 90201-52029 |
GSE22 T=3.42,MARK 29 |
1 | ||
| 90201-52019 |
GSE22 T=3.12,MARK 19 |
1 | ||
| 90564-46040 |
GSE22 T=3.38,MARK 58 |
1 | ||
| 90201-52021 |
GSE22 T=3.18,MARK 21 |
1 | ||
| 90201-52011 |
GSE22 T=2.88,MARK 11 |
1 | ||
| 90564-46014 |
GSE22 T=2.60,MARK 32 |
1 | ||
| 90201-52031 |
GSE22 T=3.48,MARK 31 |
1 | ||
| 90564-46018 |
GSE22 T=2.72,MARK 36 |
1 | ||
| 90564-46016 |
GSE22 T=2.66,MARK 34 |
1 | ||
| 90564-46017 |
GSE22 T=2.68,MARK 35 |
1 | ||
| 90201-52027 |
GSE22 T=3.36,MARK 27 |
1 | ||
| 90201-52017 |
GSE22 T=3.06,MARK 17 |
1 | ||
| 90564-46022 |
GSE22 T=2.84,MARK 40 |
1 | ||
| 90201-52015 |
GSE22 T=3.00,MARK 15 |
1 | ||
| 90564-46015 |
GSE22 T=2.62,MARK 33 |
1 | ||
| 90201-52025 |
GSE22 T=3.30,MARK 25 |
1 | ||
| 90564-46020 |
GSE22 T=2.78,MARK 38 |
1 | ||
| 90564-46019 |
GSE22 T=2.74,MARK 37 |
1 | ||
| 90564-46028 |
GSE22 T=3.02,MARK 46 |
1 | ||
| 90564-46026 |
GSE22 T=2.96,MARK 44 |
1 | ||
| 90201-52013 |
GSE22 T=2.94,MARK 13 |
1 | ||
| 90564-46027 |
GSE22 T=2.98,MARK 45 |
1 | ||
| 90564-46035 |
GSE22 T=3.22,MARK 53 |
1 | ||
| 90564-46030 |
GSE22 T=3.08,MARK 48 |
1 | ||
| 90564-46021 |
GSE22 T=2.80,MARK 39 |
1 | ||
| 90564-46024 |
GSE22 T=2.90,MARK 42 |
1 | ||
| 90564-46025 |
GSE22 T=2.92,MARK 43 |
1 | ||
| 90564-46029 |
GSE22 T=3.04,MARK 47 |
1 | ||
| 90564-46023 |
GSE22 T=2.86,MARK 41 |
1 | ||
| 90564-46034 |
GSE22 T=3.20,MARK 52 |
1 | ||
| 90564-46032 |
GSE22 T=3.14,MARK 50 |
1 | ||
| 90564-46033 |
GSE22 T=3.16,MARK 51 |
1 | ||
| 90564-46043 |
GSE22 T=3.46,MARK 61 |
1 | ||
| 90201-52023 |
GSE22 T=3.24,MARK 23 |
1 | ||
| 90564-46036 |
GSE22 T=3.26,MARK 54 |
1 | ||
| 90564-46039 |
GSE22 T=3.34,MARK 57 |
1 | ||
| 90564-46042 |
GSE22 T=3.44,MARK 60 |
1 | ||
| 90564-46031 |
GSE22 T=3.10,MARK 49 |
1 | ||
| 90564-46038 |
GSE22 T=3.32,MARK 56 |
1 | ||
| 90564-46041 |
GSE22 T=3.40,MARK 59 |
1 | ||
| 90564-46040 |
GSE22 T=3.38,MARK 58 |
1 | ||
| 90564-46037 |
GSE22 T=3.28,MARK 55 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-52009 |
GSE22 T=2.82,MARK 09 |
1 | ||
| 90201-52005 |
GSE22 T=2.70,MARK 05 |
1 | ||
| 90201-52001 |
GSE22 T=2.58,MARK 01 |
1 | ||
| 90201-52017 |
GSE22 T=3.06,MARK 17 |
1 | ||
| 90201-52003 |
GSE22 T=2.64,MARK 03 |
1 | ||
| 90201-52021 |
GSE22 T=3.18,MARK 21 |
1 | ||
| 90201-52011 |
GSE22 T=2.88,MARK 11 |
1 | ||
| 90201-52007 |
GSE22 T=2.76,MARK 07 |
1 | ||
| 90201-52023 |
GSE22 T=3.24,MARK 23 |
1 | ||
| 90201-52027 |
GSE22 T=3.36,MARK 27 |
1 | ||
| 90201-52019 |
GSE22 T=3.12,MARK 19 |
1 | ||
| 90201-52025 |
GSE22 T=3.30,MARK 25 |
1 | ||
| 90564-46014 |
GSE22 T=2.60,MARK 32 |
1 | ||
| 90201-52031 |
GSE22 T=3.48,MARK 31 |
1 | ||
| 90201-52029 |
GSE22 T=3.42,MARK 29 |
1 | ||
| 90201-52015 |
GSE22 T=3.00,MARK 15 |
1 | ||
| 90564-46015 |
GSE22 T=2.62,MARK 33 |
1 | ||
| 90564-46019 |
GSE22 T=2.74,MARK 37 |
1 | ||
| 90564-46021 |
GSE22 T=2.80,MARK 39 |
1 | ||
| 90564-46023 |
GSE22 T=2.86,MARK 41 |
1 | ||
| 90564-46028 |
GSE22 T=3.02,MARK 46 |
1 | ||
| 90201-52013 |
GSE22 T=2.94,MARK 13 |
1 | ||
| 90564-46020 |
GSE22 T=2.78,MARK 38 |
1 | ||
| 90564-46026 |
GSE22 T=2.96,MARK 44 |
1 | ||
| 90564-46018 |
GSE22 T=2.72,MARK 36 |
1 | ||
| 90564-46022 |
GSE22 T=2.84,MARK 40 |
1 | ||
| 90564-46032 |
GSE22 T=3.14,MARK 50 |
1 | ||
| 90564-46017 |
GSE22 T=2.68,MARK 35 |
1 | ||
| 90564-46024 |
GSE22 T=2.90,MARK 42 |
1 | ||
| 90564-46039 |
GSE22 T=3.34,MARK 57 |
1 | ||
| 90564-46035 |
GSE22 T=3.22,MARK 53 |
1 | ||
| 90564-46042 |
GSE22 T=3.44,MARK 60 |
1 | ||
| 90564-46027 |
GSE22 T=2.98,MARK 45 |
1 | ||
| 90564-46041 |
GSE22 T=3.40,MARK 59 |
1 | ||
| 90564-46033 |
GSE22 T=3.16,MARK 51 |
1 | ||
| 90564-46036 |
GSE22 T=3.26,MARK 54 |
1 | ||
| 90564-46025 |
GSE22 T=2.92,MARK 43 |
1 | ||
| 90564-46029 |
GSE22 T=3.04,MARK 47 |
1 | ||
| 90564-46031 |
GSE22 T=3.10,MARK 49 |
1 | ||
| 90564-46037 |
GSE22 T=3.28,MARK 55 |
1 | ||
| 90564-46038 |
GSE22 T=3.32,MARK 56 |
1 | ||
| 90564-46016 |
GSE22 T=2.66,MARK 34 |
1 | ||
| 90564-46043 |
GSE22 T=3.46,MARK 61 |
1 | ||
| 90564-46030 |
GSE22 T=3.08,MARK 48 |
1 | ||
| 90201-52005 |
GSE22 T=2.70,MARK 05 |
1 | ||
| 90201-52003 |
GSE22 T=2.64,MARK 03 |
1 | ||
| 90201-52001 |
GSE22 T=2.58,MARK 01 |
1 | ||
| 90201-52009 |
GSE22 T=2.82,MARK 09 |
1 | ||
| 90201-52007 |
GSE22 T=2.76,MARK 07 |
1 | ||
| 90564-46034 |
GSE22 T=3.20,MARK 52 |
1 | ||
| 90201-52029 |
GSE22 T=3.42,MARK 29 |
1 | ||
| 90201-52019 |
GSE22 T=3.12,MARK 19 |
1 | ||
| 90564-46040 |
GSE22 T=3.38,MARK 58 |
1 | ||
| 90201-52021 |
GSE22 T=3.18,MARK 21 |
1 | ||
| 90201-52011 |
GSE22 T=2.88,MARK 11 |
1 | ||
| 90564-46014 |
GSE22 T=2.60,MARK 32 |
1 | ||
| 90201-52031 |
GSE22 T=3.48,MARK 31 |
1 | ||
| 90564-46018 |
GSE22 T=2.72,MARK 36 |
1 | ||
| 90564-46016 |
GSE22 T=2.66,MARK 34 |
1 | ||
| 90564-46017 |
GSE22 T=2.68,MARK 35 |
1 | ||
| 90201-52027 |
GSE22 T=3.36,MARK 27 |
1 | ||
| 90201-52017 |
GSE22 T=3.06,MARK 17 |
1 | ||
| 90564-46022 |
GSE22 T=2.84,MARK 40 |
1 | ||
| 90201-52015 |
GSE22 T=3.00,MARK 15 |
1 | ||
| 90564-46015 |
GSE22 T=2.62,MARK 33 |
1 | ||
| 90201-52025 |
GSE22 T=3.30,MARK 25 |
1 | ||
| 90564-46020 |
GSE22 T=2.78,MARK 38 |
1 | ||
| 90564-46019 |
GSE22 T=2.74,MARK 37 |
1 | ||
| 90564-46028 |
GSE22 T=3.02,MARK 46 |
1 | ||
| 90564-46026 |
GSE22 T=2.96,MARK 44 |
1 | ||
| 90201-52013 |
GSE22 T=2.94,MARK 13 |
1 | ||
| 90564-46027 |
GSE22 T=2.98,MARK 45 |
1 | ||
| 90564-46035 |
GSE22 T=3.22,MARK 53 |
1 | ||
| 90564-46030 |
GSE22 T=3.08,MARK 48 |
1 | ||
| 90564-46021 |
GSE22 T=2.80,MARK 39 |
1 | ||
| 90564-46024 |
GSE22 T=2.90,MARK 42 |
1 | ||
| 90564-46025 |
GSE22 T=2.92,MARK 43 |
1 | ||
| 90564-46029 |
GSE22 T=3.04,MARK 47 |
1 | ||
| 90564-46023 |
GSE22 T=2.86,MARK 41 |
1 | ||
| 90564-46034 |
GSE22 T=3.20,MARK 52 |
1 | ||
| 90564-46032 |
GSE22 T=3.14,MARK 50 |
1 | ||
| 90564-46033 |
GSE22 T=3.16,MARK 51 |
1 | ||
| 90564-46043 |
GSE22 T=3.46,MARK 61 |
1 | ||
| 90201-52023 |
GSE22 T=3.24,MARK 23 |
1 | ||
| 90564-46036 |
GSE22 T=3.26,MARK 54 |
1 | ||
| 90564-46039 |
GSE22 T=3.34,MARK 57 |
1 | ||
| 90564-46042 |
GSE22 T=3.44,MARK 60 |
1 | ||
| 90564-46031 |
GSE22 T=3.10,MARK 49 |
1 | ||
| 90564-46038 |
GSE22 T=3.32,MARK 56 |
1 | ||
| 90564-46041 |
GSE22 T=3.40,MARK 59 |
1 | ||
| 90564-46040 |
GSE22 T=3.38,MARK 58 |
1 | ||
| 90564-46037 |
GSE22 T=3.28,MARK 55 |
1 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-30060 |
GSE22 |
1 | ||
| 41651-30060 |
GSE22 |
1 | ||
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-30070 |
GSE22 |
1 | ||
| 41651-30070 |
GSE22 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-30060 |
GSE22 |
2 | ||
| 41653-30060 |
GSE22 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-30040 |
GSE22 |
2 | ||
| 41654-30040 |
GSE22 |
2 | ||
| Linked diagrams | ||||
| 4102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
