GSE22L-AETLKV (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0808- )GCC

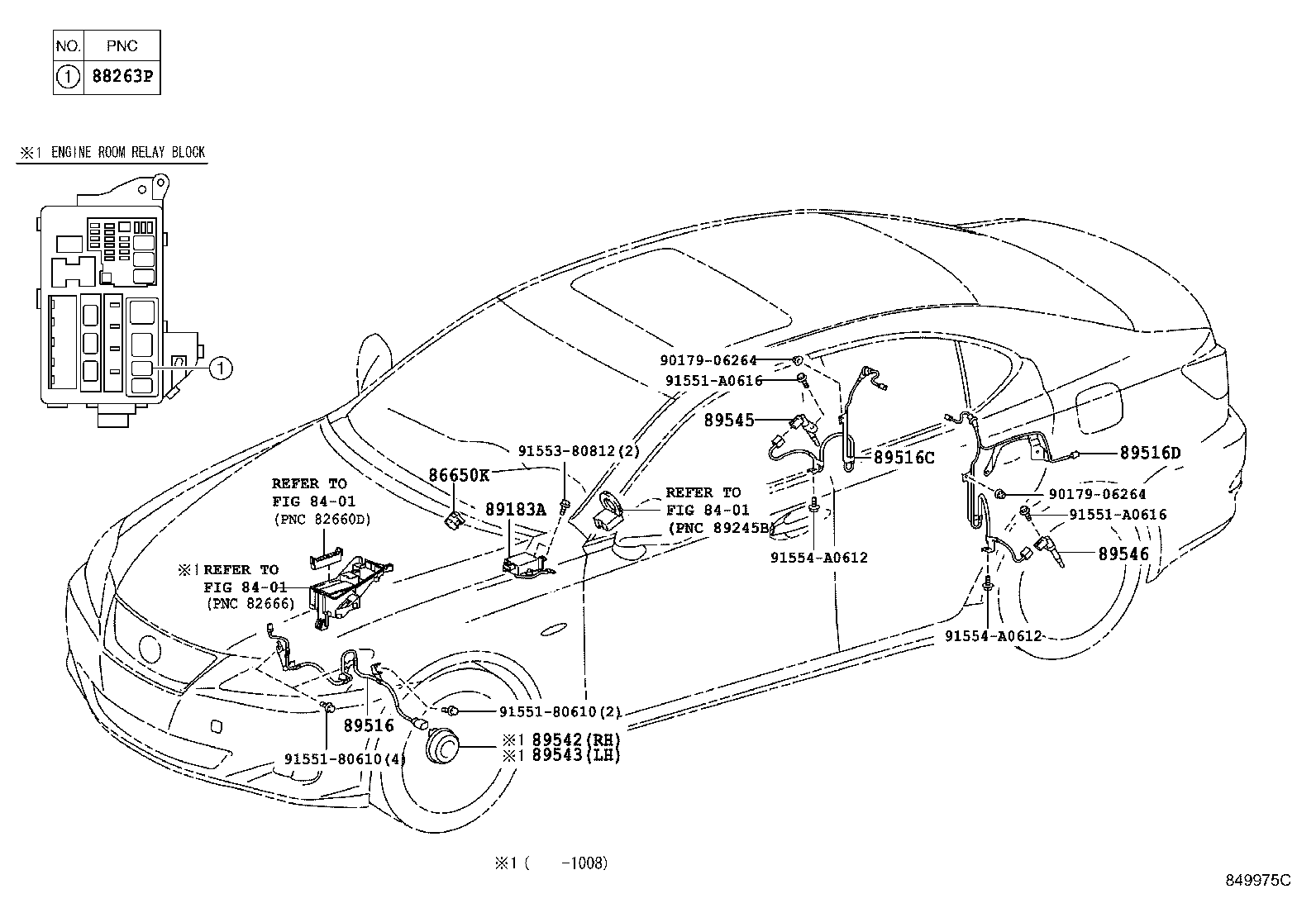

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
GSE22 |
1 | ||
| 86652-48010 |
GSE22 |
1 | ||
| 88263P - RELAY, STOP LAMP CONTROL | ||||
| 90987-04004 |
GSE22 |
1 | ||
| 90987-04004 |
GSE22 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-53030 |
GSE22 |
1 | ||
| 89180-53010 |
GSE22 |
1 | ||
| 89180-22020 |
GSE22 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30020 |
GSE22 RH |
1 | ||
| 89516-30030 |
GSE22 LH |
1 | ||
| 89516-30030 |
GSE22 LH |
1 | ||
| 89516-30020 |
GSE22 RH |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-22020 |
GSE22 |
1 | ||
| 89516-22020 |
GSE22 |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-22040 |
GSE22 |
1 | ||
| 89516-22040 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 89516-22010 |
GSE22 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-30260 |
GSE22 |
1 | ||
| 89542-30260 |
GSE22 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-30260 |
GSE22 |
1 | ||
| 89543-30260 |
GSE22 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GSE22 |
1 | ||
| 89545-30070 |
GSE22 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
GSE22 |
1 | ||
| 89546-30070 |
GSE22 |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 91551-80610 | ||||
| 91551-A0616 | ||||
| 91553-80812 | ||||
| 91554-A0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
