GSE22L-AETLKV (2008)
Toyota Lexus Is250/300

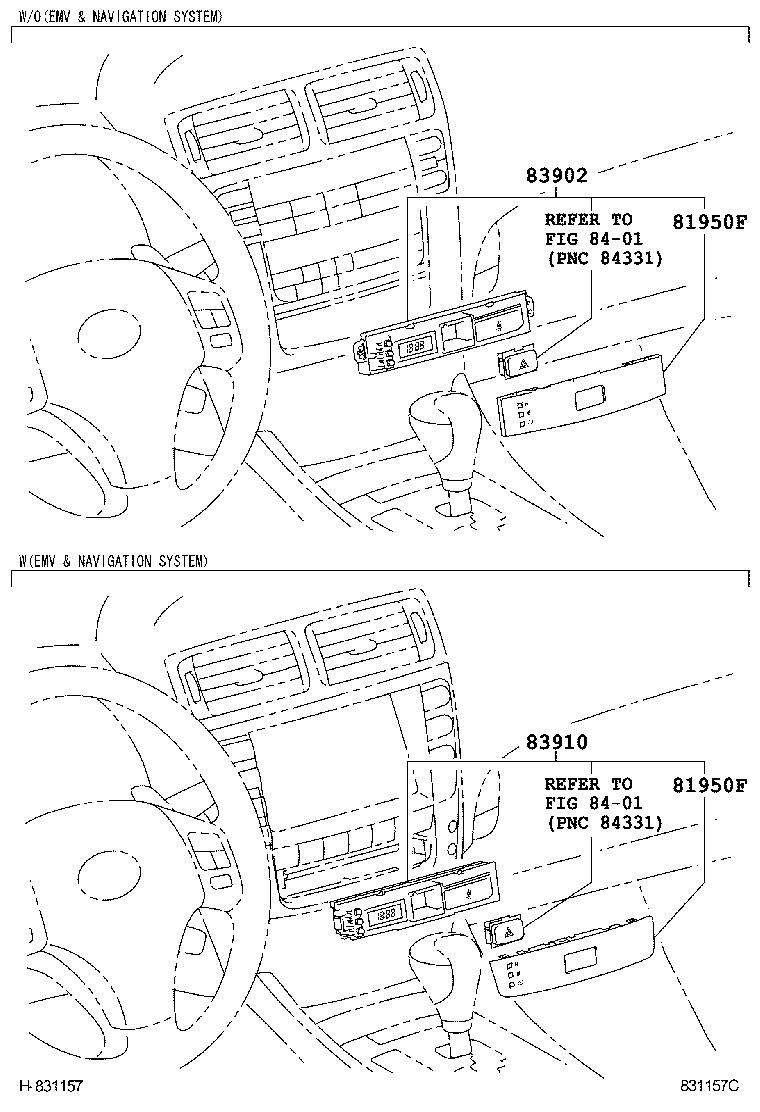

ILLUST NO. 2 OF 2(0604- )
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81950F - LENS ASSY, CLOCK & INDICATOR | ||||
| 81950-53210 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
1 | ||
| 81950-53170 |
GSE22..GCC |
1 | ||
| 81950-53170 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 81950-53210 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 81950-53210 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 81950-53170 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 81950-53170 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
1 | ||
| 81950-53150 |
GSE22..GCC ARGENTINA SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 81950-53150 |
GSE22..GCC ARGENTINA SPEC |
1 | ||
| 81950-53210 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 81950-53170 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 81950F - LENS ASSY, CLOCK & INDICATOR | ||||
| 81950-53210 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
1 | ||
| 81950-53170 |
GSE22..GCC |
1 | ||
| 81950-53170 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 81950-53210 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 81950-53210 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 81950-53170 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 81950-53170 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
1 | ||
| 81950-53150 |
GSE22..GCC ARGENTINA SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 81950-53150 |
GSE22..GCC ARGENTINA SPEC |
1 | ||
| 81950-53210 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 81950-53170 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 83902 - CLOCK SUB-ASSY | ||||
| 83902-53110 |
GSE22..GCC AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 83902-53090 |
GSE22..GCC ARGENTINA SPEC |
1 | ||
| 83902-53090 |
GSE22..GCC ARGENTINA SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 83902-53110 |
GSE22..GCC CHINA SPEC |
1 | ||
| 83902-53110 |
GSE22..GCC |
1 | ||
| 83902-53110 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
1 | ||
| 83902-53110 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 83902-53110 |
GSE22..GCC MOROCCO SPEC |
1 | ||
| 83902-53110 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 83902-53110 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-53100 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 83910-53100 |
GSE22..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
1 | ||
| 83910-53100 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 83910-53100 |
GSE22..GCC CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

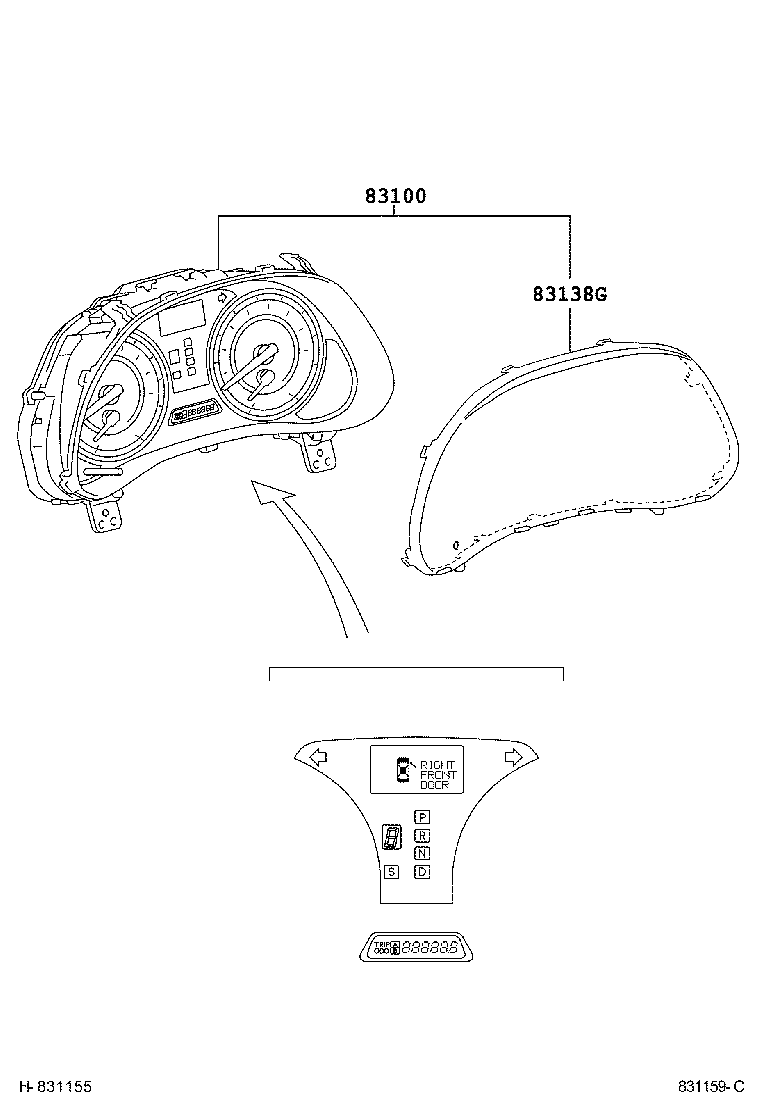

ILLUST NO. 1 OF 2(0604- )
METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-53B61 |
GSE22..GCC CHINA SPEC |
1 | ||
| 83800-53740 |
GSE22 |
1 | ||
| 83800-53B50 |
GSE22..GCC |
1 | ||
| 83800-53B70 |
GSE22..GCC PHILIPPINE SPEC |
1 | ||
| 83800-53B70 |
GSE22..GCC MOROCCO SPEC |
1 | ||
| 83800-53B62 |
GSE22..GCC CHINA SPEC |
1 | ||
| 83800-53B60 |
GSE22..GCC CHINA SPEC |
1 | ||
| 83800-53B70 |
GSE22..GCC ARGENTINA SPEC |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-53730 |
GSE22 |
1 | ||
| 83852-53730 |
GSE22 |
1 | ||
