Toyota Lexus is250/300 GSE22 FUEL TANK & TUBE

GSE22L-AETLKV (2008)

Toyota Lexus Is250/300

Production Aug 2008 - Aug 2010

Engine 3GRFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

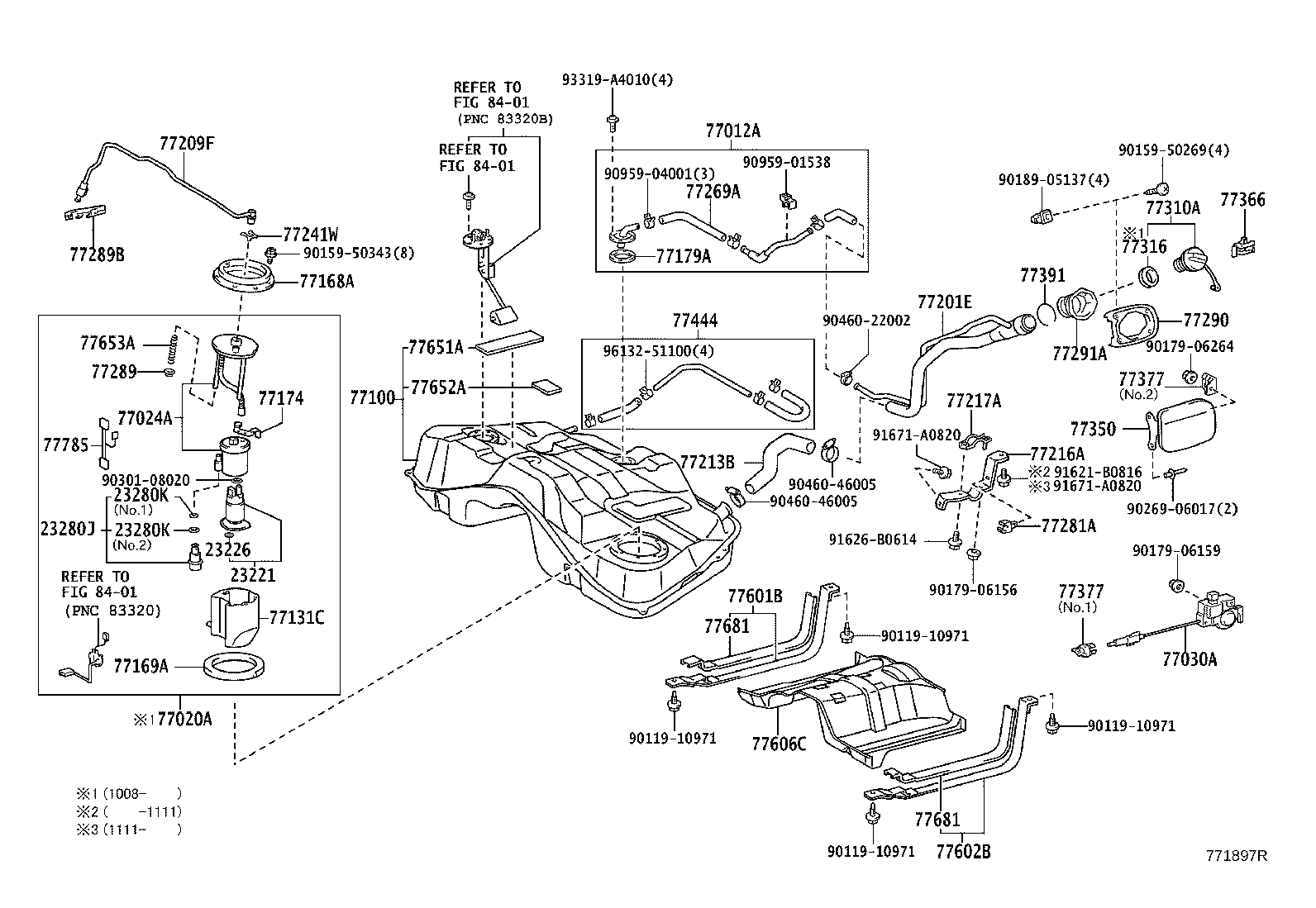

ILLUST NO. 1 OF 2(0604- )GSE22

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23220-31070	3GRFE..GSE22	08/2008 - 03/2009	1
23220-31031	3GRFE..GSE22..GCC CHINA SPEC	07/2009 - 08/2010	1
23220-31030	3GRFE..GSE22..GCC CHINA SPEC	08/2008 - 06/2009	1
23220-31030	3GRFE..GSE22..GCC ARGENTINA SPEC	08/2008 - 06/2009	1
23220-31070	3GRFE..GSE22	04/2006 - 08/2008	1
23220-31071	3GRFE..GSE22	07/2009 - 08/2010	1
23220-31031	3GRFE..GSE22..GCC ARGENTINA SPEC	07/2009 - 08/2010	1
23220-31070	3GRFE..GSE22	03/2009 - 06/2009	1
23226 - RING, O(FOR FUEL PUMP)
90301-11025	3GRFE..GSE22	04/2006 - 08/2008	1
90301-11025	3GRFE..GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
90301-11025	3GRFE..GSE22	08/2008 - 03/2009	1
90301-11025	3GRFE..GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
90301-11025	3GRFE..GSE22	03/2009 - 08/2010	1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010	3GRFE..GSE22	03/2009 - 08/2010	1
23280-21010	3GRFE..GSE22	04/2006 - 08/2008	1
23280-21010	3GRFE..GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
23280-21010	3GRFE..GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
23280-21010	3GRFE..GSE22	08/2008 - 03/2009	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	3GRFE..GSE22 NO.1	04/2006 - 08/2008	1
90301-04013	3GRFE..GSE22 NO.1	08/2008 - 03/2009	1
90301-15024	3GRFE..GSE22 NO.2	04/2006 - 08/2008	1
90301-15024	3GRFE..GSE22 NO.2	08/2008 - 03/2009	1
90301-04013	3GRFE..GSE22..GCC CHINA SPEC,NO.1	03/2009 - 08/2010	1
90301-15024	3GRFE..GSE22..GCC CHINA SPEC,NO.2	03/2009 - 08/2010	1
90301-15024	3GRFE..GSE22..GCC ARGENTINA SPEC,NO.2	03/2009 - 08/2010	1
90301-04013	3GRFE..GSE22..GCC ARGENTINA SPEC,NO.1	03/2009 - 08/2010	1
90301-04013	3GRFE..GSE22 NO.1	03/2009 - 08/2010	2
90301-15024	3GRFE..GSE22 NO.2	03/2009 - 08/2010	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	3GRFE..GSE22 NO.1	04/2006 - 08/2008	1
90301-04013	3GRFE..GSE22 NO.1	08/2008 - 03/2009	1
90301-15024	3GRFE..GSE22 NO.2	04/2006 - 08/2008	1
90301-15024	3GRFE..GSE22 NO.2	08/2008 - 03/2009	1
90301-04013	3GRFE..GSE22..GCC CHINA SPEC,NO.1	03/2009 - 08/2010	1
90301-15024	3GRFE..GSE22..GCC CHINA SPEC,NO.2	03/2009 - 08/2010	1
90301-15024	3GRFE..GSE22..GCC ARGENTINA SPEC,NO.2	03/2009 - 08/2010	1
90301-04013	3GRFE..GSE22..GCC ARGENTINA SPEC,NO.1	03/2009 - 08/2010	1
90301-04013	3GRFE..GSE22 NO.1	03/2009 - 08/2010	2
90301-15024	3GRFE..GSE22 NO.2	03/2009 - 08/2010	1
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-53040	GSE22	04/2006 - 08/2008	1
77012-53040	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77012-53040	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77012-53040	GSE22	03/2009 - 08/2010	1
77012-53040	GSE22	08/2008 - 03/2009	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-53030	GSE22..GCC ARGENTINA SPEC	03/2009 - 06/2009	1
77024-53031	GSE22..GCC CHINA SPEC	07/2009 - 08/2010	1
77024-53030	GSE22..GCC CHINA SPEC	03/2009 - 06/2009	1
77024-53030	GSE22	08/2008 - 03/2009	1
77024-53030	GSE22	04/2006 - 09/2007	1
77024-53031	GSE22..GCC ARGENTINA SPEC	07/2009 - 08/2010	1
77024-53031	GSE22	07/2009 - 08/2010	1
77024-53030	GSE22	03/2009 - 06/2009	1
77030A - LOCK ASSY, FUEL LID W/MOTOR
77030-51030	GSE22	04/2006 - 08/2008	1
77030-51030	GSE22	08/2008 - 08/2010	1
77100 - TANK ASSY, FUEL
77001-53081	GSE22	08/2008 - 08/2010	1
77001-53060	GSE22	04/2006 - 03/2007	1
77131C - SUB-TANK, FUEL, NO.1
77131-22040	GSE22	04/2006 - 09/2007	1
77131-22041	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77131-22041	GSE22	08/2008 - 03/2009	1
77131-22041	GSE22	03/2009 - 08/2010	1
77131-22041	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77168-52020	GSE22	03/2009 - 08/2010	1
77168-52020	GSE22	08/2008 - 03/2009	1
77168-52020	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77168-52020	GSE22	04/2006 - 08/2008	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010	GSE22	08/2008 - 03/2009	1
77169-52010	GSE22	04/2006 - 09/2007	1
77169-52010	GSE22	03/2009 - 08/2010	1
77169-52010	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77169-52010	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-22010	GSE22	04/2006 - 09/2007	1
77174-22010	GSE22	03/2009 - 06/2009	1
77174-22010	GSE22	08/2008 - 03/2009	1
77174-22010	GSE22..GCC CHINA SPEC	03/2009 - 06/2009	1
77174-48020	GSE22	07/2009 - 08/2010	1
77174-22010	GSE22..GCC ARGENTINA SPEC	03/2009 - 06/2009	1
77174-48020	GSE22..GCC ARGENTINA SPEC	07/2009 - 08/2010	1
77174-48020	GSE22..GCC CHINA SPEC	07/2009 - 08/2010	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-20040	GSE22	04/2006 - 08/2008	1
77179-20040	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77179-20040	GSE22	08/2008 - 03/2009	1
77179-20040	GSE22	03/2009 - 08/2010	1
77179-20040	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-53060	GSE22	04/2006 - 08/2008	1
77201-53060	GSE22	08/2008 - 08/2010	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-53020	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77209-53020	GSE22	04/2006 - 08/2008	1
77209-53020	GSE22	08/2008 - 03/2009	1
77209-53020	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77209-53020	GSE22	03/2009 - 08/2010	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-22100	GSE22..GCC CHINA SPEC	08/2008 - 08/2010	1
77213-22100	GSE22	04/2006 - 08/2008	1
77213-22100	GSE22..GCC ARGENTINA SPEC	08/2008 - 08/2010	1
77213-22100	GSE22	08/2008 - 08/2010	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-30050	GSE22	04/2006 - 08/2008	1
77216-30050	GSE22	08/2008 - 08/2010	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-30130	GSE22	08/2008 - 08/2010	1
77217-30130	GSE22	04/2006 - 08/2008	1
77241W - CLIP, TUBE JOINT
77241-60320	GSE22..GCC ARGENTINA SPEC	03/2009 - 01/2010	1
77241-33011	GSE22	02/2010 - 08/2010	2
77241-60320	GSE22	03/2009 - 01/2010	2
77241-33011	GSE22..GCC CHINA SPEC	02/2010 - 08/2010	1
77241-60320	GSE22	08/2008 - 03/2009	1
77241-60320	GSE22..GCC CHINA SPEC	03/2009 - 01/2010	1
77241-60320	GSE22	04/2006 - 08/2008	1
77241-33011	GSE22..GCC ARGENTINA SPEC	02/2010 - 08/2010	1
77269A - HOSE, FUEL TANK BREATHER
77269-22010	GSE22	04/2006 - 08/2008	1
77269-22010	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77269-22010	GSE22	03/2009 - 08/2010	1
77269-22010	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77269-22010	GSE22	08/2008 - 03/2009	1
77281A - CLAMP, FUEL FILLER PIPE
77281-50020	GSE22	04/2006 - 08/2008	1
77281-50020	GSE22	08/2008 - 08/2010	1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-52090	GSE22	04/2006 - 09/2007	1
77289-52090	GSE22	08/2008 - 03/2009	1
77289-52090	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77289-52090	GSE22	03/2009 - 08/2010	1
77289-52090	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-53020	GSE22	08/2008 - 08/2010	1
77289-53020	GSE22	04/2006 - 08/2008	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-53010	GSE22	08/2008 - 08/2010	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-53030	GSE22	08/2008 - 08/2010	1
77310A - CAP ASSY, FUEL TANK
77300-52030	GSE22	04/2006 - 08/2008	1
77300-52030	GSE22	08/2008 - 08/2010	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-53050	GSE22	08/2008 - 08/2010	1
77350-53050	GSE22	04/2006 - 08/2008	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30070	GSE22	08/2008 - 08/2010	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-22060	GSE22 NO.2	04/2006 - 08/2008	1
77377-22060	GSE22 NO.2	08/2008 - 08/2010	1
77377-12050	GSE22 NO.1	04/2006 - 08/2008	1
77377-12050	GSE22 NO.1	08/2008 - 08/2010	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-22060	GSE22 NO.2	04/2006 - 08/2008	1
77377-22060	GSE22 NO.2	08/2008 - 08/2010	1
77377-12050	GSE22 NO.1	04/2006 - 08/2008	1
77377-12050	GSE22 NO.1	08/2008 - 08/2010	1
77391 - RING, FUEL INLET BOX
77391-12020	GSE22	08/2008 - 08/2010	1
77444 - HOSE, FUEL TANK VENT
77404-53040	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77404-53040	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77404-53040	GSE22	08/2008 - 03/2009	1
77404-53040	GSE22	03/2009 - 08/2010	1
77404-53040	GSE22	04/2006 - 08/2008	1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-53020	GSE22	04/2006 - 08/2008	1
77601-53020	GSE22	08/2008 - 08/2010	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77601-22110	GSE22	04/2006 - 08/2008	1
77601-22110	GSE22	08/2008 - 08/2010	1
77606C - PROTECTOR, FUEL TANK, NO.2
77606-53030	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77606-53030	GSE22	08/2008 - 03/2009	1
77606-53030	GSE22	04/2006 - 08/2008	1
77606-53030	GSE22	03/2009 - 08/2010	1
77606-53030	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77651A - CUSHION, FUEL TANK, NO.1
77651-53010	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77651-53010	GSE22	08/2008 - 03/2009	1
77651-53010	GSE22	04/2006 - 08/2008	1
77651-53010	GSE22	03/2009 - 08/2010	1
77651-53010	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77652A - CUSHION, FUEL TANK, NO.2
77652-12100	GSE22	04/2006 - 08/2008	10
77652-12100	GSE22	08/2008 - 03/2009	10
77652-12100	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	10
77652-12100	GSE22	03/2009 - 08/2010	10
77652-12100	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	10
77653A - CUSHION, FUEL TANK, NO.3
77652-22090	GSE22	03/2009 - 08/2010	1
77652-22090	GSE22	08/2008 - 03/2009	1
77652-22090	GSE22	04/2006 - 09/2007	1
77652-22090	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
77652-22090	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77681 - SEAT, FUEL TANK BAND, RH
77681-22020	GSE22	08/2008 - 08/2010	2
77681-22020	GSE22	04/2006 - 08/2008	2
77681 - SEAT, FUEL TANK BAND, RH
77681-22020	GSE22	08/2008 - 08/2010	2
77681-22020	GSE22	04/2006 - 08/2008	2
77785 - HARNESS, FUEL PUMP
77785-0N010	GSE22	08/2008 - 03/2009	1
77785-0N010	GSE22	04/2006 - 09/2007	1
77785-0N010	GSE22	03/2009 - 08/2010	1
77785-0N010	GSE22..GCC ARGENTINA SPEC	03/2009 - 08/2010	1
77785-0N010	GSE22..GCC CHINA SPEC	03/2009 - 08/2010	1
Common parts
90119-10971
90159-50269
90159-50343
90179-06156
90179-06159
90179-06264
90189-05137
90269-06017
90301-08020
90460-22002
90460-46005
90959-01538
90959-04001
91621-B0816
91626-B0614
91671-A0820
93319-A4010
96132-51100
Linked diagrams
8401

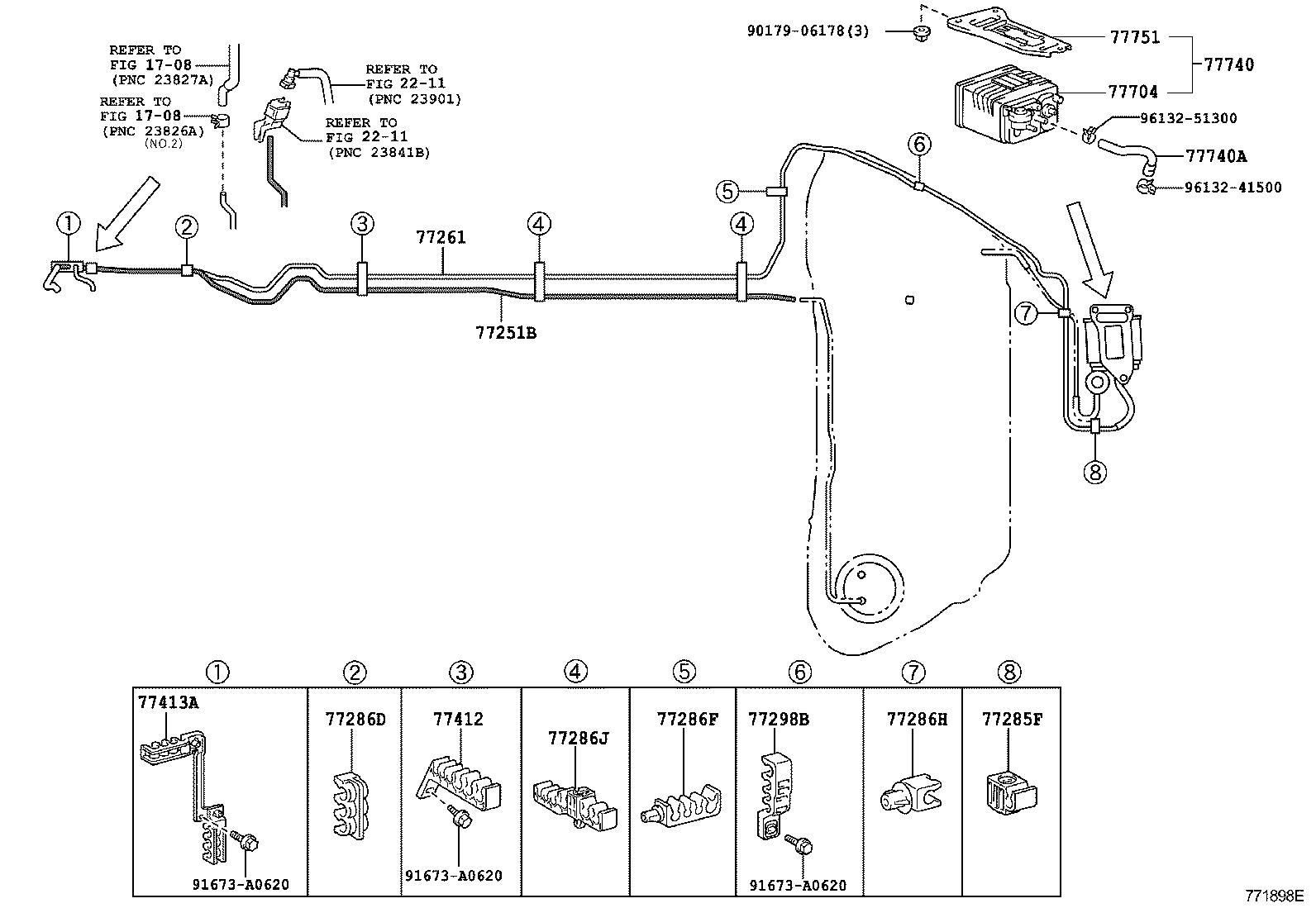

ILLUST NO. 2 OF 2(0604- )GSE22

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-53050	GSE22	08/2008 - 08/2010	1
77251-53050	GSE22	04/2006 - 08/2008	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-53090	GSE22	04/2006 - 08/2008	1
77261-53090	GSE22	08/2008 - 08/2010	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-50030	GSE22	04/2006 - 08/2008	1
77285-50030	GSE22	08/2008 - 08/2010	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-20170	GSE22	04/2006 - 11/2006	1
77286-30170	GSE22	08/2008 - 08/2010	1
77286F - CLAMP, FUEL TUBE, NO.2
77286-30110	GSE22	04/2006 - 08/2008	1
77286-30110	GSE22	08/2008 - 08/2010	1
77286H - CLAMP, FUEL TUBE, NO.3
77286-30120	GSE22	08/2008 - 08/2010	1
77286-30120	GSE22	04/2006 - 08/2008	1
77286J - CLAMP, FUEL TUBE, NO.4
77289-30060	GSE22	04/2006 - 08/2008	2
77289-30060	GSE22	08/2008 - 08/2010	2
77298B - CLAMP, FUEL TUBE, NO.4
77298-30150	GSE22	08/2008 - 08/2010	1
77298-30150	GSE22	04/2006 - 08/2008	1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-30060	GSE22	04/2006 - 08/2008	1
77412-30060	GSE22	08/2008 - 08/2010	1
77413A - SUPPORT, FUEL TUBE GROMMET, NO.3
77413-30070	GSE22	08/2008 - 07/2009	1
77413-30071	GSE22	08/2009 - 08/2010	1
77413-30070	GSE22	04/2006 - 08/2008	1
77704 - CANISTER SUB-ASSY, CHARCOAL
77704-30200	GSE22	08/2008 - 08/2010	1
77704-30200	GSE22	04/2006 - 08/2008	1
77740 - CANISTER ASSY, CHARCOAL
77740-30320	GSE22	04/2006 - 08/2008	1
77740-30320	GSE22	08/2008 - 08/2010	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
23829-46290	GSE22 L=185	04/2006 - 08/2008	1
23829-46290	GSE22 L=185	08/2008 - 08/2010	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-30150	GSE22	04/2006 - 08/2008	1
77751-30150	GSE22	08/2008 - 08/2010	1
Common parts
90179-06178
91673-A0620
96132-41500
96132-51300
Linked diagrams
1708
2211

GSE22L-AETLKV (2008)

ILLUST NO. 1 OF 2(0604- )GSE22

ILLUST NO. 2 OF 2(0604- )GSE22

Part Price Details
