GSE22L-AETLKV (2008)

Toyota Lexus Is250/300

Production Aug 2008 - Aug 2010
Engine 3GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0604- )

Click highlighted areas on diagram

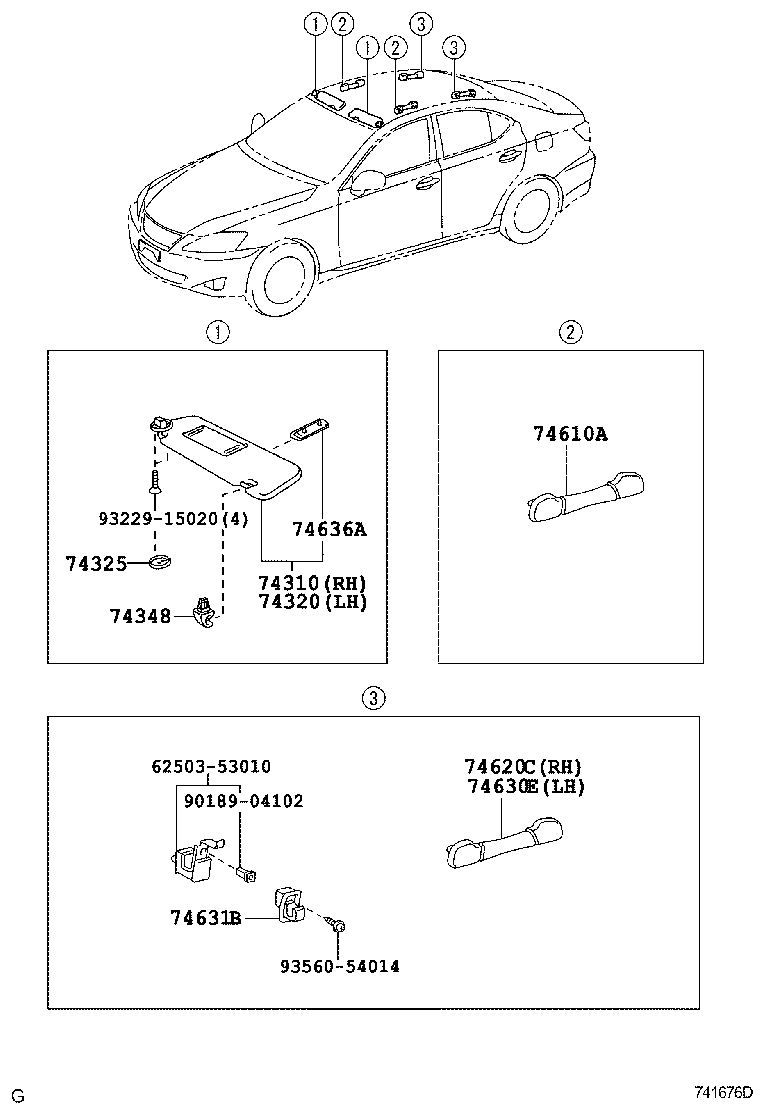

VISOR & ASSIST GRIP

diagram 6250353010 74310 74320 74325 74348 74610A 74620C 74630E 74631B 74636A 9018904102 9322915020 9356054014
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-53190A1

GSE22..GCC

ECRU,TRIM0#

 1
74310-53190B0

GSE22..GCC

LT.GRAY,TRIM1#,2#

 1
74310-53190B1

GSE22..GCC

LT.GRAY,TRIM1#,2#

 1
74310-53340B1

GSE22..GCC

CHINA SPEC,LT.GRAY,TRIM1#,2#

 1
74310-53190A2

GSE22..GCC

ECRU,TRIM0#

 1
74310-53340A1

GSE22..GCC

CHINA SPEC,ECRU,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-53200B0

GSE22..GCC

LT.GRAY,TRIM1#,2#

 1
74320-53200A1

GSE22..GCC

ECRU,TRIM0#

 1
74320-53200A2

GSE22..GCC

ECRU,TRIM0#

 1
74320-53200B1

GSE22..GCC

LT.GRAY,TRIM1#,2#

 1
74325 - COVER, VISOR BRACKET
74317-60020B1

GSE22

LT.GRAY,TRIM1#,2#

 2
74317-60020A5

GSE22

ECRU,TRIM0#

 2
74317-60020B1

GSE22

LT.GRAY,TRIM1#,2#

 2
74317-60020A1

GSE22

IVORY,TRIM0#

 2
74348 - HOLDER, VISOR
74348-12040A1

GSE22

ECRU,TRIM0#

 2
74348-12040B0

GSE22

LT.GRAY,TRIM1#,2#

 2
74348-12040B0

GSE22

LT.GRAY,TRIM1#,2#

 2
74348-12040A3

GSE22

IVORY,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-53030A0

GSE22

IVORY,TRIM0#

 2
74610-53030B0

GSE22

LT.GRAY,TRIM1#,2#

 2
74610-53030A2

GSE22

ECRU,TRIM0#

 2
74610-53030B0

GSE22

LT.GRAY,TRIM1#,2#

 2
74620C - GRIP ASSY, ASSIST, REAR RH
74610-53030B0

GSE22

LT.GRAY,TRIM1#,2#

 1
74610-53030A0

GSE22

IVORY,TRIM0#

 1
74610-53030B0

GSE22

LT.GRAY,TRIM1#,2#

 1
74610-53030A2

GSE22

ECRU,TRIM0#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-53030A2

GSE22

ECRU,TRIM0#

 1
74610-53030B0

GSE22

LT.GRAY,TRIM1#,2#

 1
74610-53030B0

GSE22

LT.GRAY,TRIM1#,2#

 1
74610-53030A0

GSE22

IVORY,TRIM0#

 1
74631B - HOOK, COAT
74605-53020B0

GSE22

MOON ROOF-WITH(AUTO SLIDE),LT.GRAY,TRIM1#,2#

 2
74605-53010A0

GSE22

IVORY,TRIM0#

 2
74605-53010B0

GSE22

LT.GRAY,TRIM1#,2#

 2
74605-53010B0

GSE22

LT.GRAY,TRIM1#,2#

 2
74605-53020A0

GSE22

MOON ROOF-WITH(AUTO SLIDE),IVORY,TRIM0#

 2
74605-53020A1

GSE22

MOON ROOF-WITH(AUTO SLIDE),ECRU,TRIM0#

 2
74605-53010A2

GSE22

ECRU,TRIM0#

 2
74605-53020B0

GSE22

MOON ROOF-WITH(AUTO SLIDE),LT.GRAY,TRIM1#,2#

 2
74636A - BEZEL, CARD HOLDER
74636-30010B6

GSE22

LT.GRAY,TRIM1#,2#

 2
74636-30010A1

GSE22

ECRU,TRIM0#

 2
74636-30010A2

GSE22

IVORY,TRIM0#

 2
74636-30010B6

GSE22

LT.GRAY,TRIM1#,2#

 2
Common parts
62503-53010
90189-04102
93229-15020
93560-54014
