GSE22L-AETLKV (2008)
Toyota Lexus Is250/300
Production
Aug 2008
-
Aug 2010
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

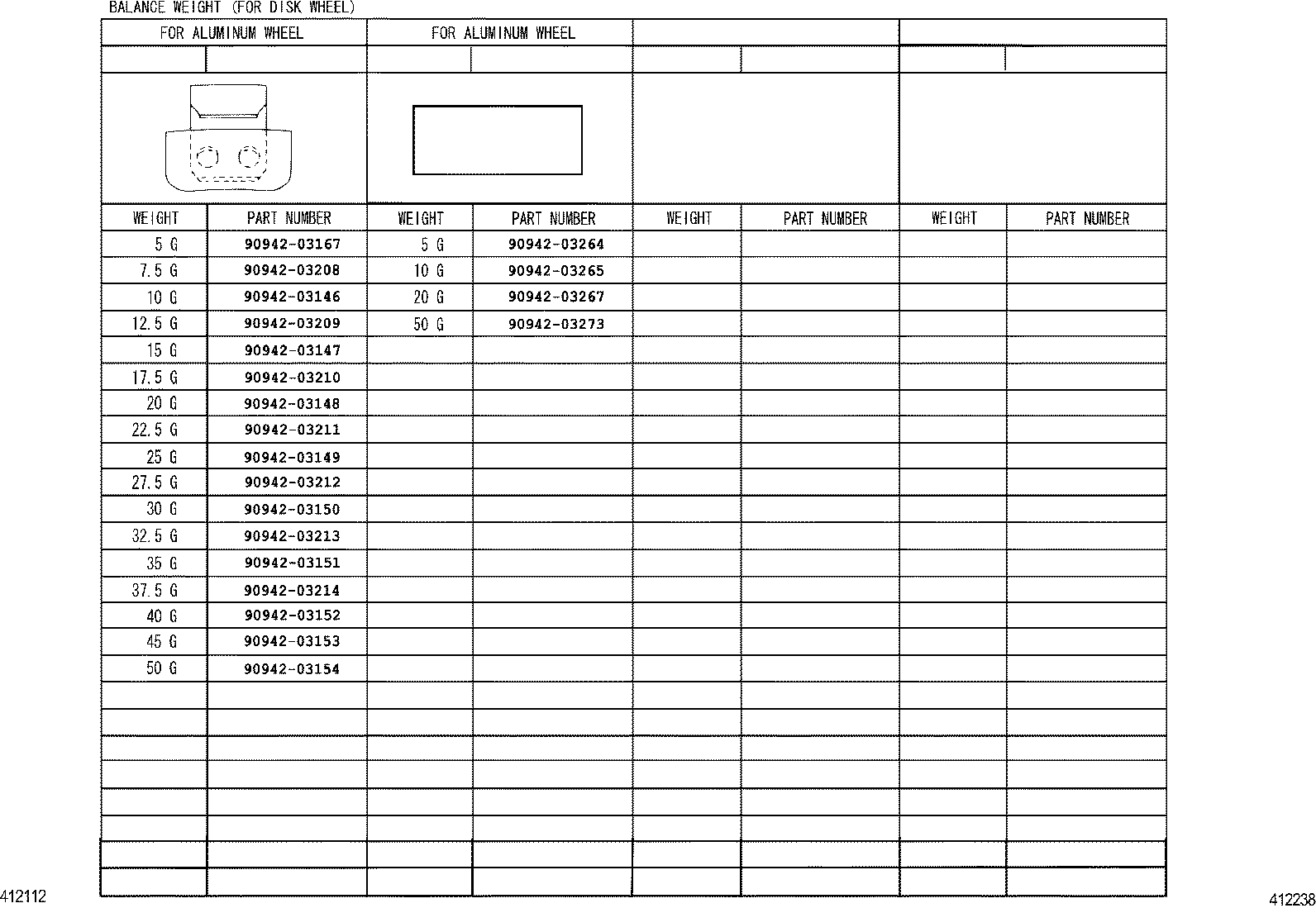

ILLUST NO. 2 OF 2(0604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
ILLUST NO. 1 OF 2(0604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-53300 |
GSE22..GCC 17X8J,#,TYPE E:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-53300 |
GSE22..GCC 17X8J,#,TYPE E:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
GSE22 |
20 | ||
| 90942-01033 |
GSE22 |
20 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-30540 |
GSE22..GCC *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42603-50300 |
GSE22..GCC *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05028 |
GSE22 TYPE B:REFER ILLUST. |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05028 |
GSE22 TYPE B:REFER ILLUST. |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05029 |
GSE22 |
4 | ||
| 90942-05029 |
GSE22 |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05029 |
GSE22 |
1 | ||
| 90942-05029 |
GSE22 |
1 | ||
| 42652 - TIRE | ||||
| 42652-53630 |
GSE22..GCC 245/45R17 *B/S,CHINA SPEC |
2 | ||
| 42652-53421 |
GSE22..GCC 225/45R17 *B/S |
2 | ||
| 42652-53440 |
GSE22..GCC 245/45R17 *B/S |
2 | ||
| 42652-53420 |
GSE22..GCC 225/45R17 *B/S |
2 | ||
| 42652-53620 |
GSE22..GCC 225/45R17 *B/S,CHINA SPEC |
2 | ||
| 42652-53441 |
GSE22..GCC 245/45R17 *B/S |
2 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-53421 |
GSE22..GCC 225/45R17 *B/S |
1 | ||
| 42652-53420 |
GSE22..GCC 225/45R17 *B/S |
1 | ||
| 42652-53620 |
GSE22..GCC 225/45R17 *B/S,CHINA SPEC |
1 | ||
