GSE22L-AETLKV (2008)

Toyota Lexus Is250/300

Production Aug 2008 - Aug 2010
Engine 3GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )3GRFE

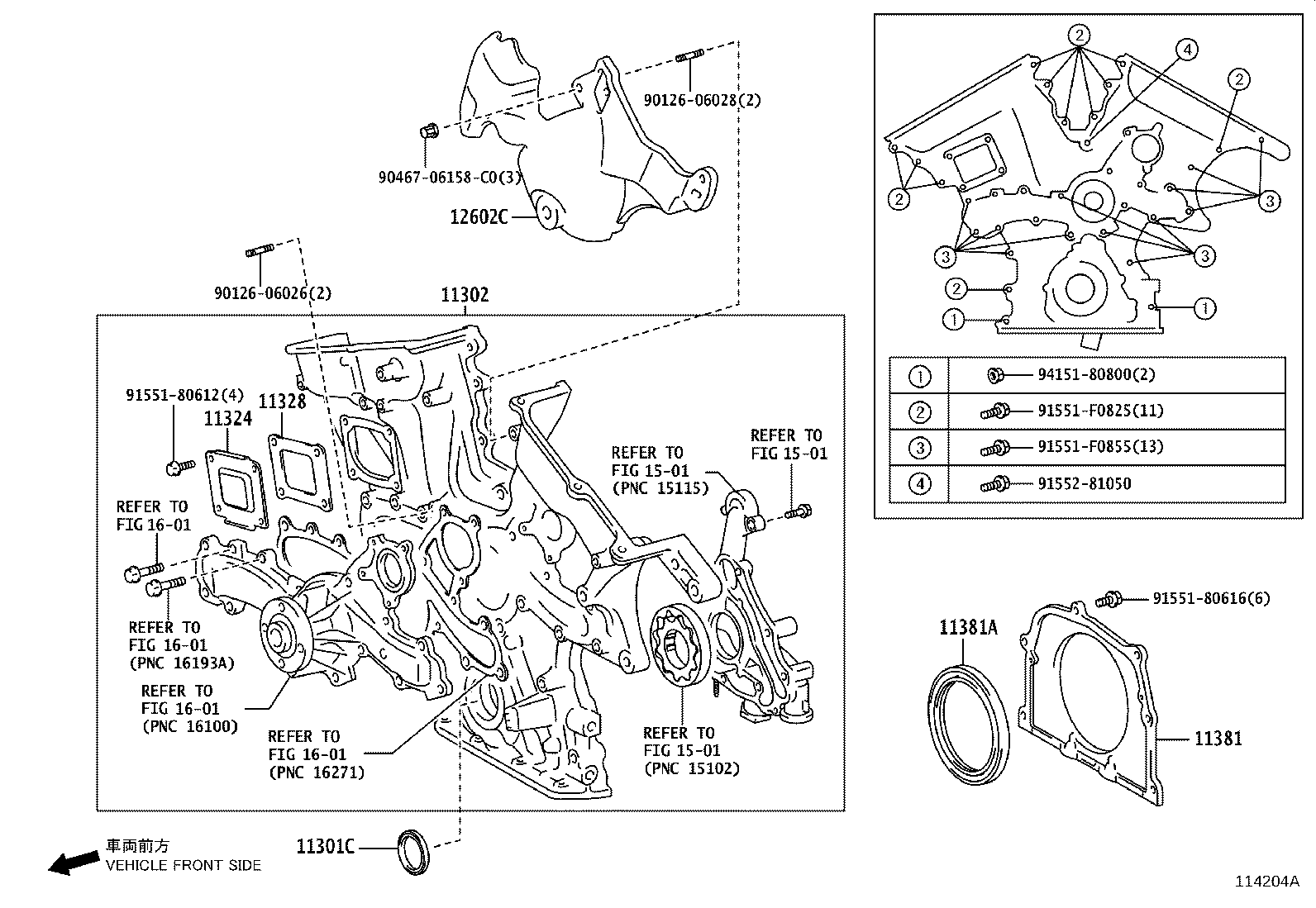

Click highlighted areas on diagram

diagram 11301C 11302 11324 11328 11381 11381A 12602C 1501 1501 1501 1601 1601 1601 1601 9012606026 9012606028 9046706158C0 9155180612 9155180616 91551F0825 91551F0855 9155281050 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42045

3GRFE..GSE22

 1
90311-42037

3GRFE..GSE22

 1
90311-42037

3GRFE..GSE22

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31042

3GRFE..GSE22

 1
11310-31042

3GRFE..GSE22

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

3GRFE..GSE22

 1
11324-31020

3GRFE..GSE22

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030

3GRFE..GSE22

 1
11328-31030

3GRFE..GSE22

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021

3GRFE..GSE22

 1
11381-31021

3GRFE..GSE22

 1
11381A - SEAL, ENGINE REAR OIL
90311-92009

3GRFE..GSE22

 1
90311-92006

3GRFE..GSE22

 1
12602C - COVER, ENGINE, NO.2
12602-31012

3GRFE..GSE22

 1
12602-31012

3GRFE..GSE22

 1
Common parts
90126-06026
90126-06028
90467-06158C0
91551-80612
91551-80616
91551-F0825
91551-F0855
91552-81050
94151-80800
Linked diagrams
1501
1601
