GSE22L-AETLKV (2010)

Toyota Lexus Is250/300

Production Aug 2010 - Apr 2013
Engine 3GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )

Click highlighted areas on diagram

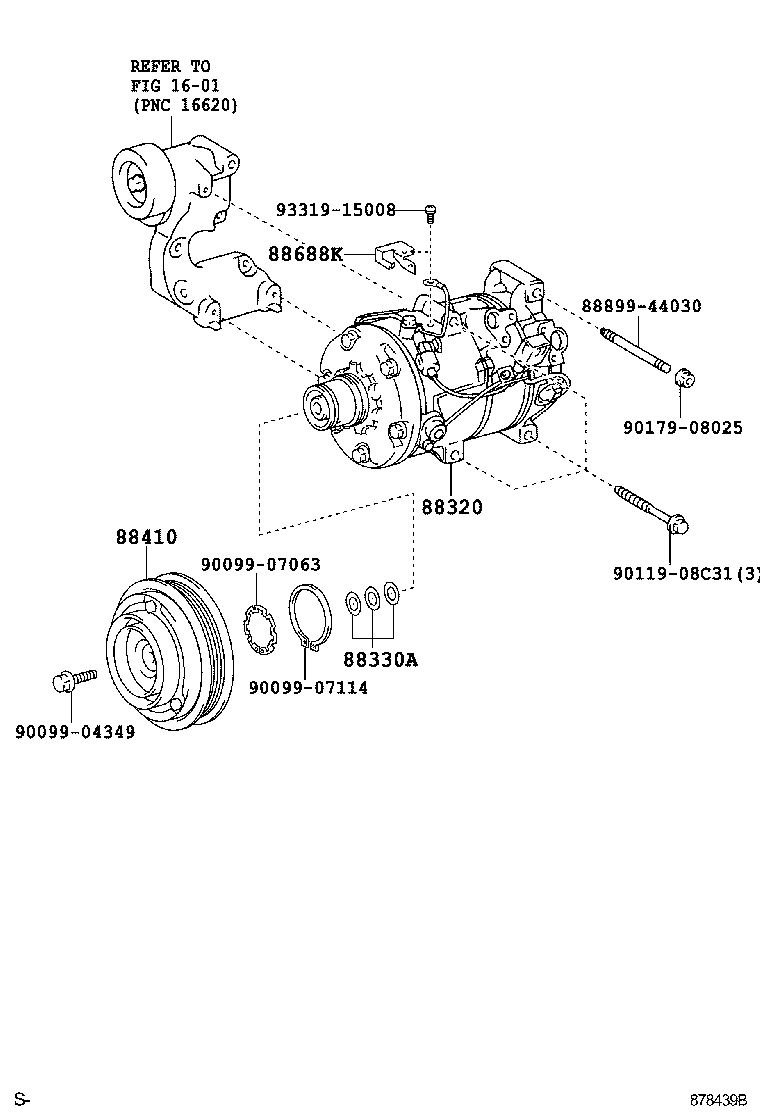

diagram 1601 88320 88330A 88410 88688K 8889944030 9009904349 9009907063 9009907114 9011908C31 9017908025 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-3A320

GSE2#..GCC

 1
88320-3A300

GSE22..GCC

PHILIPPINE SPEC

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GSE22

 1
88335-14020

GSE2#

 1
88410 - CLUTCH ASSY, MAGNET
88410-3A290

GSE22

 1
88410-3A290

GSE2#

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33460

GSE22

 1
88688-33460

GSE2#

 1
Common parts
88899-44030
90099-04349
90099-07063
90099-07114
90119-08C31
90179-08025
93319-15008
Linked diagrams
1601
