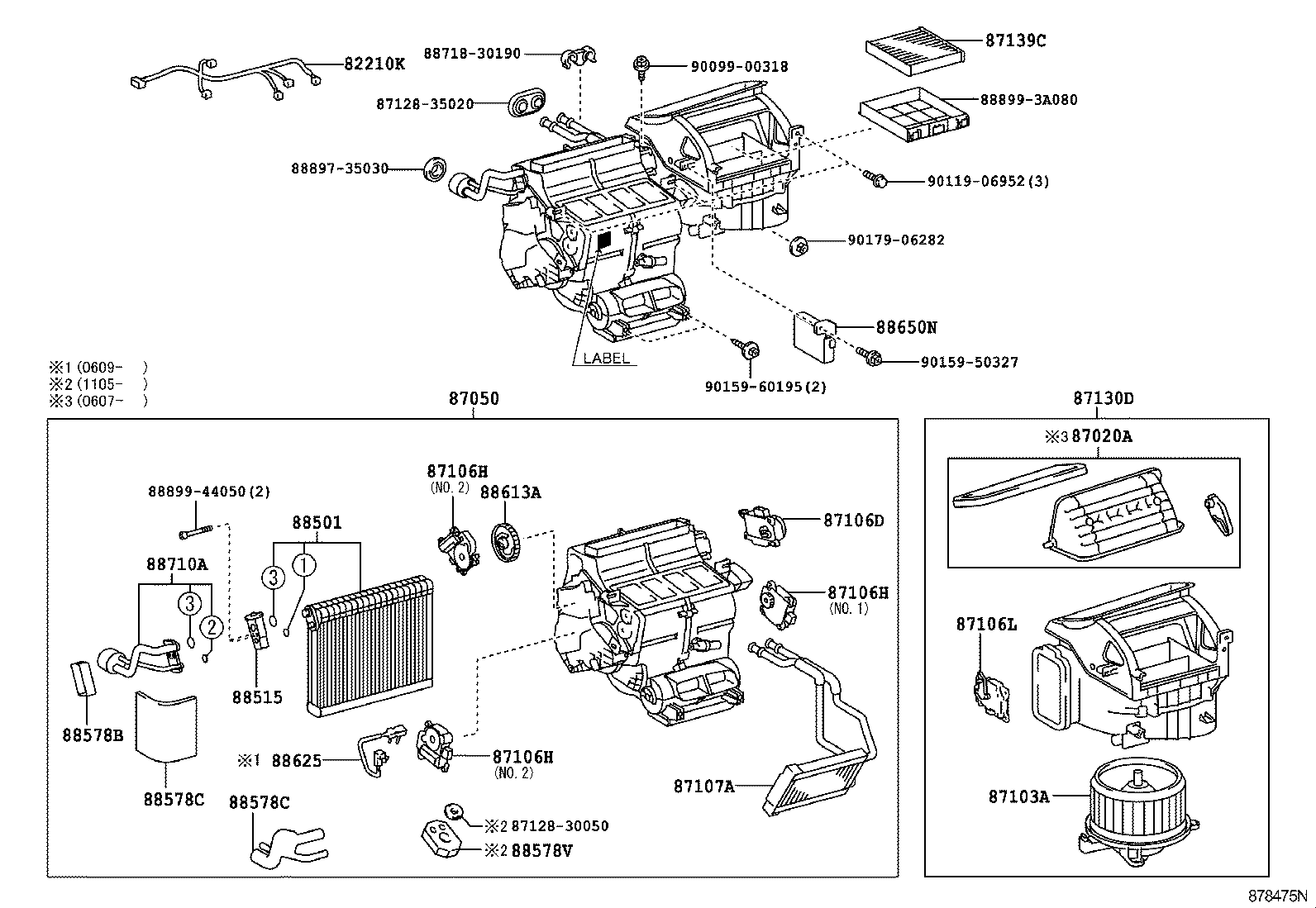

Toyota Lexus is250/300 GSE22 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-30022	GSE2#..GCC	08/2010 - 04/2013	1
87020A - DAMPER ASSY, HEATER AIR
87020-30020	GSE2#..GCC	08/2010 - 12/2999	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30230	GSE2#..GCC	08/2010 - 04/2011	1
87050-30231	GSE2#..GCC	05/2011 - 12/2999	1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30450	GSE2#..GCC	08/2010 - 10/2010	1
87103-30451	GSE2#..GCC	11/2010 - 12/2999	1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-30440	GSE22	04/2006 - 08/2008	1
87106-30440	GSE2#	08/2010 - 12/2999	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430	GSE22 NO.1	04/2006 - 08/2008	1
87106-30450	GSE22 NO.2	04/2006 - 08/2008	2
87106-30430	GSE2# NO.1	08/2010 - 12/2999	1
87106-30450	GSE2# NO.2	08/2010 - 12/2999	2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430	GSE22 NO.1	04/2006 - 08/2008	1
87106-30450	GSE22 NO.2	04/2006 - 08/2008	2
87106-30430	GSE2# NO.1	08/2010 - 12/2999	1
87106-30450	GSE2# NO.2	08/2010 - 12/2999	2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30430	GSE22 NO.1	04/2006 - 08/2008	1
87106-30450	GSE22 NO.2	04/2006 - 08/2008	2
87106-30430	GSE2# NO.1	08/2010 - 12/2999	1
87106-30450	GSE2# NO.2	08/2010 - 12/2999	2
87106L - SERVO SUB-ASSY, DAMPER
87106-30480	GSE2#..GCC	08/2010 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30560	GSE22	04/2006 - 08/2008	1
87107-30560	GSE2#	08/2010 - 12/2999	1
87130D - BLOWER ASSY
87130-30811	GSE2#..GCC	08/2010 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-50060	GSE22 DEODORANT FILTER	04/2006 - 08/2008	1
87139-30040	GSE2# *393	08/2010 - 08/2012	1
87139-30040	GSE22 *393	04/2006 - 08/2008	1
87139-52040	GSE2# *393	08/2012 - 04/2013	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A160	GSE2#	08/2010 - 05/2011	1
88501-3A161	GSE2#	05/2011 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-28180	GSE22	04/2006 - 08/2008	1
88515-30780	GSE2#	05/2011 - 12/2999	1
88515-28180	GSE2#	08/2010 - 05/2011	1
88578B - PACKING, COOLING UNIT, NO.1
88578-30830	GSE22..GCC	04/2006 - 01/2008	1
88578-30830	GSE2#..GCC	08/2010 - 05/2011	1
88578C - PACKING, COOLING UNIT, NO.2
88578-30840	GSE2#..GCC	08/2010 - 05/2011	1
88578-30840	GSE22	04/2006 - 01/2008	1
88578C - PACKING, COOLING UNIT, NO.2
88578-30840	GSE2#..GCC	08/2010 - 05/2011	1
88578-30840	GSE22	04/2006 - 01/2008	1
88578V - PACKING, COOLING UNIT, NO.3
88578-30870	GSE2#	05/2011 - 12/2999	1
88613A - LEVER, COOLER CONTROL, NO.1
88613-30010	GSE2#..GCC	05/2011 - 04/2013	1
88613-30010	GSE22	04/2006 - 08/2008	1
88613-30010	GSE2#..GCC	08/2010 - 05/2011	1
88625 - THERMISTOR, COOLER, NO.1
88620-30020	GSE2#	08/2010 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-53110	GSE22 P/N LABEL=8865053110	04/2006 - 05/2006	1
88650-53120	GSE22 SEAT HEATER-HEAT & COOL,P/N LABEL=8865053120	04/2006 - 05/2006	1
88650-53320	GSE2#..GCC	08/2010 - 10/2010	1
88650-53311	GSE2#..GCC FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)	08/2011 - 08/2012	1
88650-53470	GSE2#..GCC FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)	08/2012 - 12/2999	1
88650-53480	GSE2#..GCC	08/2012 - 12/2999	1
88650-53321	GSE2#..GCC	11/2010 - 08/2012	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A260	GSE22..GCC	04/2006 - 01/2008	1
88710-3A420	GSE2#	05/2011 - 04/2013	1
88710-3A260	GSE2#	08/2010 - 05/2011	1
Common parts
87128-30050
87128-35020
88718-30190
88897-35030
88899-3A080
88899-44050
90099-00318
90119-06952
90159-50327
90159-60195
90179-06282

GSE22L-AETLKV (2010)

ILLUST NO. 2 OF 2(0604- )

ILLUST NO. 1 OF 2(0604- )GCC
