GSE22L-AETLKV (2010)

Toyota Lexus Is250/300

Production Aug 2010 - Apr 2013
Engine 3GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )

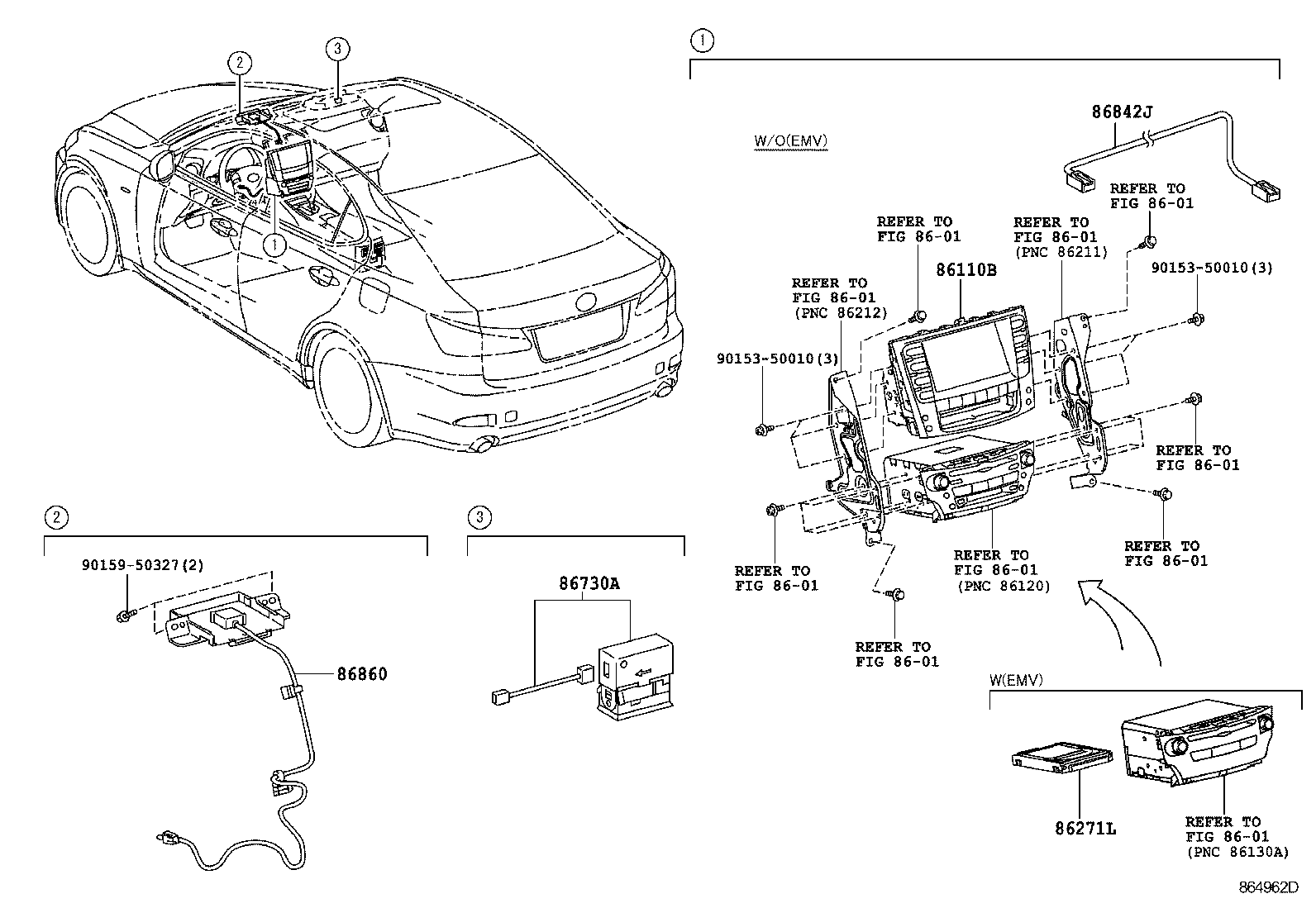

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 86110B 86271L 86730A 86842J 86860 9015350010 9015350010 9015950327
Part # Description Qty Price
86110B - MULTI-DISPLAY ASSY
86110-53240

GSE2#..GCC

DENSO,AUDIO-AM/FM DVD 13SPEAKER

 1
86110-53240

GSE22..GCC

DENSO,PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

 1
86271L - HARD DISC
86271-48250

GSE22..GCC

BRAZIL SPEC&AUDIO-AM/FM DVD 13SPEAKER

 1
86271-30781

GSE22..GCC

PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

 1
86271-30781

GSE22..GCC

PHILIPPINE SPEC&AUDIO-AM/FM DVD 13SPEAKER

 1
86271-48251

GSE22..GCC

BRAZIL SPEC&AUDIO-AM/FM DVD 13SPEAKER

 1
86271-30751

GSE2#..GCC

AUDIO-AM/FM DVD 13SPEAKER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53040

GSE2#..GCC

CAR TELEPHONE-BLUETOOTH TEL

 1
86730-53040

GSE2#..GCC

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-53050

GSE22..GCC

PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

 1
86860-53050

GSE2#..GCC

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

 1
86860-53100

GSE2#..GCC

AUDIO-AM/FM DVD 13SPEAKER

 1
86860-53100

GSE22..GCC

PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

 1
Common parts
90153-50010
90159-50327
Linked diagrams
8601
