GSE22L-AETLKV (2010)
Toyota Lexus Is250/300
ILLUST NO. 2 OF 2(0604- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GSE22 NO.1 |
1 | ||
| 90980-04190 |
GSE22 NO.2 |
2 | ||
| 90980-04066 |
GSE2# NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GSE22 NO.1 |
1 | ||
| 90980-04190 |
GSE22 NO.2 |
2 | ||
| 90980-04066 |
GSE2# NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GSE22 NO.1 |
1 | ||
| 90980-04190 |
GSE22 NO.2 |
2 | ||
| 90980-04066 |
GSE2# NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GSE22 NO.1 |
1 | ||
| 90980-04190 |
GSE22 NO.2 |
2 | ||
| 90980-04066 |
GSE2# NO.1 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 863B0-53010 |
GSE2# |
1 | ||
| 90980-05370 |
GSE22 |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
GSE22 |
2 | ||
| 90980-04184 |
GSE2# |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||

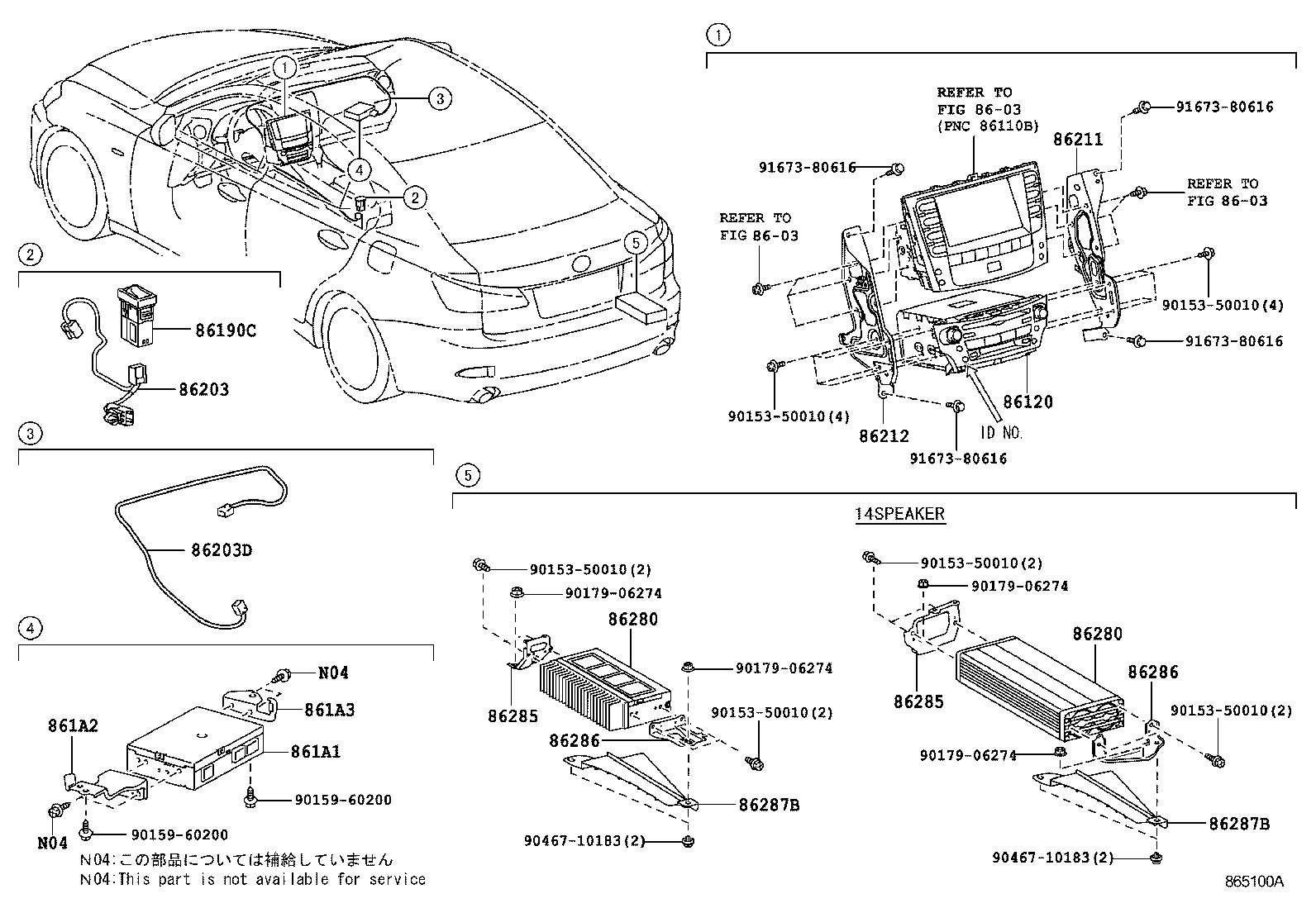

ILLUST NO. 1 OF 2(1208- )GCC
W/O(EMV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-53A90 |
GSE22..GCC PIONEER, ID=P7543,PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86120-53A30 |
GSE2#..GCC PIONEER, ID=P2876 |
1 | ||
| 86120-53B00 |
GSE22..GCC PIONEER, ID=P3830,MOROCCO SPEC |
1 | ||
| 86120-53A60 |
GSE2#..GCC PIONEER, ID=P2877,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 86120-53A91 |
GSE22..GCC PIONEER,PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86120-53C60 |
GSE22..GCC PIONEER, ID=P2883,BRAZIL SPEC |
1 | ||
| 86120-53A30 |
GSE22..GCC PIONEER, ID=P2876,BRAZIL SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86120-53520 |
GSE22..GCC PIONEER, ID=P10127,BRAZIL SPEC |
1 | ||
| 86120-53670 |
GSE22..GCC PIONEER, ID=P10127,BRAZIL SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86120-53670 |
GSE2#..GCC PIONEER, ID=P10127 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53020 |
GSE22 |
1 | ||
| 86190-53040 |
GSE2# |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-48030 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 861A0-77010 |
GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 861A0-48030 |
GSE2# |
1 | ||
| 861A0-77010 |
GSE2#..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 861A0-77010 |
GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 861A0-48030 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 861A0-77010 |
GSE2#..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 861A0-48030 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 861A0-48030 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 861A0-48030 |
GSE2# |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-53010 |
GSE2#..GCC AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 861A2-53010 |
GSE2#..GCC AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 861A2-53010 |
GSE2#..GCC |
1 | ||
| 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 | ||||
| 861A3-53010 |
GSE2#..GCC |
1 | ||
| 861A3-53010 |
GSE2#..GCC AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 861A3-53010 |
GSE2#..GCC AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-53010 |
GSE2# |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-53020 |
GSE2#..GCC |
1 | ||
| 86203-53210 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86203-53210 |
GSE2#..GCC AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-53070 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86211-53030 |
GSE2# |
1 | ||
| 86211-53020 |
GSE22 |
1 | ||
| 86211-53070 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-53070 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86212-53030 |
GSE2# |
1 | ||
| 86212-53070 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86212-53020 |
GSE22 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W360 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86280-0W790 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86280-53110 |
GSE22 |
1 | ||
| 86280-53140 |
GSE2#..GCC |
1 | ||
| 86280-0W740 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86280-53150 |
GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 86280-53210 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W360 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86280-0W790 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86280-53110 |
GSE22 |
1 | ||
| 86280-53140 |
GSE2#..GCC |
1 | ||
| 86280-0W740 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86280-53150 |
GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 86280-53210 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86285-53040 |
GSE22 |
1 | ||
| 86285-53060 |
GSE2# |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86285-53040 |
GSE22 |
1 | ||
| 86285-53060 |
GSE2# |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53040 |
GSE22 |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86286-53090 |
GSE2# |
1 | ||
| 86286-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53040 |
GSE22 |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86286-53090 |
GSE2# |
1 | ||
| 86286-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-53010 |
GSE22 |
1 | ||
| 86287-53010 |
GSE2# |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-53010 |
GSE22 |
1 | ||
| 86287-53010 |
GSE2# |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-60200 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||

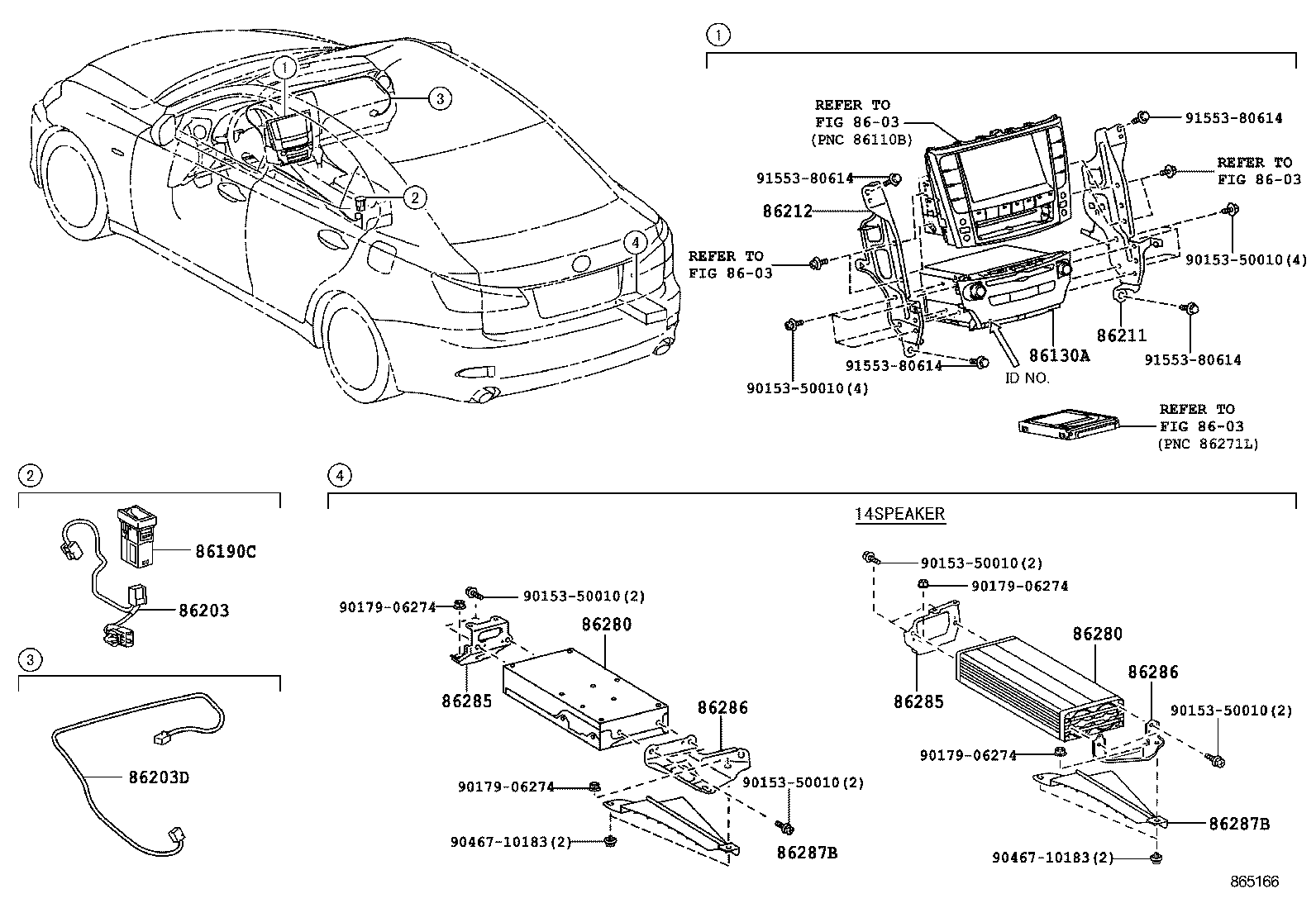

ILLUST NO. 1 OF 2(1208- )GCC
W(EMV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-53G50 |
GSE2#..GCC PIONEER,ID=P10370,AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86804-53J10 |
GSE22..GCC PIONEER,ID=P10375,PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86804-53K00 |
GSE22..GCC PIONEER,ID=P10421,BRAZIL SPEC&AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86804-53J20 |
GSE22..GCC PIONEER,ID=P10376,PHILIPPINE SPEC&AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53020 |
GSE22 |
1 | ||
| 86190-53040 |
GSE2# |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-53010 |
GSE2# |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-53020 |
GSE2#..GCC |
1 | ||
| 86203-53210 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86203-53210 |
GSE2#..GCC AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-53070 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86211-53030 |
GSE2# |
1 | ||
| 86211-53020 |
GSE22 |
1 | ||
| 86211-53070 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-53070 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86212-53030 |
GSE2# |
1 | ||
| 86212-53070 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86212-53020 |
GSE22 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W360 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86280-0W790 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86280-53110 |
GSE22 |
1 | ||
| 86280-53140 |
GSE2#..GCC |
1 | ||
| 86280-0W740 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86280-53150 |
GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 86280-53210 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W360 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86280-0W790 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86280-53110 |
GSE22 |
1 | ||
| 86280-53140 |
GSE2#..GCC |
1 | ||
| 86280-0W740 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86280-53150 |
GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 86280-53210 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86285-53040 |
GSE22 |
1 | ||
| 86285-53060 |
GSE2# |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86285-53040 |
GSE22 |
1 | ||
| 86285-53060 |
GSE2# |
1 | ||
| 86285-53070 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53040 |
GSE22 |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86286-53090 |
GSE2# |
1 | ||
| 86286-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53040 |
GSE22 |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 86286-53090 |
GSE2# |
1 | ||
| 86286-53050 |
GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
1 | ||
| 86286-53080 |
GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-53010 |
GSE22 |
1 | ||
| 86287-53010 |
GSE2# |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-53010 |
GSE22 |
1 | ||
| 86287-53010 |
GSE2# |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
