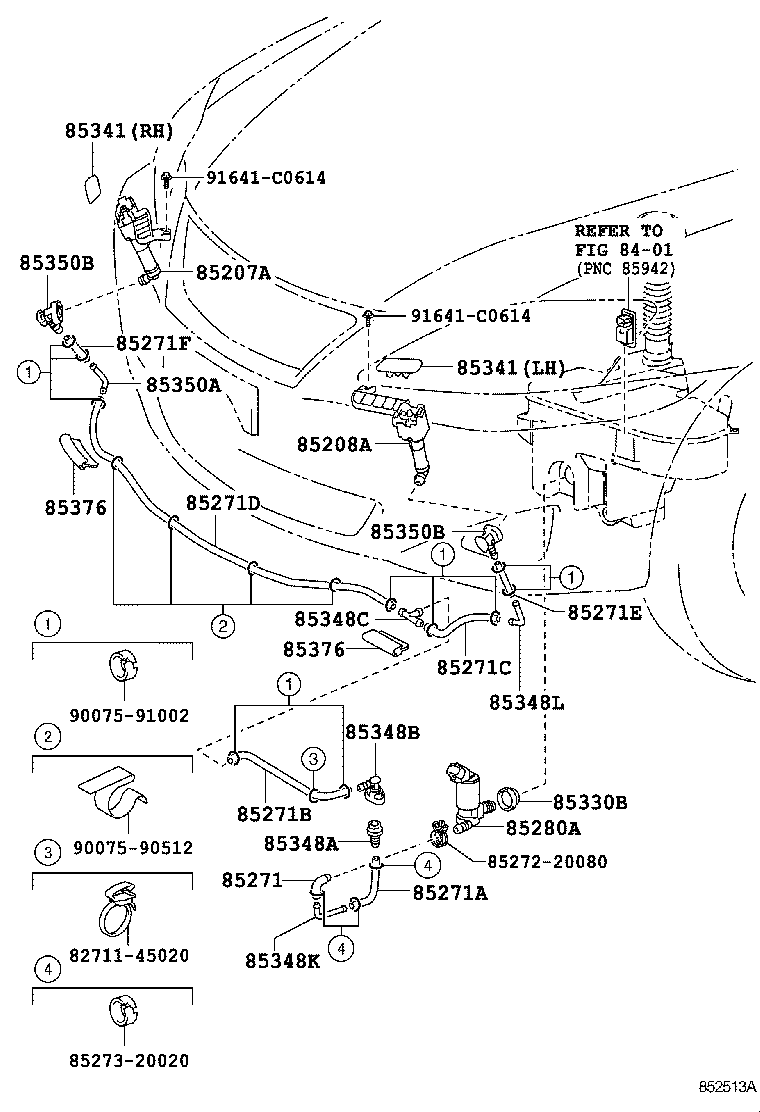

GSE22L-AETLKV (2010)
Toyota Lexus Is250/300
(1008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-53040 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85207-53090 |
GSE2# |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-53040 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85208-53090 |
GSE2# |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85375-20190 |
GSE22 L=90,HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90075-15047 |
GSE2# |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85275-12050 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85275-42020 |
GSE2# |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15017 |
GSE22 L=120,HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90075-15079 |
GSE2# L=320 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15064 |
GSE2# L=200 |
1 | ||
| 90075-15047 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90075-15017 |
GSE22 L=120,HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90075-15078 |
GSE2# L=1200 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90075-15075 |
GSE22 L=160,HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90075-15063 |
GSE2# L=50 |
1 | ||
| 85271F - HOSE, HEADLAMP CLEANER, NO.7 | ||||
| 90075-15063 |
GSE2# L=50 |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-30040 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85280-30040 |
GSE2# |
1 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90099-32089 |
GSE2# |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85382-53040C0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,202,LH |
1 | ||
| 85381-53080E0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4P7,RH |
1 | ||
| 85382-53040E0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4P7,LH |
1 | ||
| 85382-53040J0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DARK BLUE MC.,8P8,LH |
1 | ||
| 85381-53080A0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,062,RH |
1 | ||
| 85381-53080J0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DARK BLUE MC.,8P8,RH |
1 | ||
| 85381-53080C0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,202,RH |
1 | ||
| 85381-53080B0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.GRAY MC.,1G0,RH |
1 | ||
| 85381-53080J2 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,LT.BLUE ME.,8R6,RH |
1 | ||
| 85382-53040B1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,SILVER M.M.,1G1,LH |
1 | ||
| 85381-53080B1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,SILVER M.M.,1G1,RH |
1 | ||
| 85382-53040B0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.GRAY MC.,1G0,LH |
1 | ||
| 85382-53040A0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,062,LH |
1 | ||
| 85382-53040G1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,MD.GREEN M.M.,6U3,LH |
1 | ||
| 85381-53080A1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLUISH PEARL CS.,074,RH |
1 | ||
| 85382-53040J2 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,LT.BLUE ME.,8R6,LH |
1 | ||
| 85382-53040D0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,RED MC.CS.,3R1,LH |
1 | ||
| 85381-53080G1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,MD.GREEN M.M.,6U3,RH |
1 | ||
| 85382-53040A1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLUISH PEARL CS.,074,LH |
1 | ||
| 85381-53080D0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,RED MC.CS.,3R1,RH |
1 | ||
| 85044-53040A0 |
GSE2# BLUISH PEARL CS.,074,RH |
1 | ||
| 85044-53040C0 |
GSE2# BLACK,212,RH |
1 | ||
| 85044-53040B2 |
GSE2# DK.GRAY MC.,1G0,RH |
1 | ||
| 85045-53040B2 |
GSE2# DK.GRAY MC.,1G0,LH |
1 | ||
| 85044-53040A1 |
GSE2# WHITE PEARL CS.,077,RH |
1 | ||
| 85044-53040D0 |
GSE2# RED MC.CS.,3R1,RH |
1 | ||
| 85044-53040B0 |
GSE2# SILVER M.M.,1G1,RH |
1 | ||
| 85044-53040C1 |
GSE2# STARLIGHT BLACK GF.,217,RH |
1 | ||
| 85044-53040J1 |
GSE2# SILVERY BLUE ME.,8U9,RH |
1 | ||
| 85044-53040J2 |
GSE2# LAPIS LAZULI MC.,8V3,RH |
1 | ||
| 85045-53040A0 |
GSE2# BLUISH PEARL CS.,074,LH |
1 | ||
| 85045-53040C1 |
GSE2# STARLIGHT BLACK GF.,217,LH |
1 | ||
| 85045-53040J2 |
GSE2# LAPIS LAZULI MC.,8V3,LH |
1 | ||
| 85045-53040D0 |
GSE2# RED MC.CS.,3R1,LH |
1 | ||
| 85045-53040B0 |
GSE2# SILVER M.M.,1G1,LH |
1 | ||
| 85045-53040J1 |
GSE2# SILVERY BLUE ME.,8U9,LH |
1 | ||
| 85044-53040E1 |
GSE2# FIRE AGATE M.M.,4V3,RH |
1 | ||
| 85044-53040J0 |
GSE2#..GCC BLUE ME.,8U1,RH |
1 | ||
| 85045-53040A1 |
GSE2# WHITE PEARL CS.,077,LH |
1 | ||
| 85044-53040K0 |
GSE2# CATTLEYA M.M.,9AL,RH |
1 | ||
| 85045-53040J0 |
GSE2#..GCC BLUE ME.,8U1,LH |
1 | ||
| 85045-53040K0 |
GSE2# CATTLEYA M.M.,9AL,LH |
1 | ||
| 85045-53040E1 |
GSE2# FIRE AGATE M.M.,4V3,LH |
1 | ||
| 85045-53040C0 |
GSE2# BLACK,212,LH |
1 | ||
| 85045-53040B1 |
GSE2# MERCURY GRAY MC.,1H9,LH |
1 | ||
| 85044-53040B1 |
GSE2# MERCURY GRAY MC.,1H9,RH |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85382-53040C0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,202,LH |
1 | ||
| 85381-53080E0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4P7,RH |
1 | ||
| 85382-53040E0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4P7,LH |
1 | ||
| 85382-53040J0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DARK BLUE MC.,8P8,LH |
1 | ||
| 85381-53080A0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,062,RH |
1 | ||
| 85381-53080J0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DARK BLUE MC.,8P8,RH |
1 | ||
| 85381-53080C0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,202,RH |
1 | ||
| 85381-53080B0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.GRAY MC.,1G0,RH |
1 | ||
| 85381-53080J2 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,LT.BLUE ME.,8R6,RH |
1 | ||
| 85382-53040B1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,SILVER M.M.,1G1,LH |
1 | ||
| 85381-53080B1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,SILVER M.M.,1G1,RH |
1 | ||
| 85382-53040B0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.GRAY MC.,1G0,LH |
1 | ||
| 85382-53040A0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,062,LH |
1 | ||
| 85382-53040G1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,MD.GREEN M.M.,6U3,LH |
1 | ||
| 85381-53080A1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLUISH PEARL CS.,074,RH |
1 | ||
| 85382-53040J2 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,LT.BLUE ME.,8R6,LH |
1 | ||
| 85382-53040D0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,RED MC.CS.,3R1,LH |
1 | ||
| 85381-53080G1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,MD.GREEN M.M.,6U3,RH |
1 | ||
| 85382-53040A1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLUISH PEARL CS.,074,LH |
1 | ||
| 85381-53080D0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,RED MC.CS.,3R1,RH |
1 | ||
| 85044-53040A0 |
GSE2# BLUISH PEARL CS.,074,RH |
1 | ||
| 85044-53040C0 |
GSE2# BLACK,212,RH |
1 | ||
| 85044-53040B2 |
GSE2# DK.GRAY MC.,1G0,RH |
1 | ||
| 85045-53040B2 |
GSE2# DK.GRAY MC.,1G0,LH |
1 | ||
| 85044-53040A1 |
GSE2# WHITE PEARL CS.,077,RH |
1 | ||
| 85044-53040D0 |
GSE2# RED MC.CS.,3R1,RH |
1 | ||
| 85044-53040B0 |
GSE2# SILVER M.M.,1G1,RH |
1 | ||
| 85044-53040C1 |
GSE2# STARLIGHT BLACK GF.,217,RH |
1 | ||
| 85044-53040J1 |
GSE2# SILVERY BLUE ME.,8U9,RH |
1 | ||
| 85044-53040J2 |
GSE2# LAPIS LAZULI MC.,8V3,RH |
1 | ||
| 85045-53040A0 |
GSE2# BLUISH PEARL CS.,074,LH |
1 | ||
| 85045-53040C1 |
GSE2# STARLIGHT BLACK GF.,217,LH |
1 | ||
| 85045-53040J2 |
GSE2# LAPIS LAZULI MC.,8V3,LH |
1 | ||
| 85045-53040D0 |
GSE2# RED MC.CS.,3R1,LH |
1 | ||
| 85045-53040B0 |
GSE2# SILVER M.M.,1G1,LH |
1 | ||
| 85045-53040J1 |
GSE2# SILVERY BLUE ME.,8U9,LH |
1 | ||
| 85044-53040E1 |
GSE2# FIRE AGATE M.M.,4V3,RH |
1 | ||
| 85044-53040J0 |
GSE2#..GCC BLUE ME.,8U1,RH |
1 | ||
| 85045-53040A1 |
GSE2# WHITE PEARL CS.,077,LH |
1 | ||
| 85044-53040K0 |
GSE2# CATTLEYA M.M.,9AL,RH |
1 | ||
| 85045-53040J0 |
GSE2#..GCC BLUE ME.,8U1,LH |
1 | ||
| 85045-53040K0 |
GSE2# CATTLEYA M.M.,9AL,LH |
1 | ||
| 85045-53040E1 |
GSE2# FIRE AGATE M.M.,4V3,LH |
1 | ||
| 85045-53040C0 |
GSE2# BLACK,212,LH |
1 | ||
| 85045-53040B1 |
GSE2# MERCURY GRAY MC.,1H9,LH |
1 | ||
| 85044-53040B1 |
GSE2# MERCURY GRAY MC.,1H9,RH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85357-42070 |
GSE2# |
1 | ||
| 85278-20590 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85279-42010 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90075-17001 |
GSE2# |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85352-12010 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
1 | ||
| 90075-17003 |
GSE2# |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85379-22080 |
GSE2# |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17004 |
GSE2# |
1 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17004 |
GSE2# |
1 | ||
| 85350B - JOINT, HEADLAMP CLEANER ELBOW, NO.4 | ||||
| 90075-17001 |
GSE2# |
2 | ||
| 85350B - JOINT, HEADLAMP CLEANER ELBOW, NO.4 | ||||
| 90075-17001 |
GSE2# |
2 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85275-53060 |
GSE2# |
2 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85275-53060 |
GSE2# |
2 | ||
| Common parts | ||||
| 82711-45020 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 90075-90512 | ||||
| 90075-91002 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
