GSE22L-AETLKV (2010)

Toyota Lexus Is250/300

Production Aug 2010 - Apr 2013
Engine 3GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )GCC

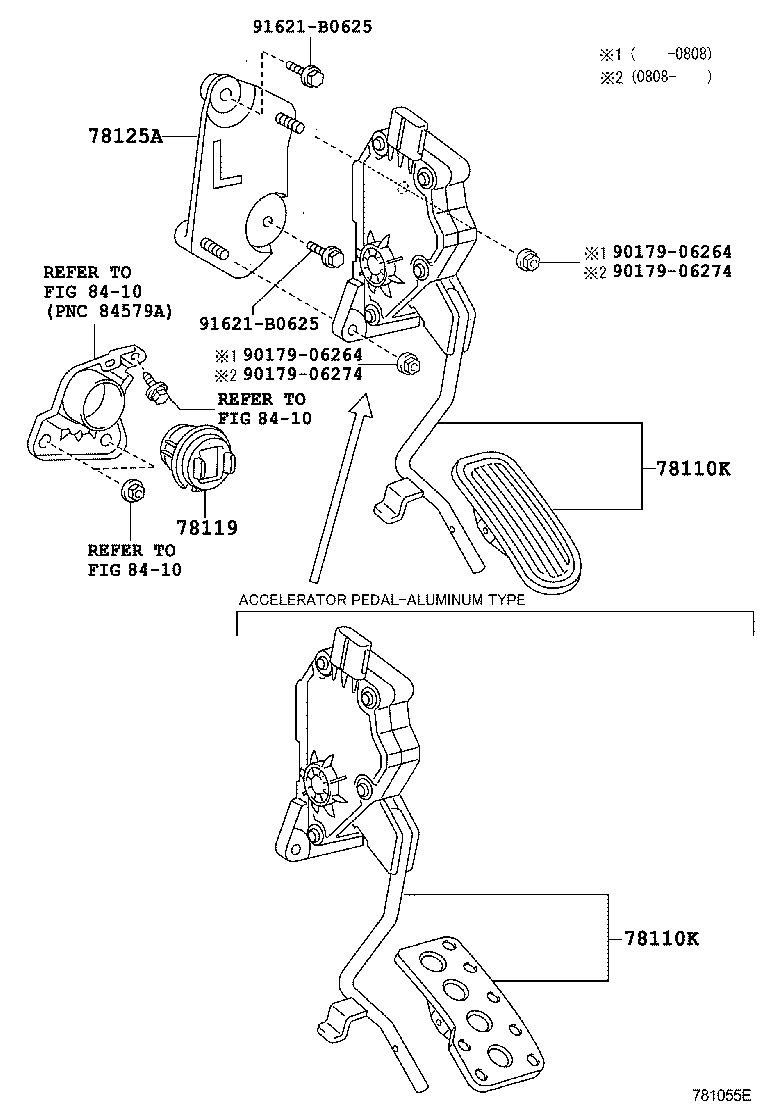

Click highlighted areas on diagram

diagram 78110K 78110K 78119 78125A 8410 8410 8410 9017906264 9017906264 9017906274 9017906274 91621B0625 91621B0625
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-53110

GSE2#..GCC

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53120

GSE2#..GCC

 1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-53110

GSE2#..GCC

ACCELERATOR PEDAL-ALUMINUM TYPE

 1
78110-53120

GSE2#..GCC

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-48010

GSE22

 1
78119-48010

GSE22

 1
78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2
78125-53010

GSE2#..GCC

 1
Common parts
90179-06264
90179-06274
91621-B0625
Linked diagrams
8410
