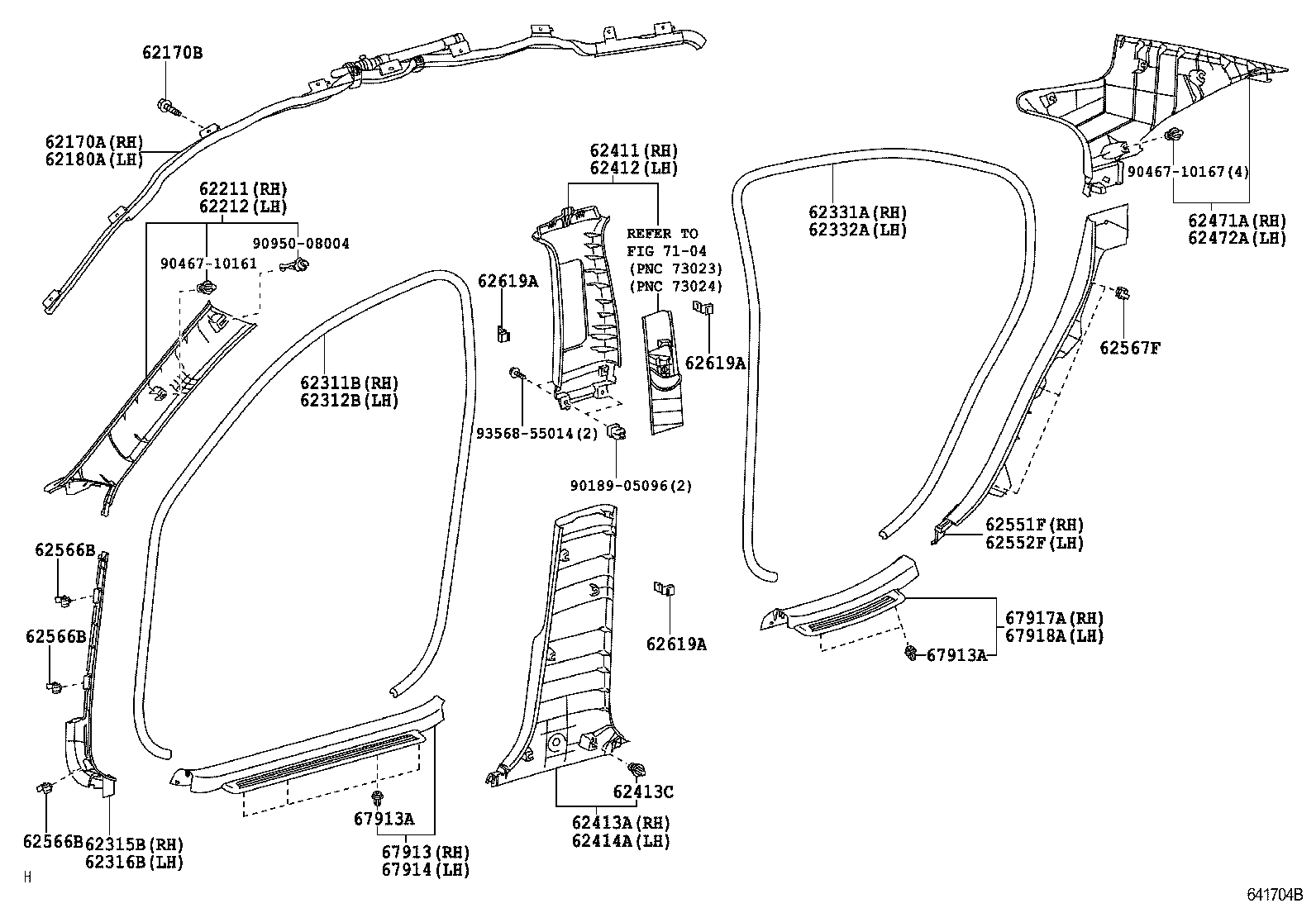

GSE22L-AETLKV (2010)
Toyota Lexus Is250/300
(0604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-53020 |
GSE2# |
1 | ||
| 62170-53020 |
GSE22 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GSE22 |
18 | ||
| 90119-06869 |
GSE2# |
18 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-53020 |
GSE22 |
1 | ||
| 62180-53020 |
GSE2# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-53040A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62211-53040B0 |
GSE22 LT.GRAY,TRIM1#,2# |
1 | ||
| 62211-53050A2 |
GSE22..GCC ECRU,TRIM0#,4# |
1 | ||
| 62211-53050C0 |
GSE2#..GCC BLACK,TRIM22 |
1 | ||
| 62211-53050B1 |
GSE22..GCC LT.GRAY,TRIM1#,21,23 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-53040A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62212-53040B0 |
GSE22 LT.GRAY,TRIM1#,2# |
1 | ||
| 62212-53050A2 |
GSE22..GCC ECRU,TRIM0#,4# |
1 | ||
| 62212-53050B1 |
GSE22..GCC LT.GRAY,TRIM1#,21,23 |
1 | ||
| 62212-53050C0 |
GSE2#..GCC BLACK,TRIM22 |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-53030 |
GSE22 |
1 | ||
| 62311-53031 |
GSE2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-53030 |
GSE22 |
1 | ||
| 62312-53031 |
GSE2# |
1 | ||
| 62315B - COVER, FRONT DOOR OPENING TRIM, RH | ||||
| 62315-53010A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62315-53010C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 62315-53010C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=2XXXXXX |
1 | ||
| 62315-53030C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=5XXXXXX |
1 | ||
| 62315-53010A1 |
GSE2#..GCC ECRU,TRIM0#,FRAME NO.=2XXXXXX |
1 | ||
| 62315-53030A0 |
GSE2#..GCC ECRU,TRIM0#,FRAME NO.=5XXXXXX |
1 | ||
| 62315-53010C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2#,FRAME NO.=2XXXXXX |
1 | ||
| 62315-53030C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 62316B - COVER, FRONT DOOR OPENING TRIM, LH | ||||
| 62316-53010A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62316-53010C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 62316-53010A1 |
GSE2#..GCC ECRU,TRIM0#,FRAME NO.=2XXXXXX |
1 | ||
| 62316-53030A0 |
GSE2#..GCC ECRU,TRIM0#,FRAME NO.=5XXXXXX |
1 | ||
| 62316-53010C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=2XXXXXX |
1 | ||
| 62316-53030C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=5XXXXXX |
1 | ||
| 62316-53010C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2#,FRAME NO.=2XXXXXX |
1 | ||
| 62316-53030C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2#,FRAME NO.=5XXXXXX |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-53050 |
GSE22 |
1 | ||
| 62331-53051 |
GSE2# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-53050 |
GSE22 |
1 | ||
| 62332-53051 |
GSE2# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-53060B0 |
GSE22 LT.GRAY,TRIM1#,2# |
1 | ||
| 62411-53060A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62411-53071A1 |
GSE22..GCC ECRU,TRIM0#,4# |
1 | ||
| 62411-53071B0 |
GSE22..GCC LT.GRAY,TRIM1#,21,23 |
1 | ||
| 62411-53071C0 |
GSE2#..GCC BLACK,TRIM22 |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-53060B0 |
GSE22 LT.GRAY,TRIM1#,2# |
1 | ||
| 62412-53060A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62412-53071B0 |
GSE22..GCC LT.GRAY,TRIM1#,21,23 |
1 | ||
| 62412-53071A1 |
GSE22..GCC ECRU,TRIM0#,4# |
1 | ||
| 62412-53071C0 |
GSE2#..GCC BLACK,TRIM22 |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 62413-53020A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62413-53020A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=2XXXXXX |
1 | ||
| 62413-53030C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=5XXXXXX |
1 | ||
| 62413-53020C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=2XXXXXX |
1 | ||
| 62413-53030A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=5XXXXXX |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GSE2# |
10 | ||
| 90467-10161 |
GSE22 |
10 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 62414-53020A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62414-53020A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=2XXXXXX |
1 | ||
| 62414-53020C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=2XXXXXX |
1 | ||
| 62414-53030C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=5XXXXXX |
1 | ||
| 62414-53030A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=5XXXXXX |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-53030B0 |
GSE22 LT.GRAY,TRIM1#,2# |
1 | ||
| 62471-53030A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62471-53040A1 |
GSE22..GCC ECRU,TRIM0#,4# |
1 | ||
| 62471-53040B0 |
GSE2# LT.GRAY,TRIM1#,2# |
1 | ||
| 62471-53051C1 |
GSE2#..GCC F PACKAGE,BLACK,TRIM2# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-53030A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62472-53040B0 |
GSE2# LT.GRAY,TRIM1#,2# |
1 | ||
| 62472-53051C1 |
GSE2#..GCC F PACKAGE,BLACK,TRIM2# |
1 | ||
| 62472-53040A1 |
GSE22..GCC ECRU,TRIM0#,4# |
1 | ||
| 62472-53030B0 |
GSE22 LT.GRAY,TRIM1#,2# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-53020A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62551-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 62551-53020A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=2XXXXXX |
1 | ||
| 62551-53030A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=5XXXXXX |
1 | ||
| 62551-53020C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=2XXXXXX |
1 | ||
| 62551-53030C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=5XXXXXX |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-53020A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 62552-53020A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=2XXXXXX |
1 | ||
| 62552-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 62552-53030C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=5XXXXXX |
1 | ||
| 62552-53020C0 |
GSE22..GCC BLACK,TRIM1#,2#,4#,FRAME NO.=2XXXXXX |
1 | ||
| 62552-53030A1 |
GSE22..GCC ECRU,TRIM0#,FRAME NO.=5XXXXXX |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
GSE22 |
6 | ||
| 62566-30010 |
GSE2# |
6 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
GSE22 |
6 | ||
| 62566-30010 |
GSE2# |
6 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
GSE22 |
6 | ||
| 62566-30010 |
GSE2# |
6 | ||
| 62567F - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62566-30010 |
GSE22 |
6 | ||
| 62566-30010 |
GSE2# |
6 | ||
| 62619A - PLATE, SIDE TRIM SET | ||||
| 62619-30030 |
GSE22 |
6 | ||
| 62619-30030 |
GSE2# |
6 | ||
| 62619A - PLATE, SIDE TRIM SET | ||||
| 62619-30030 |
GSE22 |
6 | ||
| 62619-30030 |
GSE2# |
6 | ||
| 62619A - PLATE, SIDE TRIM SET | ||||
| 62619-30030 |
GSE22 |
6 | ||
| 62619-30030 |
GSE2# |
6 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-53030A0 |
GSE22 LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 67910-53030C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 67913-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 67913-53020A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 67910-53050C0 |
GSE22..GCC PHILIPPINE SPEC,BLACK,TRIM1#,2# |
1 | ||
| 67910-53050A1 |
GSE22..GCC PHILIPPINE SPEC,ECRU,TRIM0# |
1 | ||
| 67910-53080C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 67910-53120C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2# |
1 | ||
| 67910-53080A1 |
GSE2#..GCC ECRU,TRIM0# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10162 |
GSE22 |
12 | ||
| 90467-10162 |
GSE2# |
12 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10162 |
GSE22 |
12 | ||
| 90467-10162 |
GSE2# |
12 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-53030A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 67920-53030A0 |
GSE22 LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 67914-53030C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 67920-53030C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 67920-53050A1 |
GSE22..GCC PHILIPPINE SPEC,ECRU,TRIM0# |
1 | ||
| 67920-53050C0 |
GSE22..GCC PHILIPPINE SPEC,BLACK,TRIM1#,2# |
1 | ||
| 67920-53080C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 67920-53080A1 |
GSE2#..GCC ECRU,TRIM0# |
1 | ||
| 67920-53110C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-53020C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 67917-53020A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 67917-53020C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 67930-53020A0 |
GSE22 LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 67930-53040C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 67930-53040A1 |
GSE2#..GCC ECRU,TRIM0# |
1 | ||
| 67930-53040C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-53030C0 |
GSE22 BLACK,TRIM1#,2# |
1 | ||
| 67940-53020A0 |
GSE22 LUXURY PACKAGE,IVORY,TRIM0# |
1 | ||
| 67940-53020C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 67918-53030A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 67940-53040C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 67940-53040C0 |
GSE22..GCC F PACKAGE,BLACK,TRIM2# |
1 | ||
| 67940-53040A1 |
GSE2#..GCC ECRU,TRIM0# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90950-08004 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7104 | ||||
