GSE22L-AETLKV (2010)
Toyota Lexus Is250/300

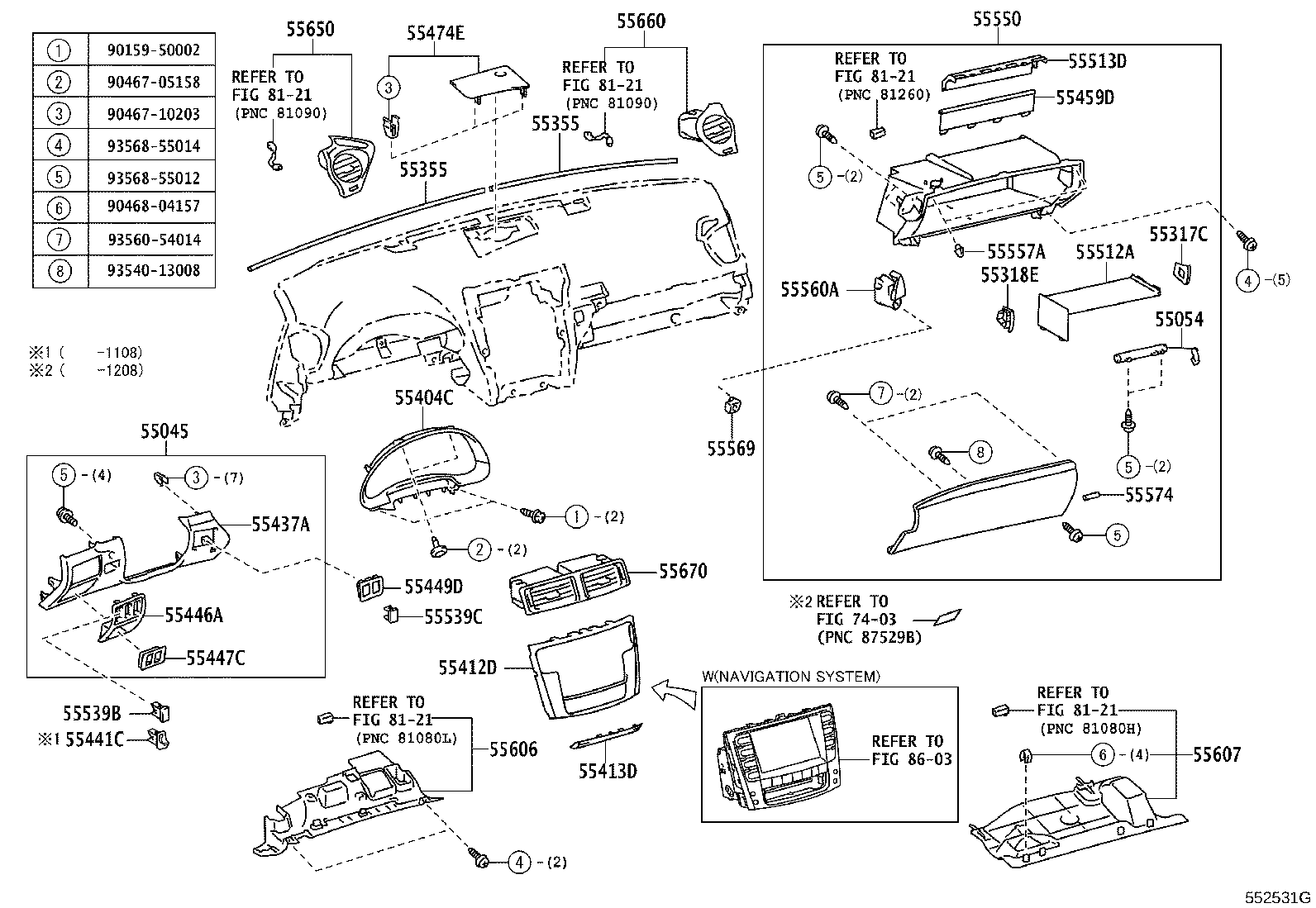

ILLUST NO. 2 OF 2(1008- )GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-53030B0 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55045-53030A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55045-53030C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55045-53063C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55045-53063B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55045-53063A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55045-53062B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55045-53062C0 |
GSE2#..GCC BLACK,TRIM2# |
1 | ||
| 55045-53062A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-53020 |
GSE2#..GCC |
1 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-53050 |
GSE2# |
1 | ||
| 55317-53050 |
GSE22 |
1 | ||
| 55317-53060 |
GSE2# |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-53030 |
GSE22 |
1 | ||
| 55318-53030 |
GSE2# |
1 | ||
| 55318-53020 |
GSE2# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GSE22 |
2 | ||
| 55355-30100 |
GSE2# |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GSE22 |
2 | ||
| 55355-30100 |
GSE2# |
2 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-53050 |
GSE2#..GCC |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-53080 |
GSE22 |
1 | ||
| 55405-53100 |
GSE2# |
1 | ||
| 55405-53100 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 55405-53100 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 55405-53100 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 55405-53100 |
GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
1 | ||
| 55405-53100 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 55405-53100 |
GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
1 | ||
| 55405-53100 |
GSE2# W/O(NAVIGATION SYSTEM) |
1 | ||
| 55405-53080 |
GSE22 W/O(NAVIGATION SYSTEM) |
1 | ||
| 55405-53100 |
GSE22..GCC BRAZIL SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 55405-53100 |
GSE22..GCC W/O(NAVIGATION SYSTEM) |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-53051 |
GSE2# |
1 | ||
| 55413-53050 |
GSE22 |
1 | ||
| 55413-53080 |
GSE2# AUDIO-AM/FM DVD 13SPEAKER |
1 | ||
| 55413-53080 |
GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-53022B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55437-53022A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55437-53022C0 |
GSE2#..GCC BLACK,TRIM2# |
1 | ||
| 55437-53023A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55437-53023B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55437-53023C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-53050A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55441-53050B1 |
GSE2# LT.GRAY,TRIM1# |
1 | ||
| 55441-53050C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-53032C0 |
GSE2#..GCC BLACK,TRIM2# |
1 | ||
| 55446-53033A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55446-53032A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55446-53033C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55446-53032B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55446-53033B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-53010C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55447-53010B0 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55447-53010A0 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55447-53041A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55447-53041C0 |
GSE2#..GCC BLACK,TRIM2# |
1 | ||
| 55447-53041B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55447-53042A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55447-53042C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55447-53042B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-53021A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55449-53021B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55449-53040B0 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55449-53040A0 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55449-53021C0 |
GSE2#..GCC BLACK,TRIM2# |
1 | ||
| 55449-53040C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
GSE22 |
1 | ||
| 55459-30060 |
GSE2# |
1 | ||
| 55459-48020 |
GSE2# |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-53060E0 |
GSE2#..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55474-53060C0 |
GSE2#..GCC AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55474-53050C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55474-53060C0 |
GSE2#..GCC AUDIO-AM/FM DVD 5.1CH 14SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55474-53050E0 |
GSE2#..GCC ORCHID BROWN,TRIM0# |
1 | ||
| 55474-53060E0 |
GSE2#..GCC AUDIO-AM/FM DVD 5.1CH 14SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-53020 |
GSE2#..GCC |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-53020 |
GSE2#..GCC |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-44010C0 |
GSE22 BLACK,TRIM2# |
1 | ||
| 55539-44010B5 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,FROSTY GRAY,TRIM1# |
1 | ||
| 55539-44010A1 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,IVORY,TRIM0# |
1 | ||
| 55539-44010C0 |
GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,TRIM2# |
1 | ||
| 55539-44010A1 |
GSE22 IVORY,TRIM0# |
1 | ||
| 55539-44010B5 |
GSE22 FROSTY GRAY,TRIM1# |
1 | ||
| 55539-44010A2 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55539-44010A2 |
GSE22..GCC SUN SHADE-WITH,ECRU,TRIM0# |
1 | ||
| 55539-44010B7 |
GSE2#..GCC SUN SHADE-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55539-44010B7 |
GSE2# LT.GRAY,TRIM1# |
1 | ||
| 55539-44010C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55539-44010C0 |
GSE22..GCC SUN SHADE-WITH,BLACK,TRIM2#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060A6 |
GSE22 ECRU,TRIM0# |
1 | ||
| 55539-52060B3 |
GSE2# LT.GRAY,TRIM1# |
1 | ||
| 55539-52060C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-53092A0 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55550-53090C0 |
GSE2#..GCC BLACK,TRIM2# |
1 | ||
| 55550-53091C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55550-53091A0 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55550-53091B0 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55550-53090B0 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55550-53092C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55550-53090A0 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55550-53092B0 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30090 |
GSE2# |
2 | ||
| 55557-53030 |
GSE2# |
2 | ||
| 55557-53030 |
GSE22 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-53030C0 |
GSE22..GCC BLACK,TRIM2# |
1 | ||
| 55560-53030A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55560-53030C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55560-53030B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-53020B1 |
GSE2#..GCC LT.GRAY,TRIM1# |
1 | ||
| 55569-53020C0 |
GSE22..GCC BLACK,TRIM2#,4# |
1 | ||
| 55569-53020A1 |
GSE22..GCC ECRU,TRIM0# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-53010 |
GSE22 |
1 | ||
| 55574-53010 |
GSE2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-53031 |
GSE2#..GCC |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-53030 |
GSE2#..GCC |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-53060E0 |
GSE2#..GCC ORCHID BROWN,TRIM0# |
1 | ||
| 55650-53060C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-53060E0 |
GSE2#..GCC ORCHID BROWN,TRIM0# |
1 | ||
| 55660-53060C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-53010 |
GSE22 |
1 | ||
| 55670-53050E0 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 55670-53050C0 |
GSE22..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90467-05158 | ||||
| 90467-10203 | ||||
| 90468-04157 | ||||
| 93540-13008 | ||||
| 93560-54014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8603 | ||||
