GSE22L-AETLKV (2010)
Toyota Lexus Is250/300
Production
Aug 2010
-
Apr 2013
Engine
3GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0604- )

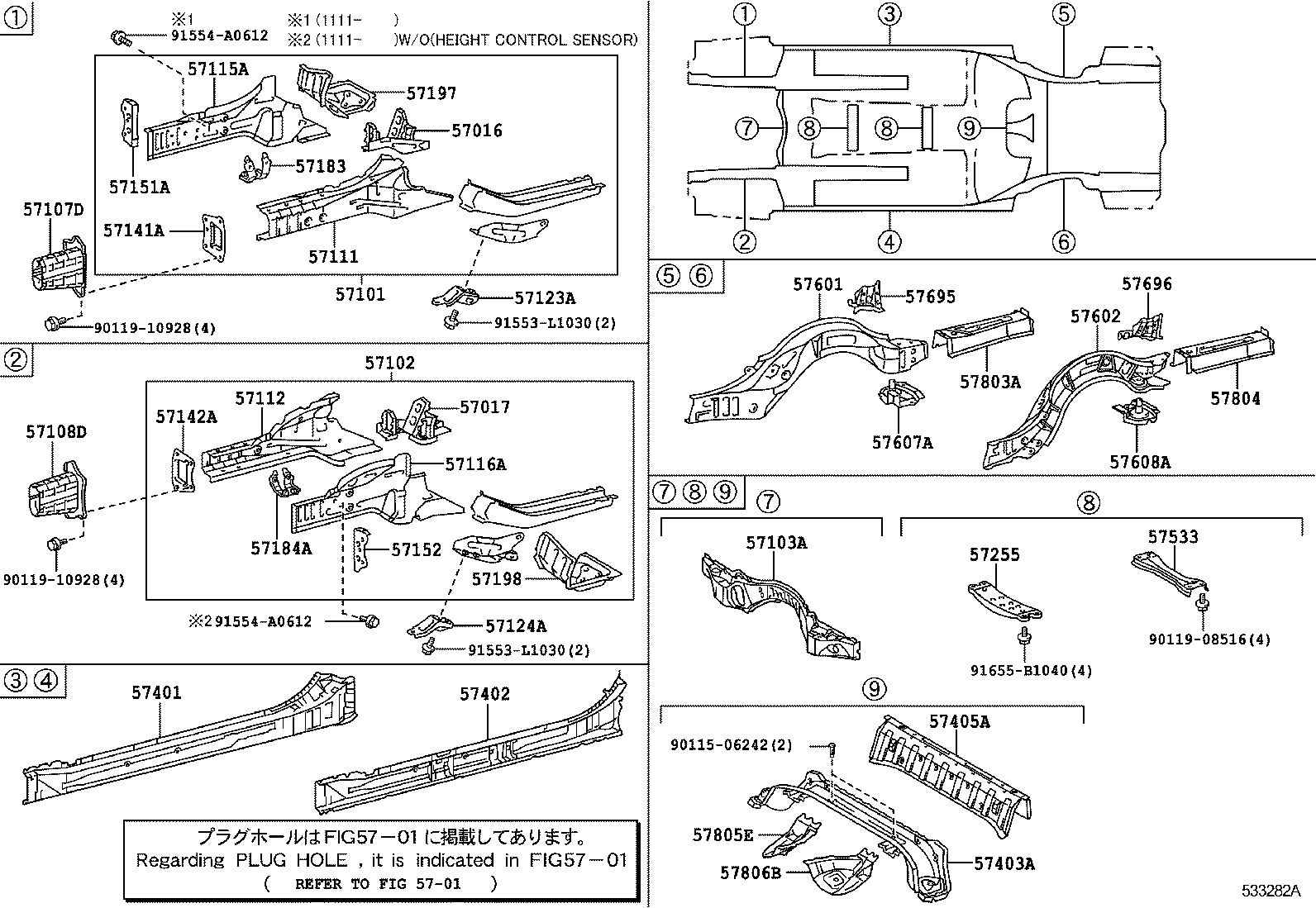

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-30040 |
GSE2# |
1 | ||
| 57016-30040 |
GSE22 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-30040 |
GSE22 |
1 | ||
| 57017-30040 |
GSE2# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-30163 |
GSE22 |
1 | ||
| 57101-30163 |
GSE2# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-30143 |
GSE22 |
1 | ||
| 57102-30143 |
GSE2# |
1 | ||
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-30030 |
GSE2#..GCC |
1 | ||
| 57103-30031 |
GSE2#..GCC |
1 | ||
| 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-53010 |
GSE22 |
1 | ||
| 57107-53010 |
GSE2# |
1 | ||
| 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-53011 |
GSE2# |
1 | ||
| 57108-53010 |
GSE22 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-30082 |
GSE22 |
1 | ||
| 57111-30082 |
GSE2# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-30082 |
GSE2# |
1 | ||
| 57112-30082 |
GSE22 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-30060 |
GSE2# |
1 | ||
| 57115-30060 |
GSE22 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-30030 |
GSE22 |
1 | ||
| 57116-30030 |
GSE2# |
1 | ||
| 57123A - REINFORCEMENT, STRUT BAR BRACKET, RH | ||||
| 57305-30010 |
GSE22 |
1 | ||
| 57305-30010 |
GSE2# |
1 | ||
| 57124A - REINFORCEMENT, STRUT BAR BRACKET, LH | ||||
| 57306-30010 |
GSE2# |
1 | ||
| 57306-30010 |
GSE22 |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-30040 |
GSE22 |
1 | ||
| 57141-30040 |
GSE2# |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-30040 |
GSE2# |
1 | ||
| 57142-30040 |
GSE22 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-30040 |
GSE22 |
1 | ||
| 57151-30040 |
GSE2# |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-30040 |
GSE22 |
1 | ||
| 57152-30040 |
GSE2# |
1 | ||
| 57183 - PLATE, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57183-30030 |
GSE2# |
1 | ||
| 57183-30030 |
GSE22 |
1 | ||
| 57184A - PLATE, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57184-30020 |
GSE22 |
1 | ||
| 57184-30020 |
GSE2# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-30040 |
GSE22 |
1 | ||
| 57197-30040 |
GSE2# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-30041 |
GSE22 |
1 | ||
| 57198-30041 |
GSE2# |
1 | ||
| 57255 - MEMBER, ENGINE REAR MOUNTING | ||||
| 57255-30080 |
GSE22 |
1 | ||
| 57255-30080 |
GSE22 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-53020 |
GSE22 |
1 | ||
| 57401-53021 |
GSE2# |
1 | ||
| 57401-53020 |
GSE2# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-53021 |
GSE2# |
1 | ||
| 57402-53020 |
GSE22 |
1 | ||
| 57402-53020 |
GSE2# |
1 | ||
| 57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | ||||
| 57430-30011 |
GSE2# |
1 | ||
| 57430-30011 |
GSE22 |
1 | ||
| 57430-30012 |
GSE2# |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-30050 |
GSE22 |
1 | ||
| 57405-30050 |
GSE2# |
1 | ||
| 57533 - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-30050 |
GSE22 |
1 | ||
| 57533-30050 |
GSE2# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-30917 |
GSE2# |
1 | ||
| 57601-30922 |
GSE2# |
1 | ||
| 57601-30917 |
GSE22 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-30928 |
GSE2# |
1 | ||
| 57602-30934 |
GSE2# |
1 | ||
| 57602-30928 |
GSE22 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-53020 |
GSE22 |
1 | ||
| 57607-53020 |
GSE2# |
1 | ||
| 57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-53030 |
GSE2# |
1 | ||
| 57608-53030 |
GSE22 |
1 | ||
| 57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH | ||||
| 57695-22020 |
GSE22 |
1 | ||
| 57695-53030 |
GSE2# |
1 | ||
| 57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH | ||||
| 57696-53020 |
GSE2# |
1 | ||
| 57696-22020 |
GSE22 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-53030 |
GSE22 |
1 | ||
| 57803-53030 |
GSE2# |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-53030 |
GSE2# |
1 | ||
| 57804-53030 |
GSE22 |
1 | ||
| 57805E - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-30060 |
GSE22 |
1 | ||
| 57805-30060 |
GSE2# |
1 | ||
| 57806B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-30050 |
GSE2# |
1 | ||
| 57806-30050 |
GSE22 |
1 | ||
| Common parts | ||||
| 90115-06242 | ||||
| 90119-08516 | ||||
| 90119-10928 | ||||
| 91553-L1030 | ||||
| 91554-A0612 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5701 | ||||
